Performance characteristics
The Caterpillar Cat®140G motor grader is a motor grader with a horsepower of 165 to 180, offering excellent power and torque. It is equipped with a reliable engine that provides outstanding power and torque, and features a robust chassis design that ensures high stability, making it suitable for operations in various terrain conditions.
Using the Cat C7.1 engine, hydraulic system and control device, the scraper can be moved precisely and consistently. The large Angle of the scraper, the optimized curvature of the scraper and the wide toothed throat gap enable the material to roll more freely along the scraper. Furthermore, the similar design of the SG14 motor grader (such as a larger blade cutting Angle, etc.) indicates that it performs well in material control and is suitable for handling dry materials and clay.

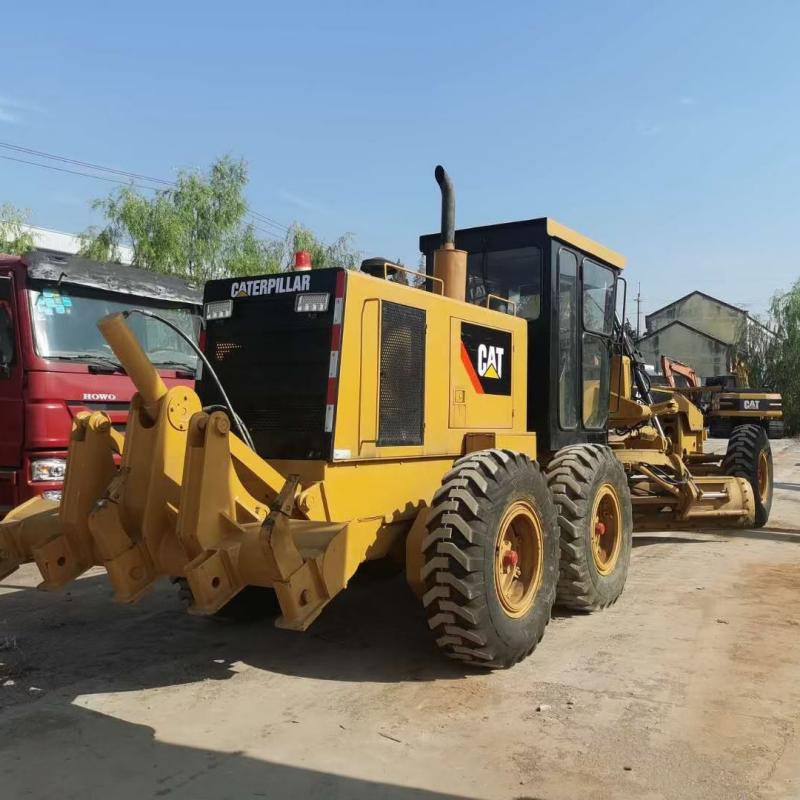

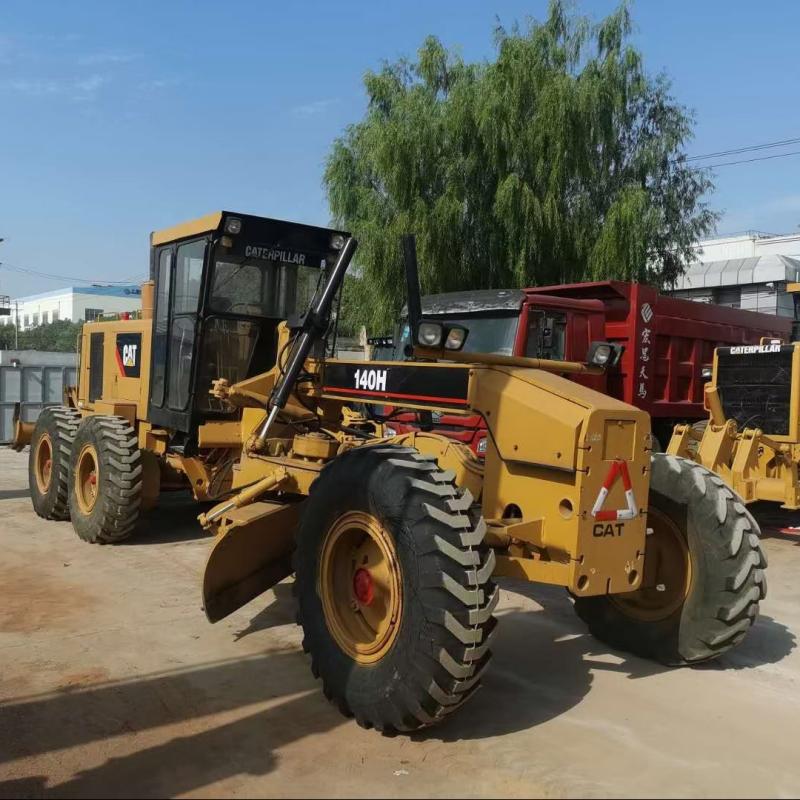

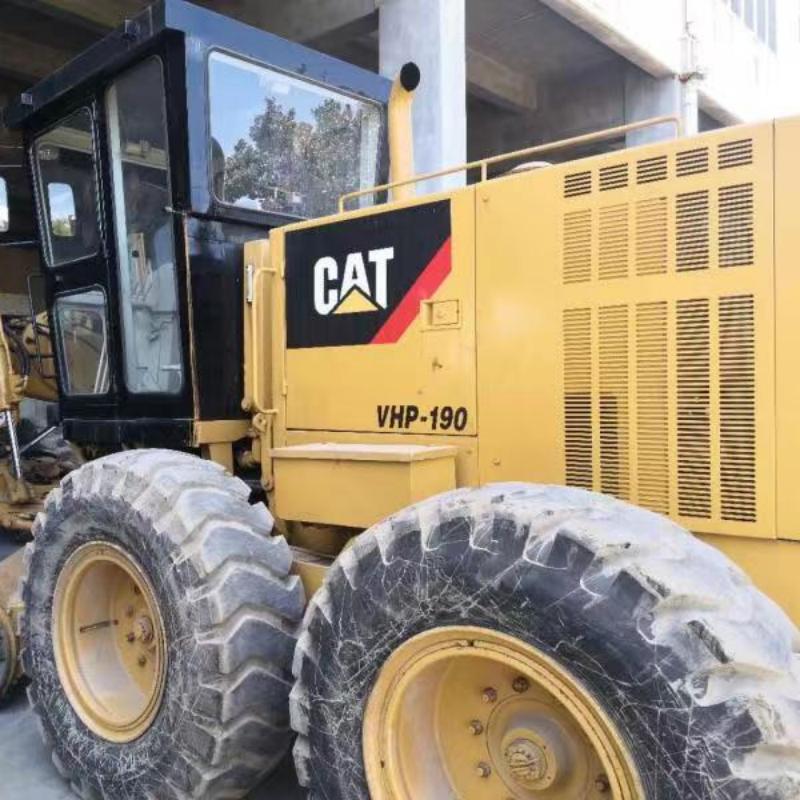

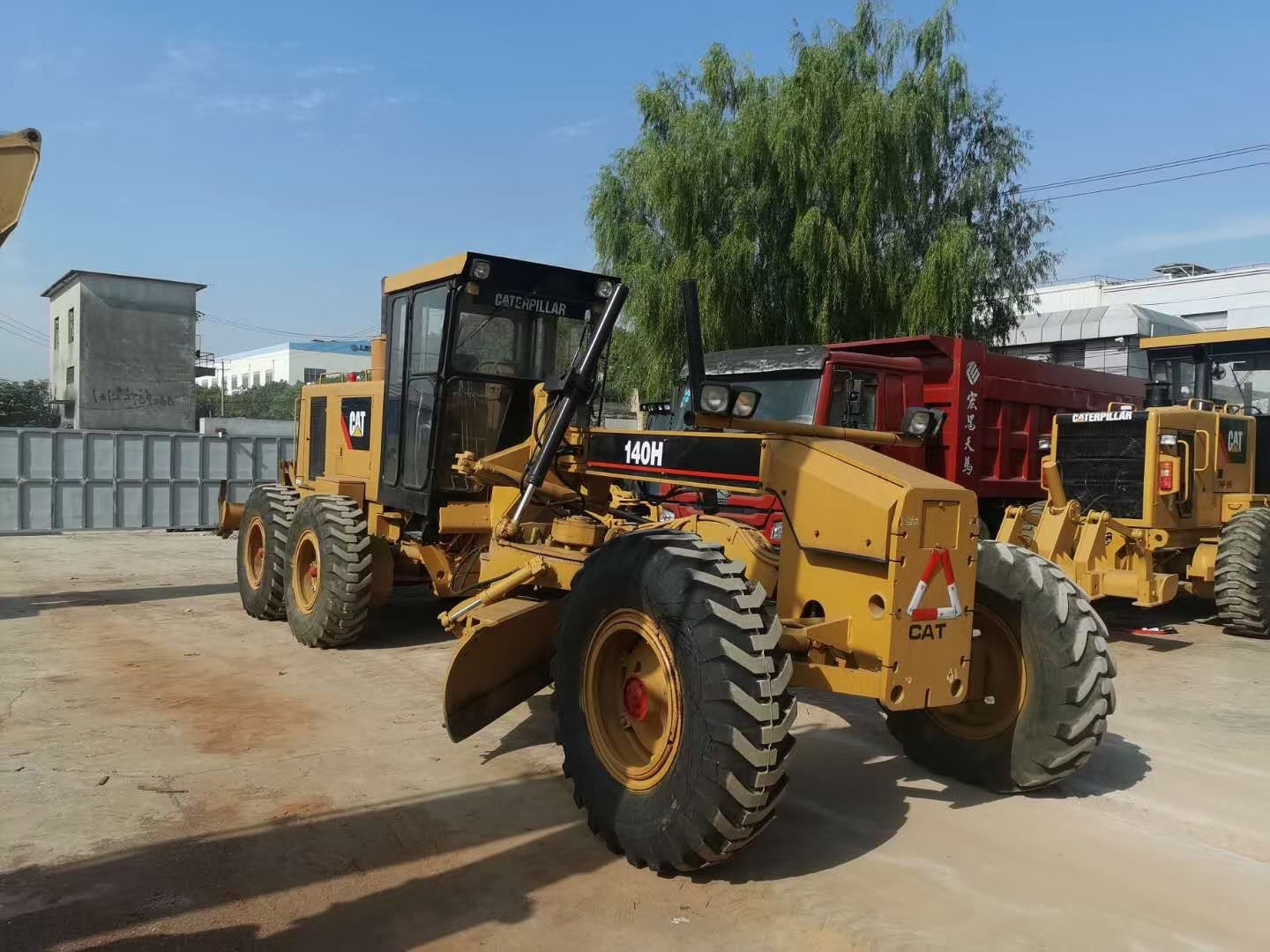

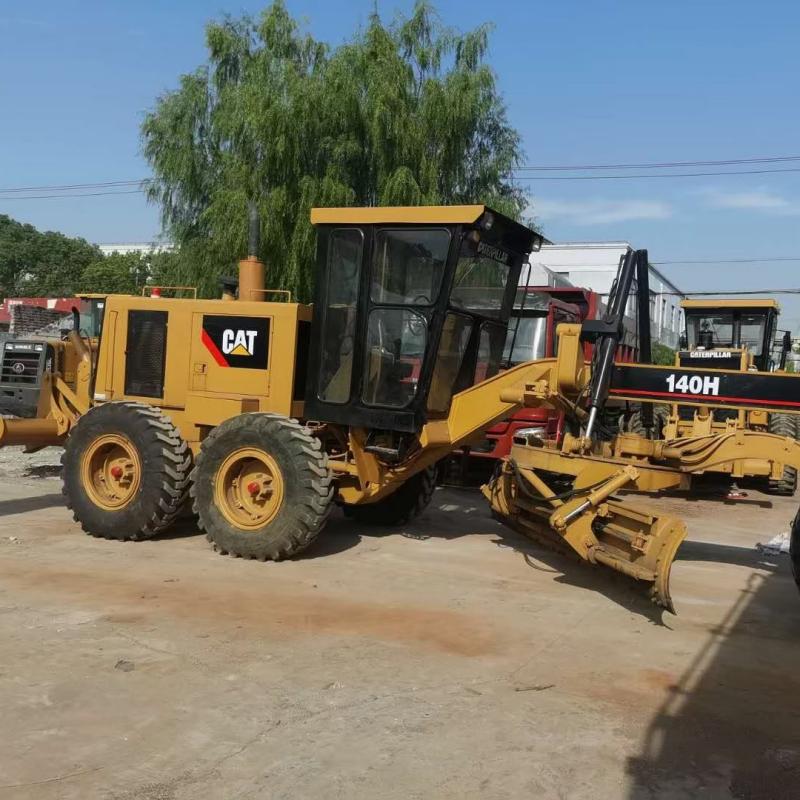

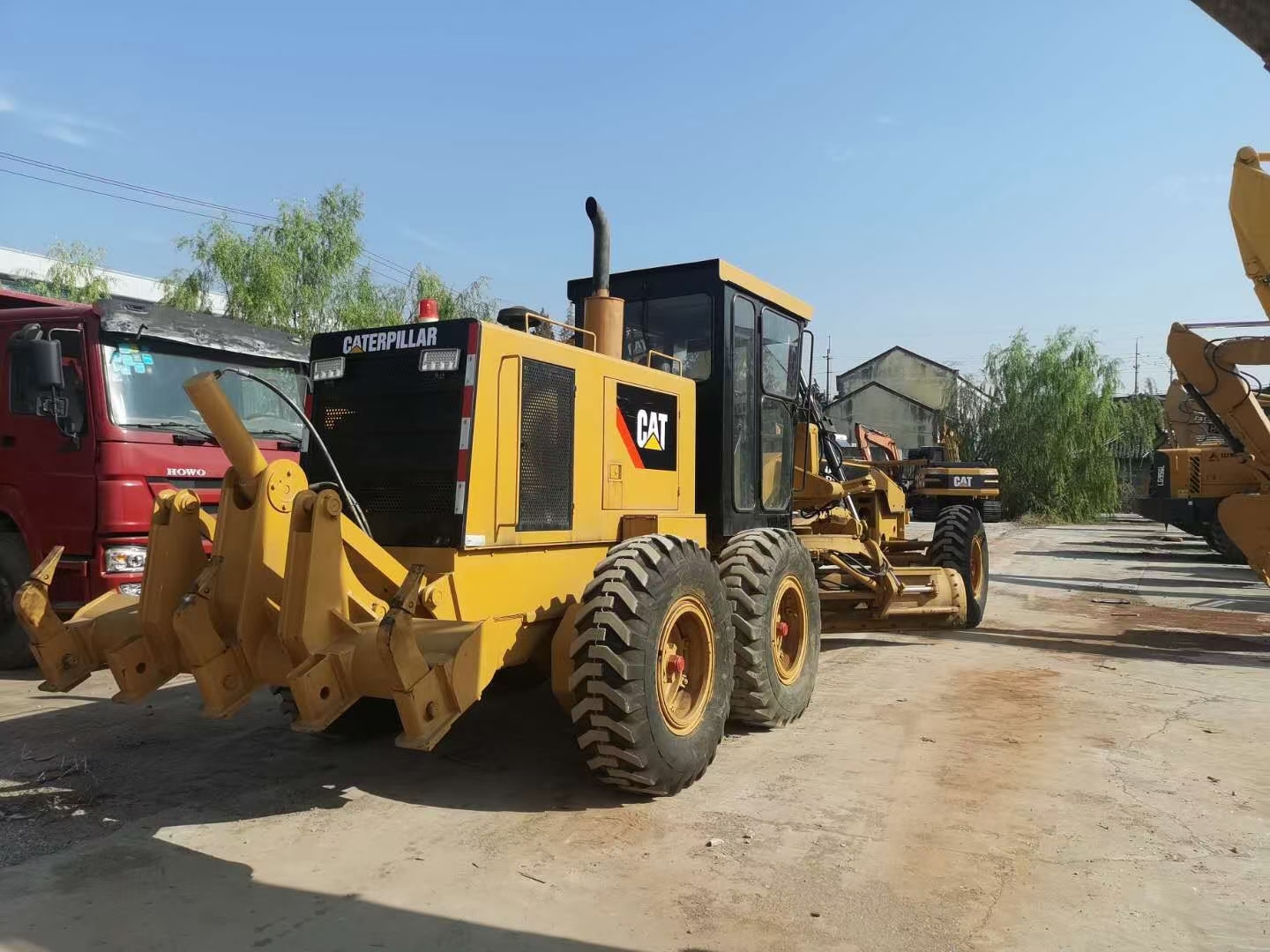

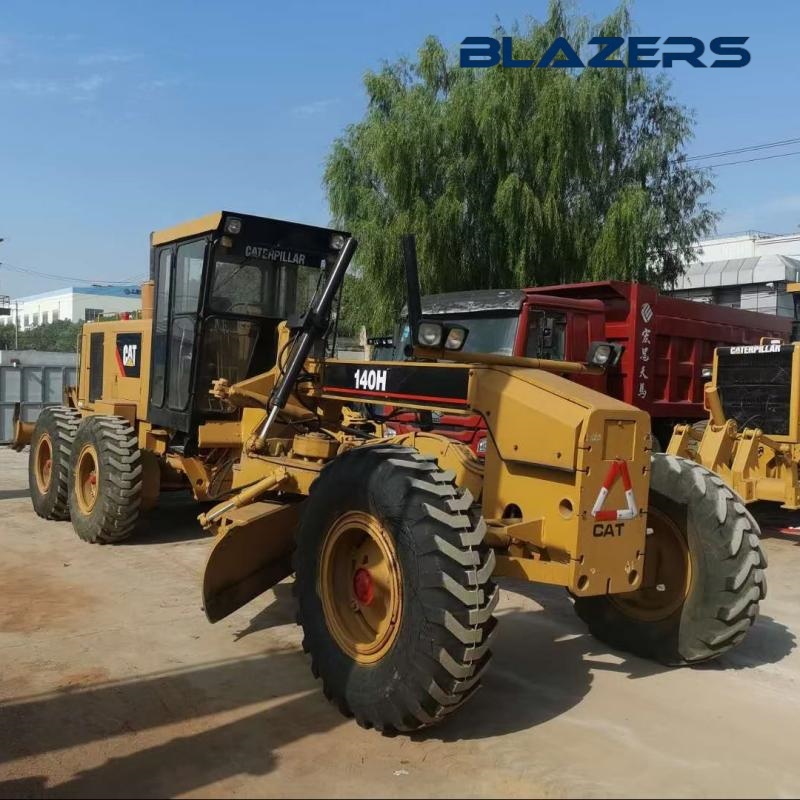

About Cat 140H Caterpillar Motor Grader
Model: Cat C7 ACERT
Displacement: 7.2l
The total weight of the vehicle is 16,620.0 kg
Number of cylinders: 6
Scraper width: 3.7 meters
Arc radius: 413.0mm
Dental-laryngeal clearance: 120.0mm
Scraper - Thickness: 22.0mm
Scraper - Height: 610.0mm
Edge - Thickness: 16.0mm
Edge - Width: 152.0mm
Blade thickness: 16.0mm
Blade width: 152.0mm
Blade movement range * : The maximum blade length extending outside the tire - 1978.0mm on the right side, the maximum blade length extending outside the tire - 1896.0mm on the left side
The lateral movement of the soil scraper: 663.0mm to the right, 512.0mm to the left
The center shift of the rotary table: 728.0mm on the right, 752.0mm on the left
Maximum lifting height above the ground: 480.0mm
Maximum excavation depth: 735.0mm
The tilting range of the shovel: 40° forward, 5° backward
In order to ensure that our quality can reassure and satisfy customers
We will conduct very detailed inspections on each bulldozer to ensure that each one is of good quality
System inspection items and requirements

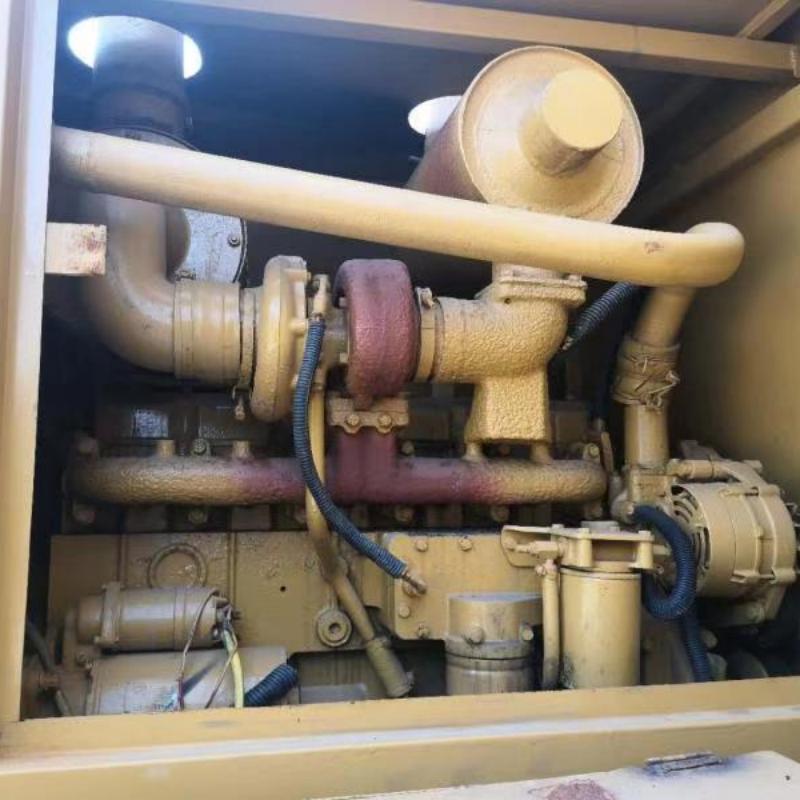

1. Requirements for power system inspection: The engine starts smoothly without blue smoke (blue smoke = burning oil), no signs of oil leakage, the turbocharger operates without abnormal noise, and the pressure of the intake hose is normal
2. Inspection requirements for the chassis system: There should be no shaking or oil leakage on the four wheel bodies of the idler wheels, guide wheels, sprocket wheels and drive wheels. There are no cracks in the track plates. The chain track plate can be selected as widened type according to customer requirements to enhance stability.
3. Hydraulic system inspection requirements: Start the working device and ensure that the earthmoving shovel rises and falls smoothly without any delay. The sealing rings of the distribution valve and the hydraulic cylinder are in good condition.
4. Structural inspection requirements: The scraper is in good condition without any deformation
List of consumables that must be replaced before shipment of machinery:
Replace the engine oil, hydraulic oil, gear oil, new air filter, oil filter, diesel filter, valve core sealing ring, fuel injector, pin shaft, etc. Other damaged parts will also be replaced with new ones
