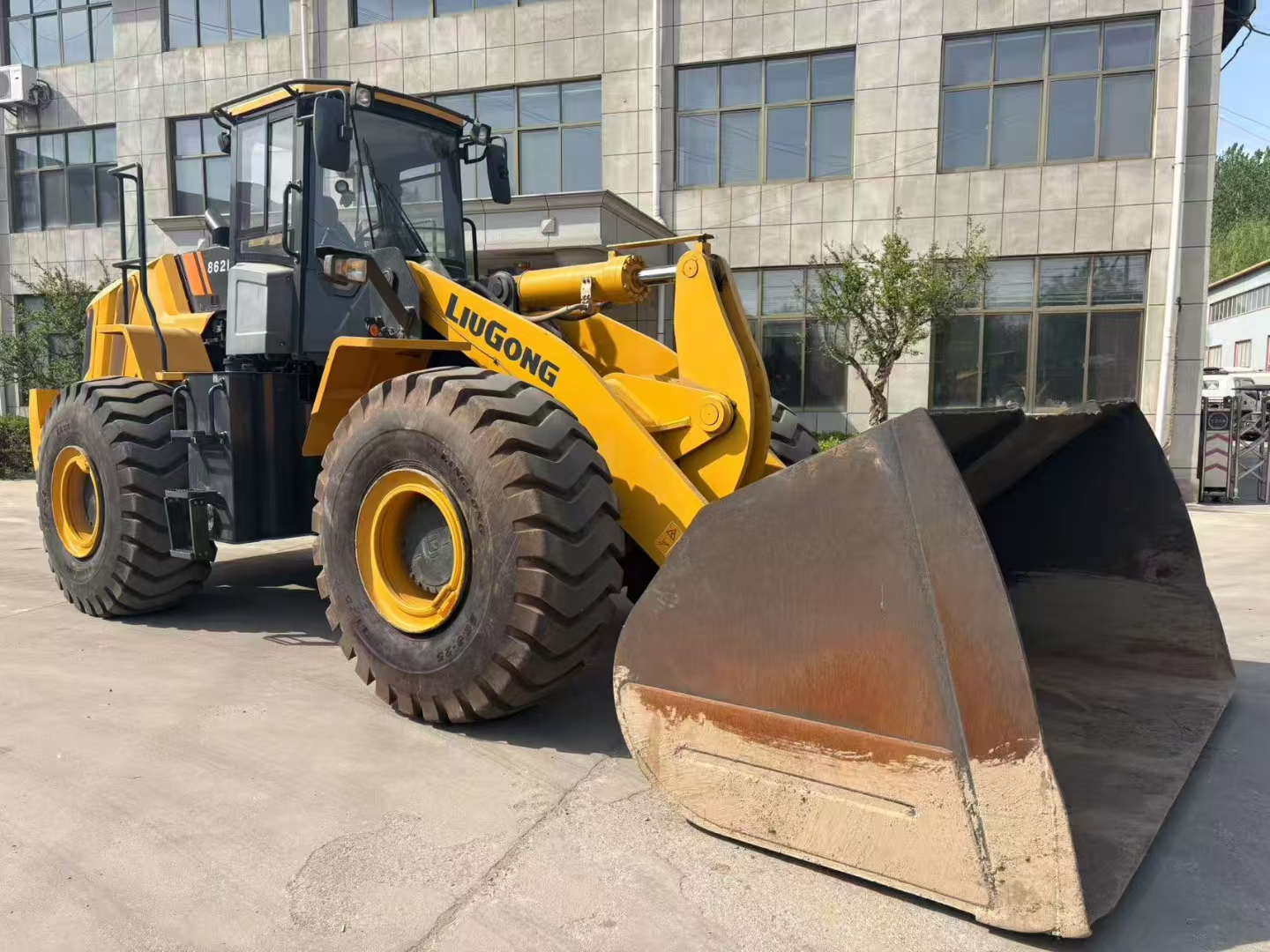

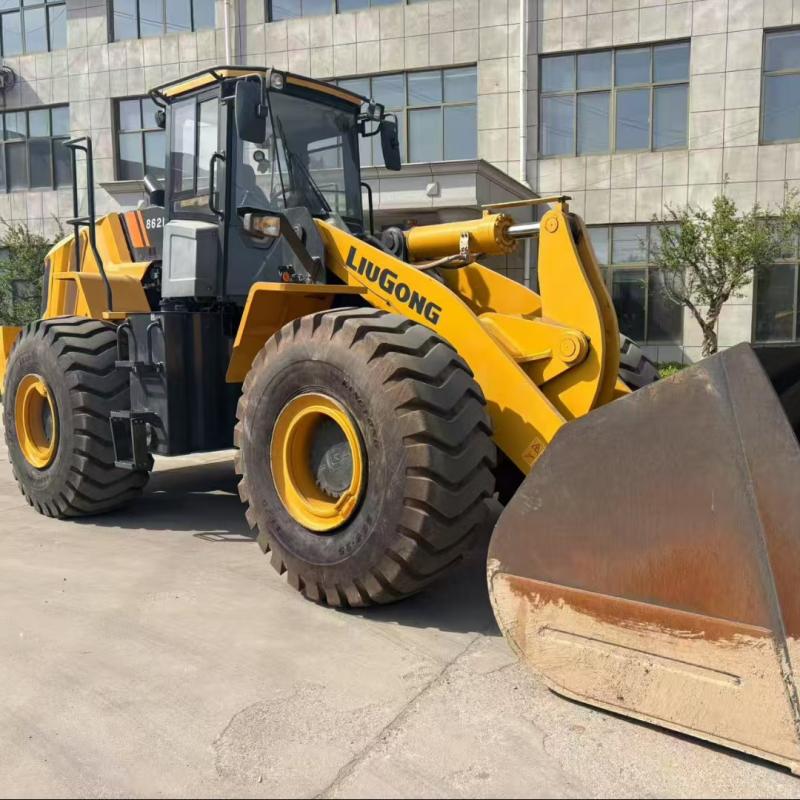

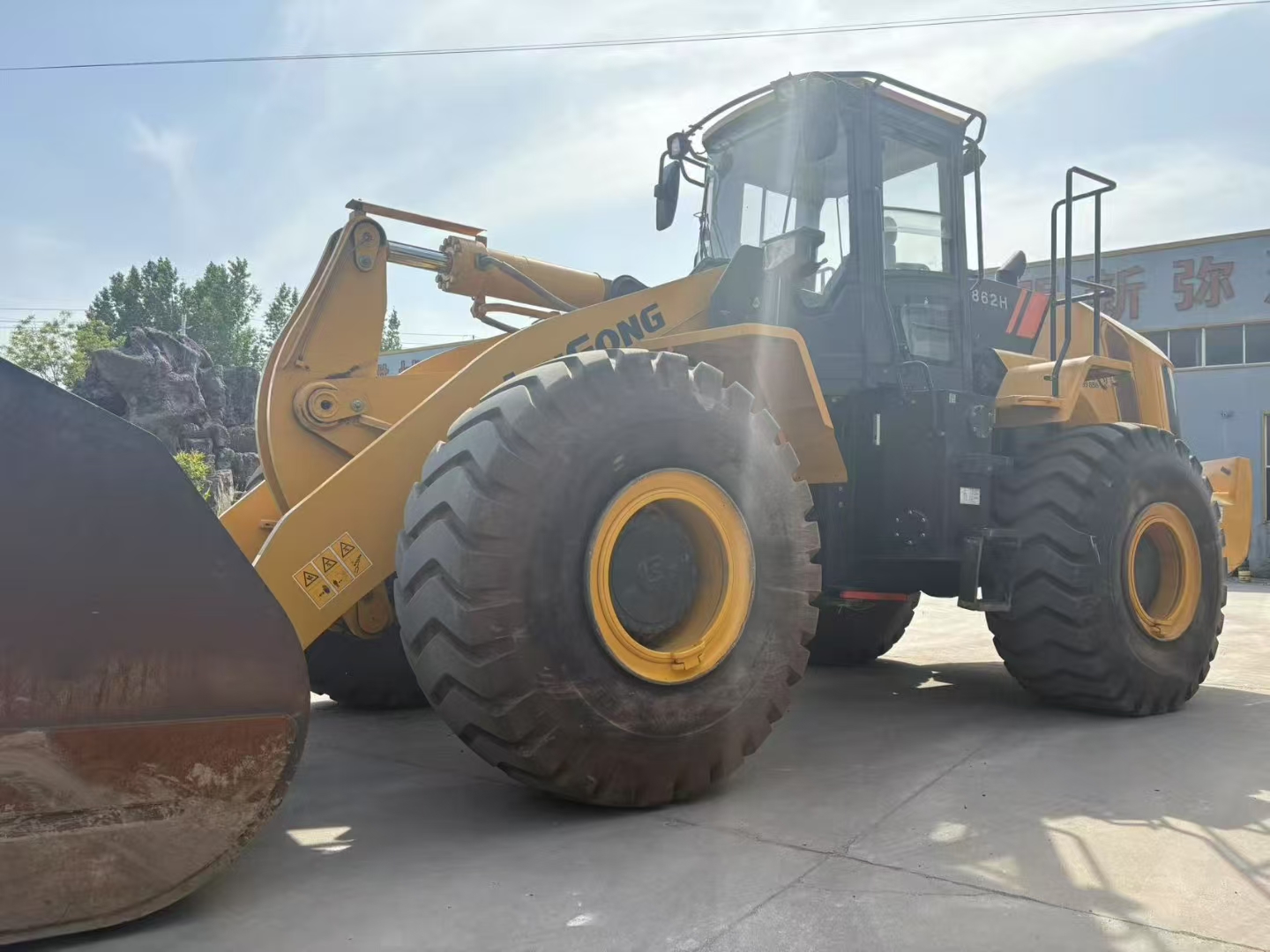

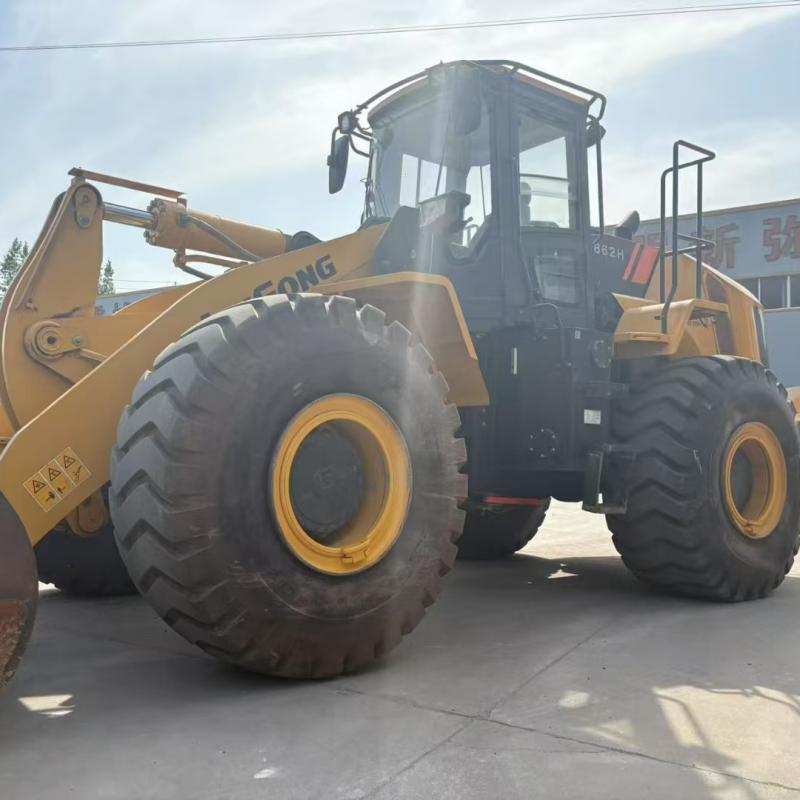

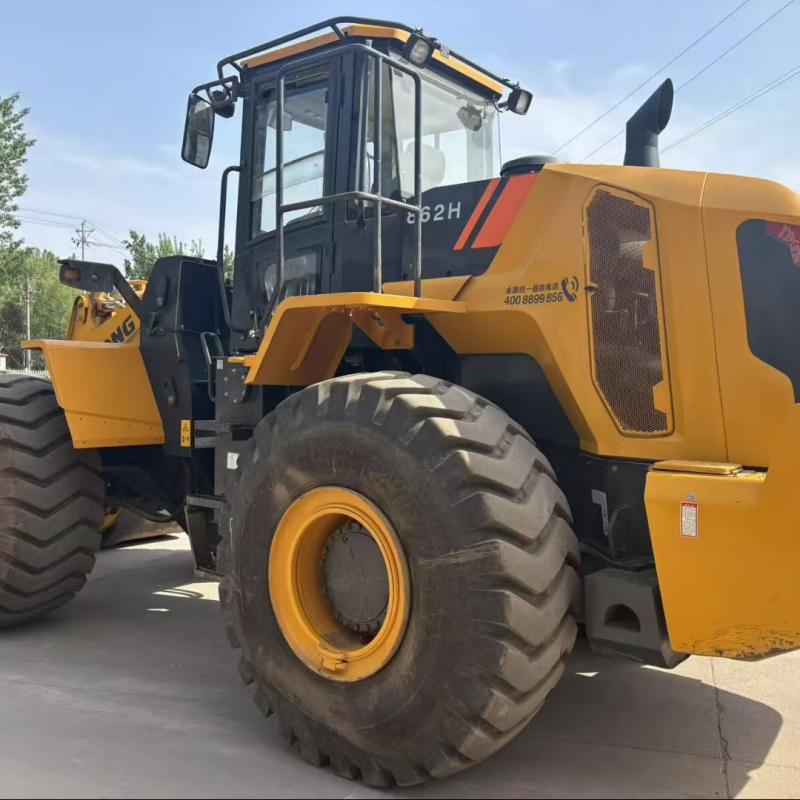

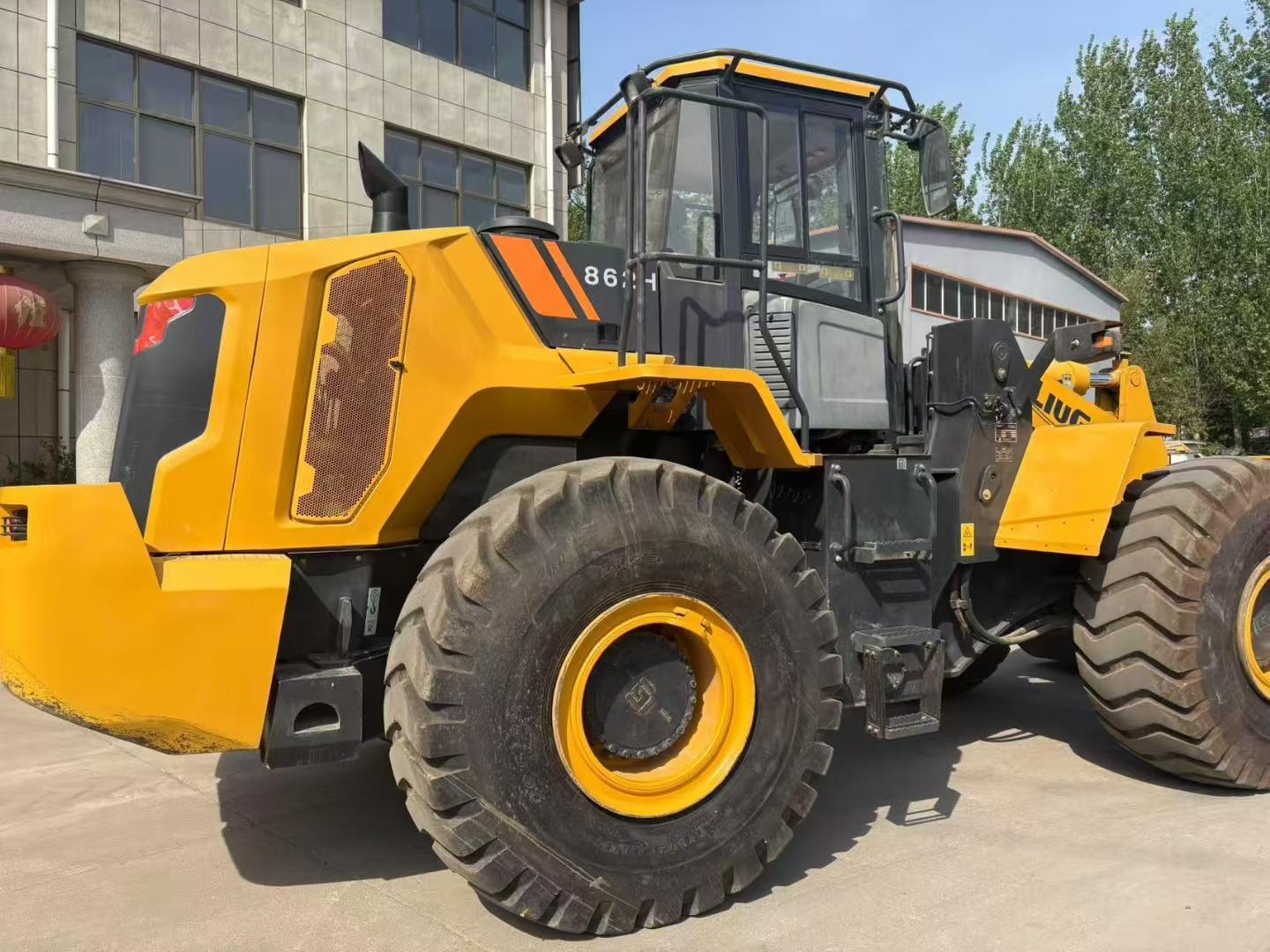

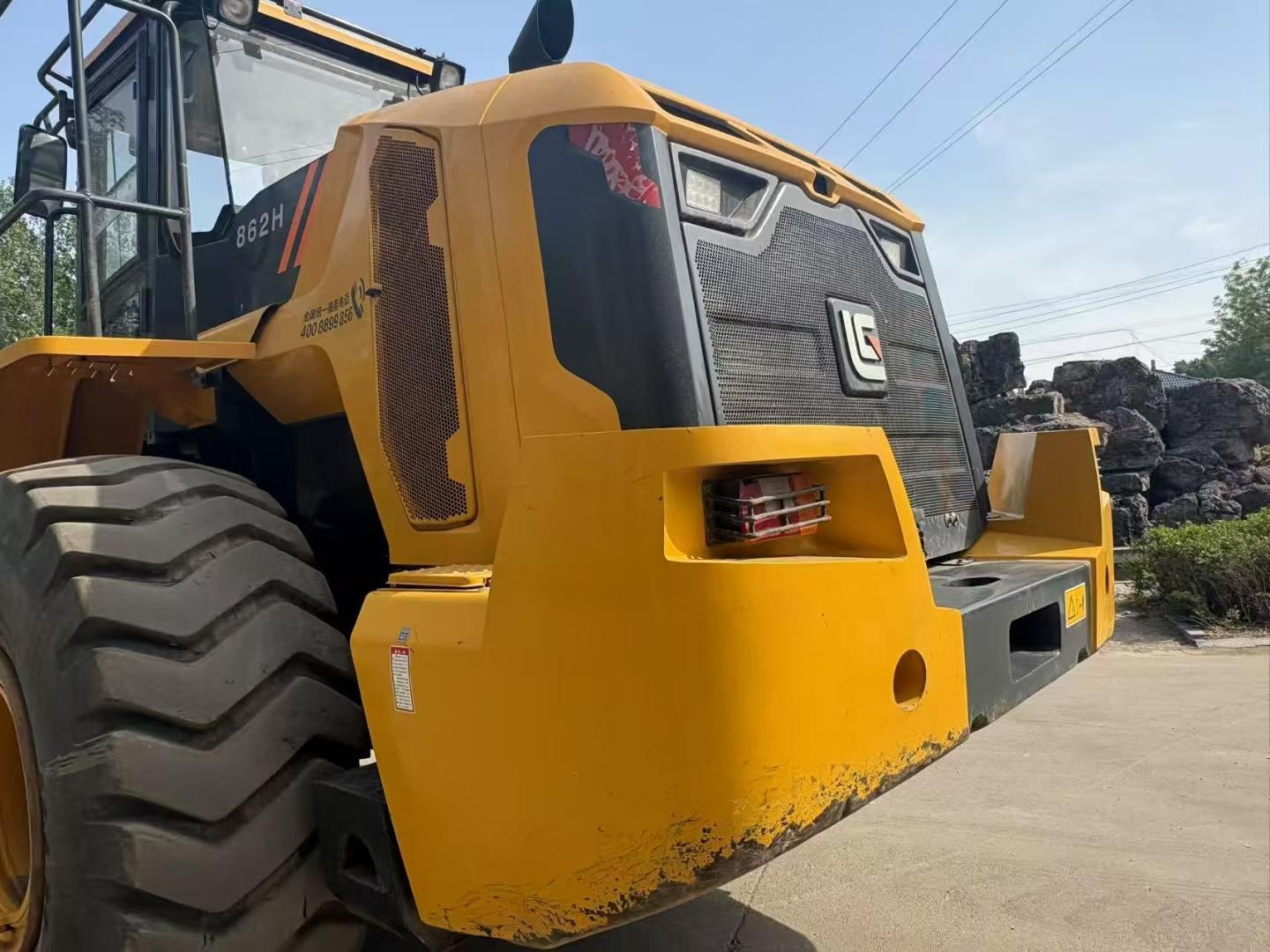

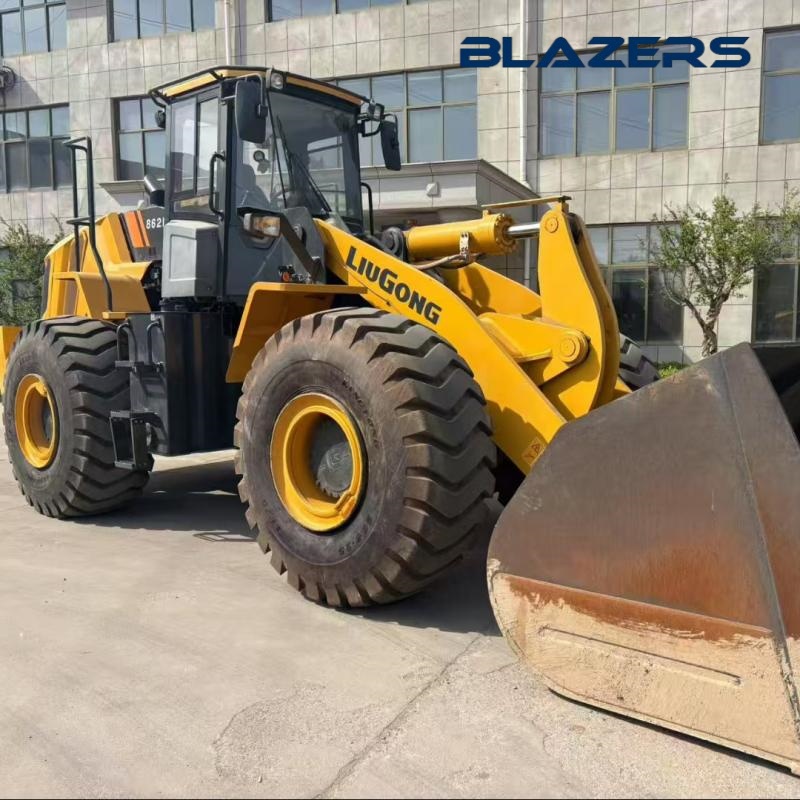

2022 Second Hand Wheel Loader Liugong 862H Bulk Material Loading And Unloading

Equipment model CLG862H

Model abbreviation 862

Rated load capacity (kg) 6000

Operating weight of the whole machine (kg) 19500

Bucket capacity (m ³) 3.5

Maximum excavation force (excavation force) (kN) 195

Maximum Traction Force (kN) 192

Walking mode: tire type

Universal type for working conditions and purposes

Tonnage range 5-8 tons

Power type: fuel engine (fuel)

Engine brand Cummins

Model QSL9.3

Type six cylinder inline, four stroke turbocharged

Rated power/speed (kW/r/min) 180/2200

Maximum torque/speed (N · m/r/min) 1187

Total displacement (L) 9.3

Transmission speed 1st gear (forward/reverse) (km/h) 13.5/16

Transmission speed 2nd gear (forward/reverse) (km/h) 40

Fuel quantity (fuel tank capacity (L)) 330

Engine oil (L) 28

Cooling system (L) 35

Overall length (mm) 8628

Overall width (mm) 3046

Overall height (mm) 3467

Minimum ground clearance (mm) 460

Wheelbase (mm) 3450

Track width (mm) 2280

Unloading height - Unloading angle is 45 ° (mm) 3100

Unloading distance - Unloading angle is 45 ° (mm) 1150

Steering angle (°) 38

Minimum turning radius (based on the center of the outer wheel) (mm) 6300

Boom lifting time (s) 5.2

Three items and time (s) 10

To ensure that our quality can satisfy customers with peace of mind

We will conduct a detailed inspection of each loader to ensure that it is in good working condition

System inspection items and requirements

1. Engine inspection requirements: Cold start test: Smooth start, smooth idle, no abnormal noise, no black smoke.

2. Inspection requirements for transmission and walking system: The gearbox gear shift should be smooth and there should be no slipping or abnormal noise. The tread depth is greater than 5mm (new tires can be replaced according to customer requirements, 18 level tires are more resistant to harsh working conditions), the wheel hub bearings are not loose, and the axle housing has no oil leakage.

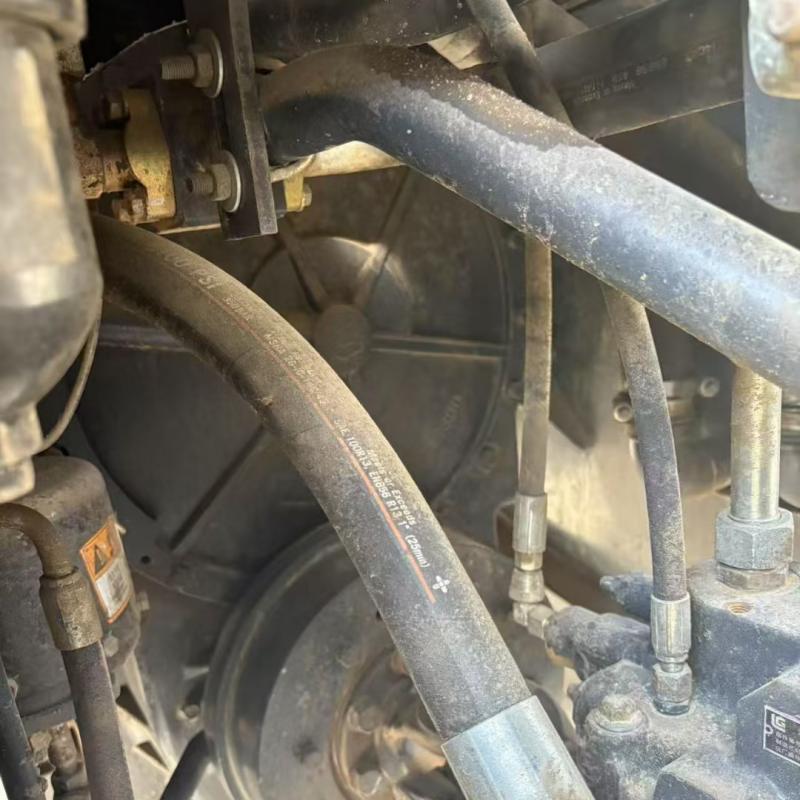

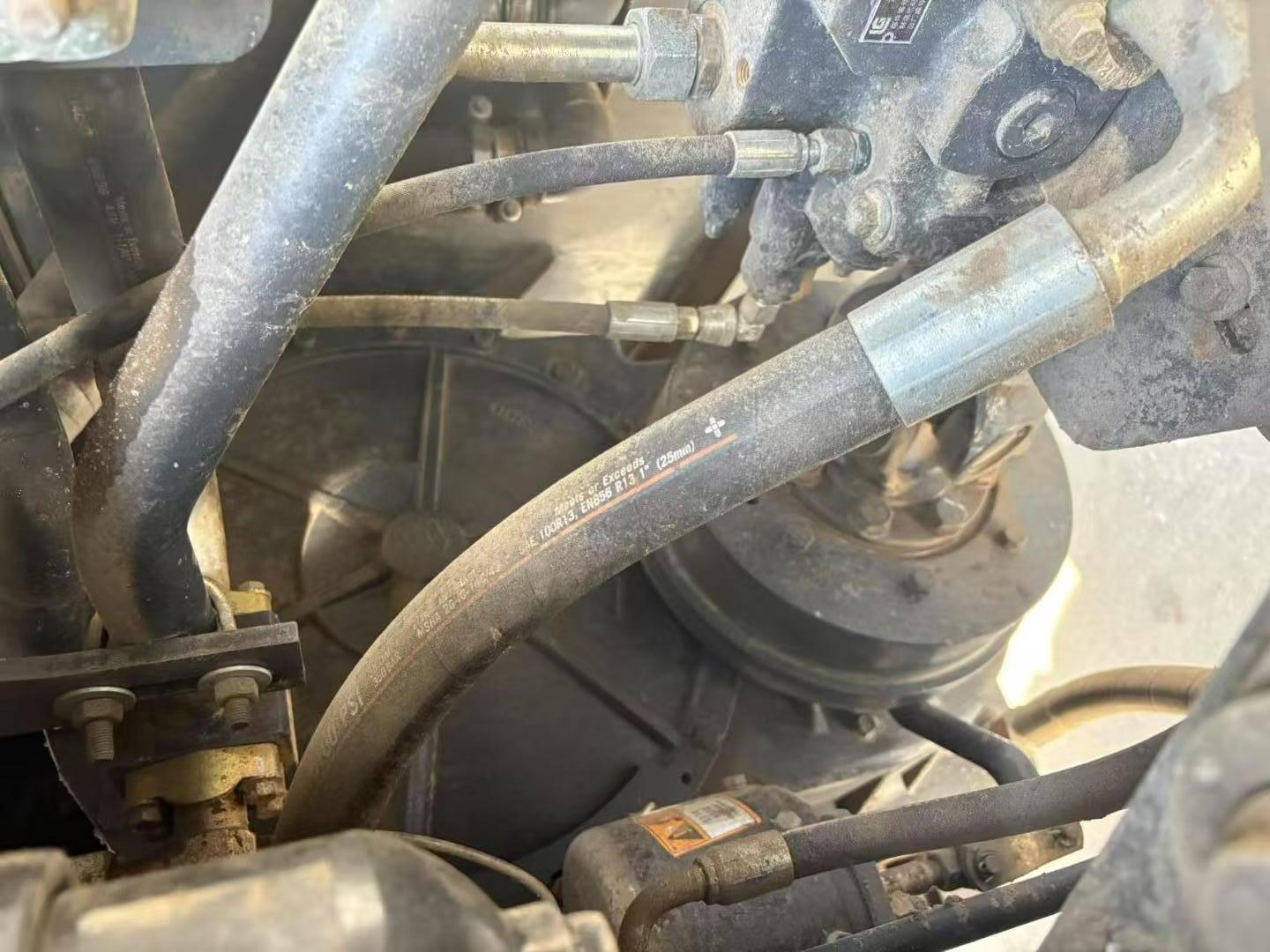

3. Hydraulic system inspection requirements: Test the bucket lifting separately Tilting and other movements are smooth without any lag. When the control lever is pushed to the limit position at idle, the engine does not shut down, the hydraulic hose has no bulges or cracks, and there is no oil leakage at the joint.

4. Inspection requirements for working device and frame: The trapezoidal wear-resistant steel structure of the bucket should be free of deformation, the thickness of the bottom wear-resistant steel plate should be greater than 10mm, and the pin shaft should be inspected There is no abnormal noise when the bearing clearance shakes, at the hinge. The welding point has no cracks or repair marks.

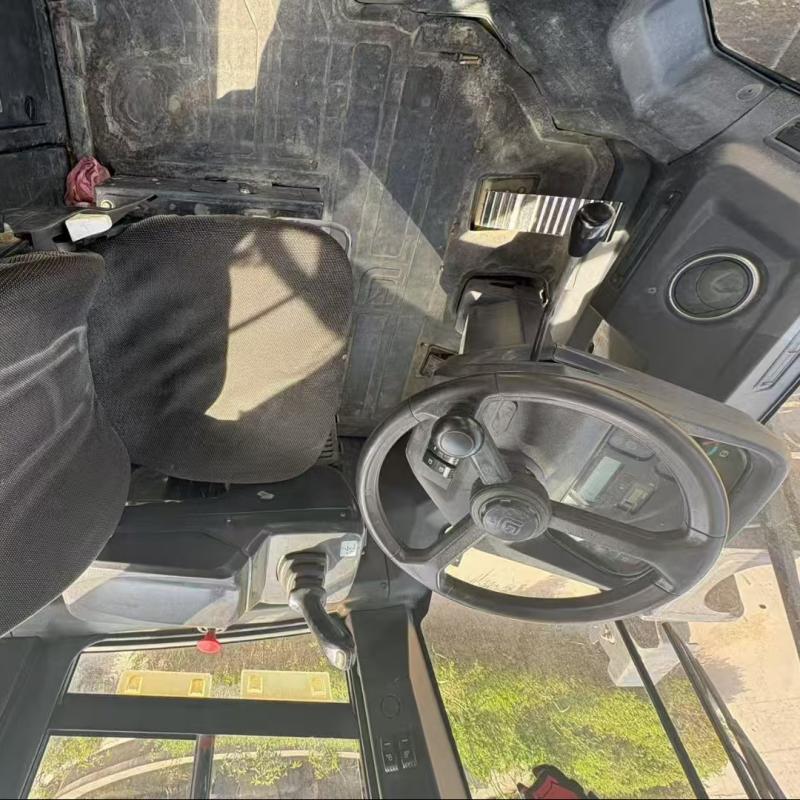

5. Requirements for driving and safety system inspection: Good parking brake, sensitive brake response during driving, LED work light The dashboard displays normally, and the fault code can be read.

List of vulnerable items that must be replaced before mechanical shipment:

Replace all worn parts such as engine oil, hydraulic oil, oil filter, diesel filter, air filter, and others with new ones
