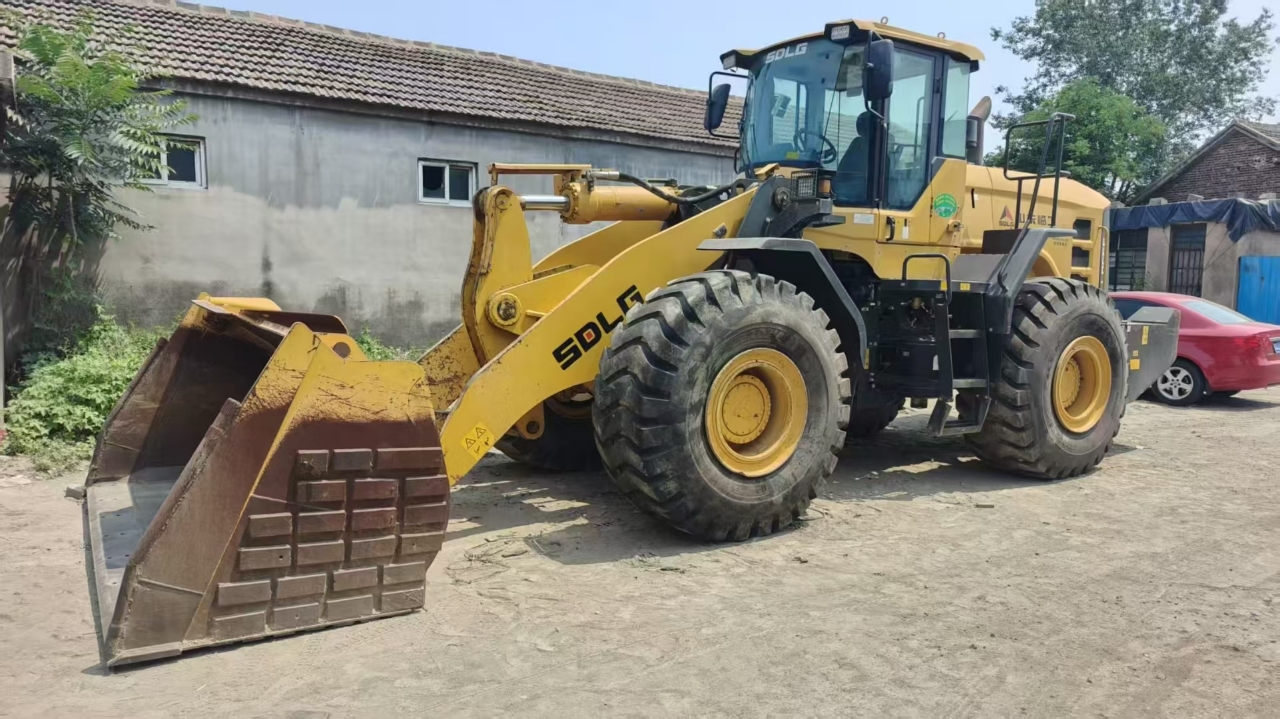

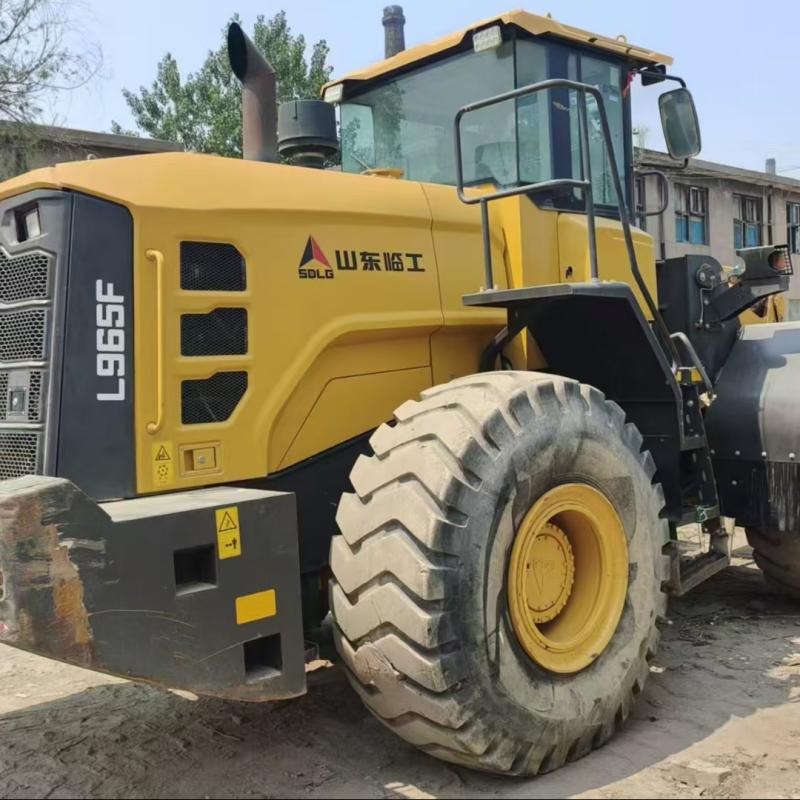

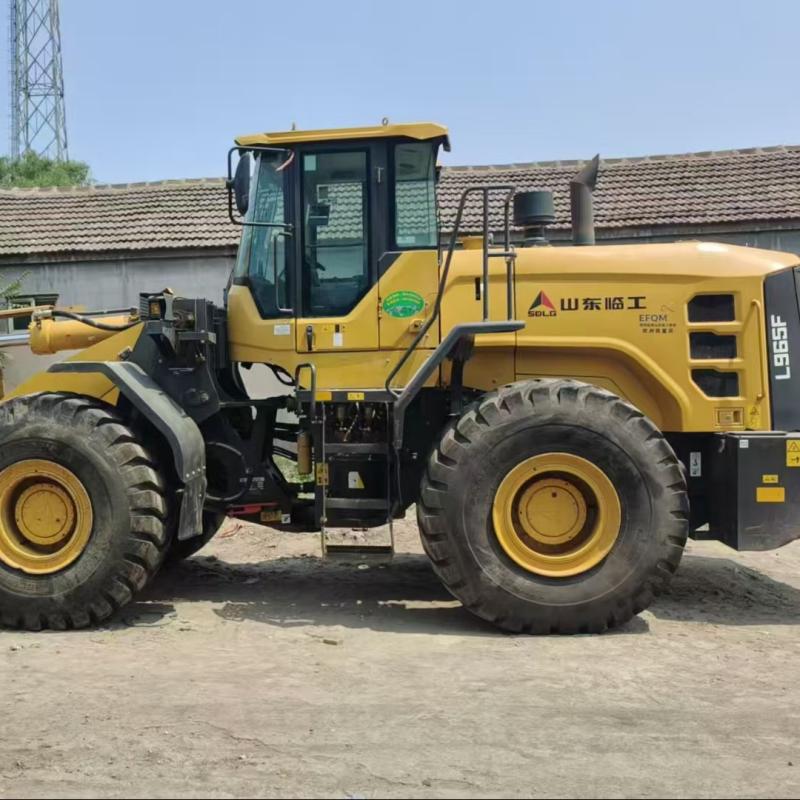

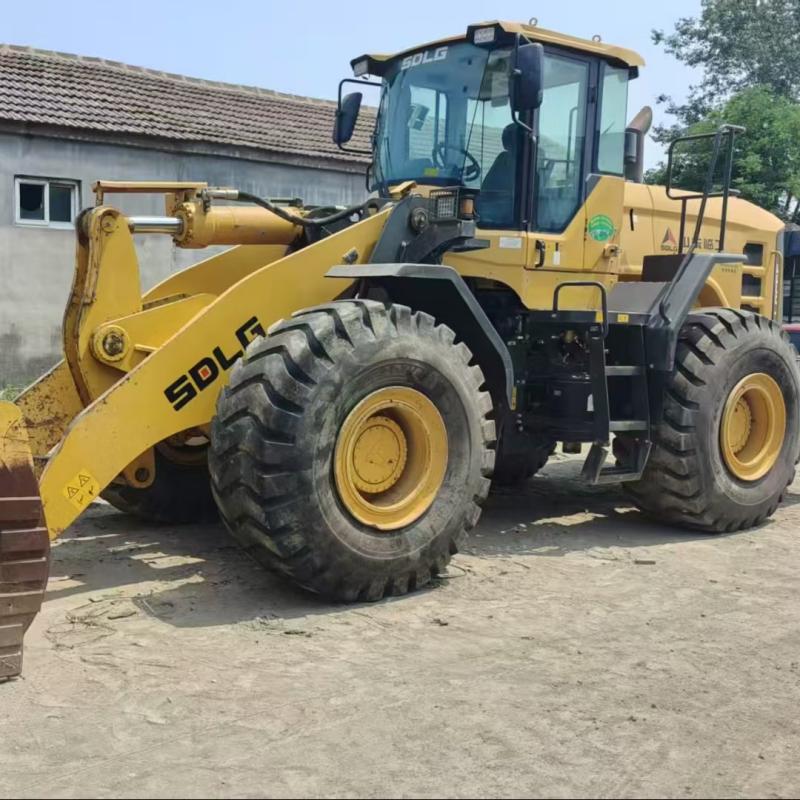

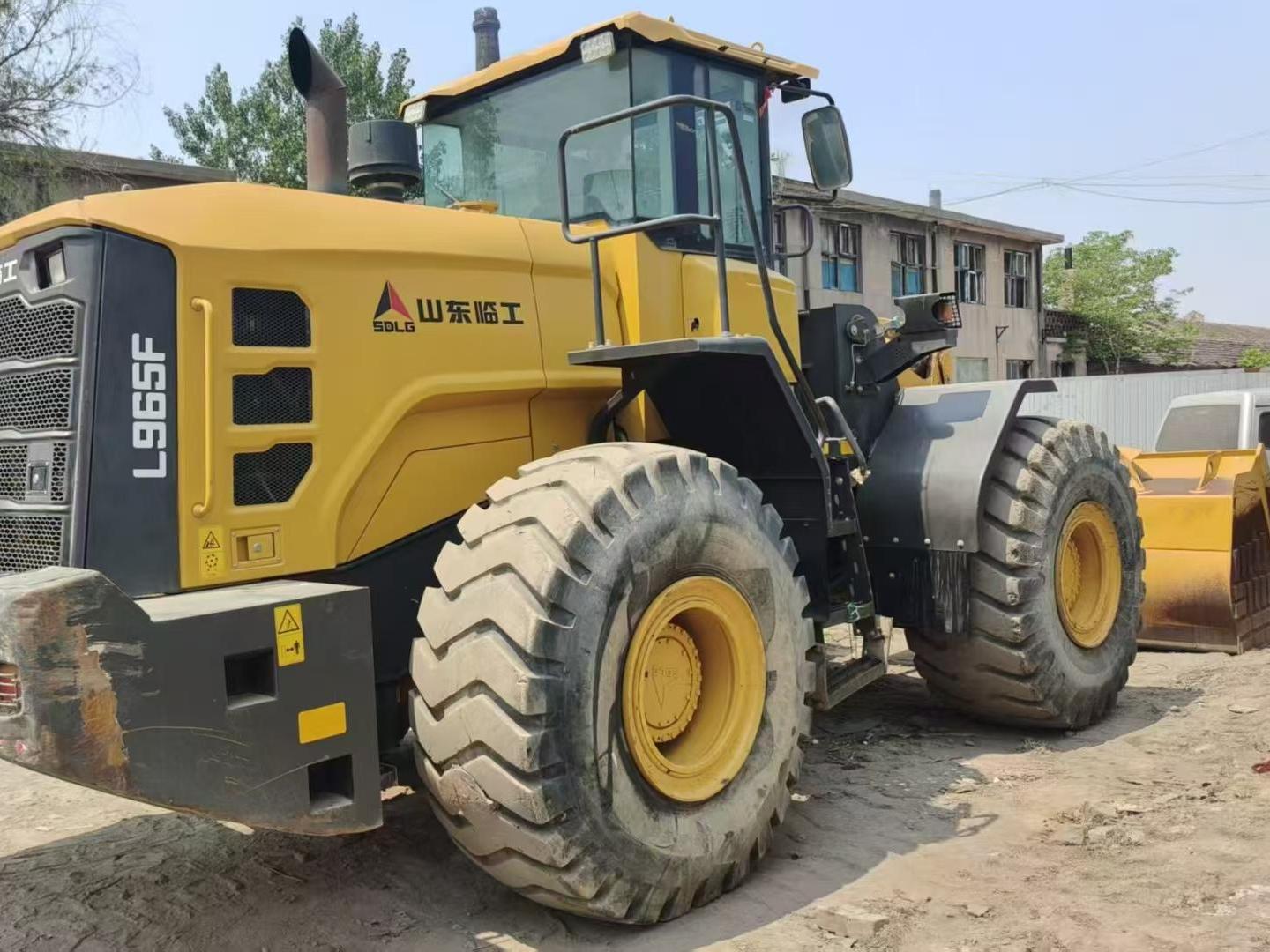

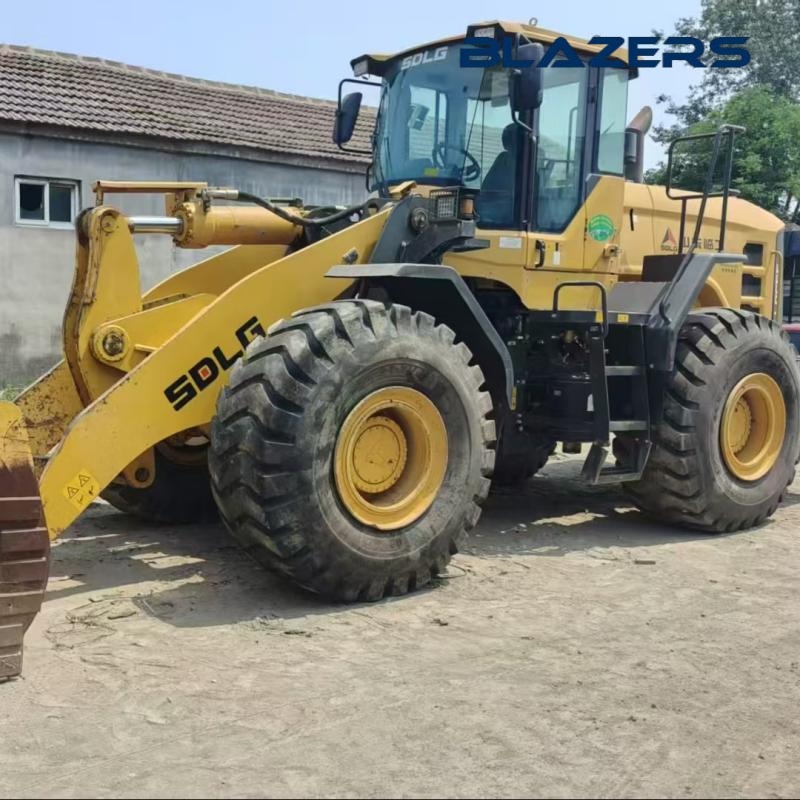

2019 Second Hand Wheel Loader Lingong 965F Earthwork Excavation For Algeria

About Lingong 965F
Equipment model: L965F

Model abbreviation: 965

Power type: Fuel

Usage: Universal type

Walking mode: tire type

Operating weight of the whole machine: 21100kg

Rated load capacity: 6300kg

Bucket capacity: 3.0-6.0m ³

Maximum digging force (digging force): 200kN

Maximum unloading height: 3560mm (unloading angle of 45 °)

Corresponding unloading distance: 1290mm (unloading angle of 45 °)

Three items and time: ≤ 9.8s

Steering angle: 38 °

Engine power: 192kW

Overall length: 9250mm

Overall width: 3100mm

Overall height: 3510mm

To ensure that our quality can satisfy customers with peace of mind

We will conduct a detailed inspection of each loader to ensure that it is in good working condition

System inspection items and requirements

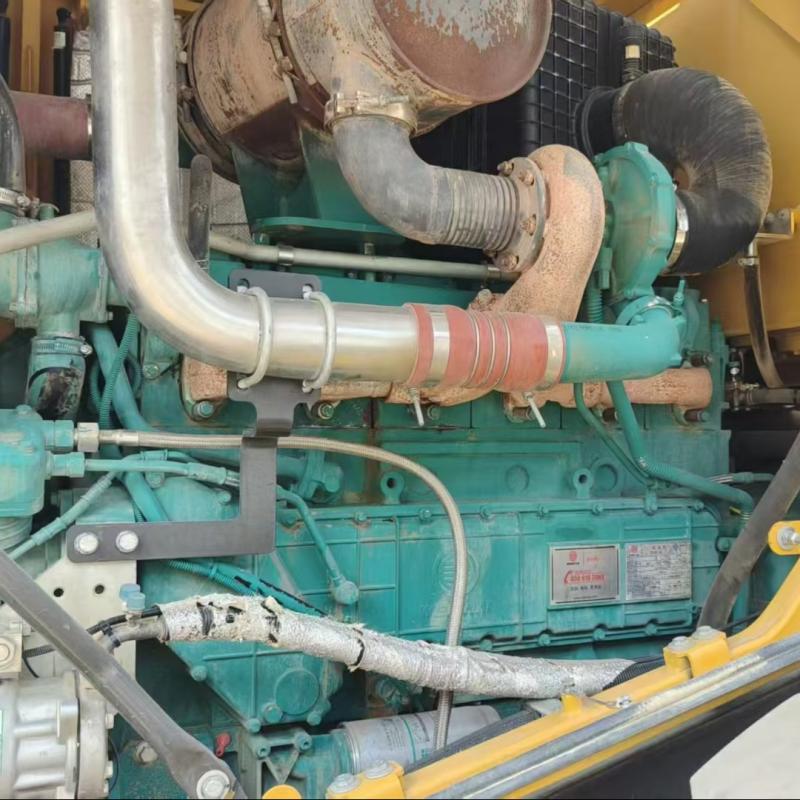

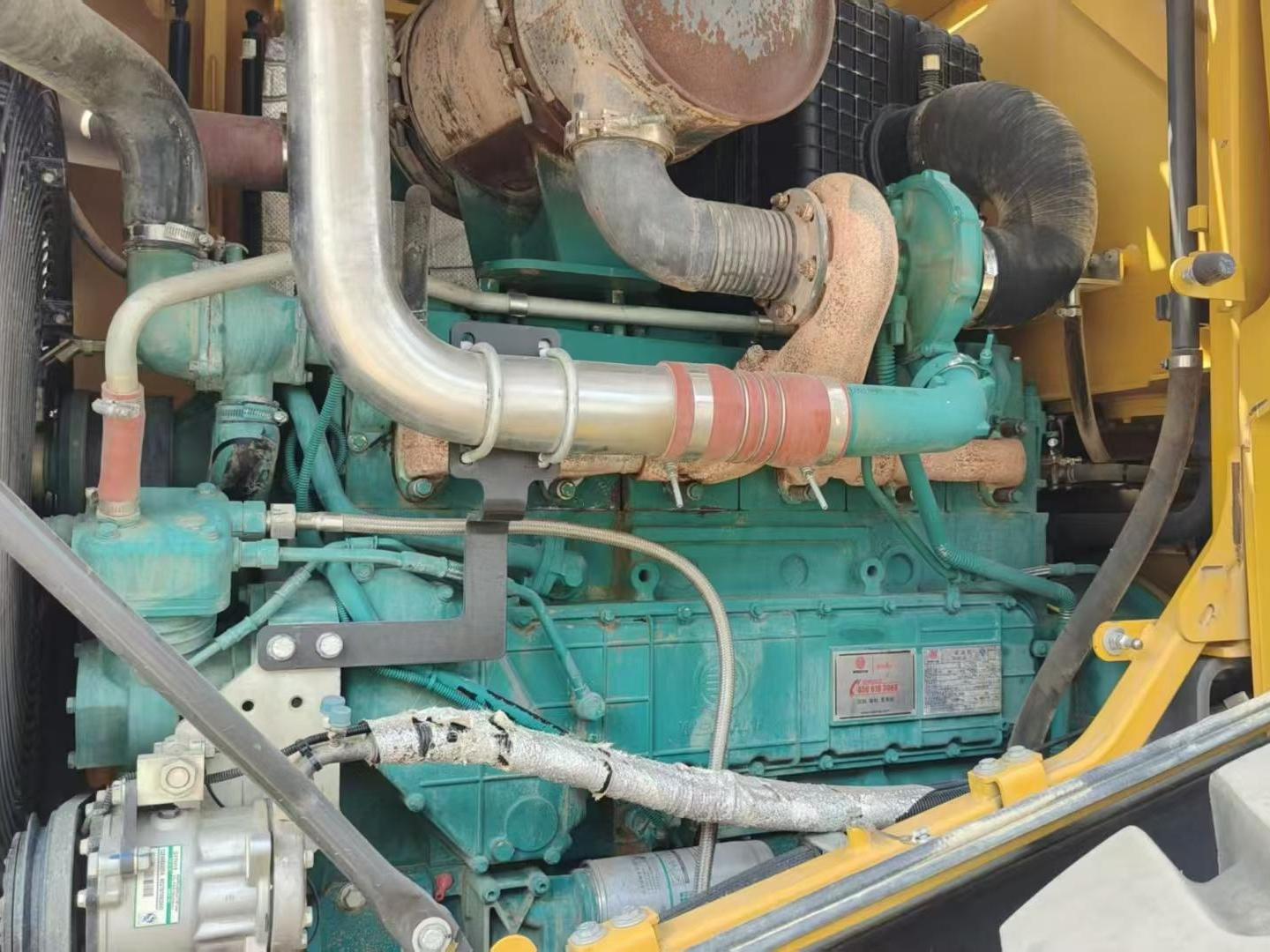

1. Engine inspection requirements: Cold start test: Smooth start, smooth idle, no abnormal noise, no black smoke.

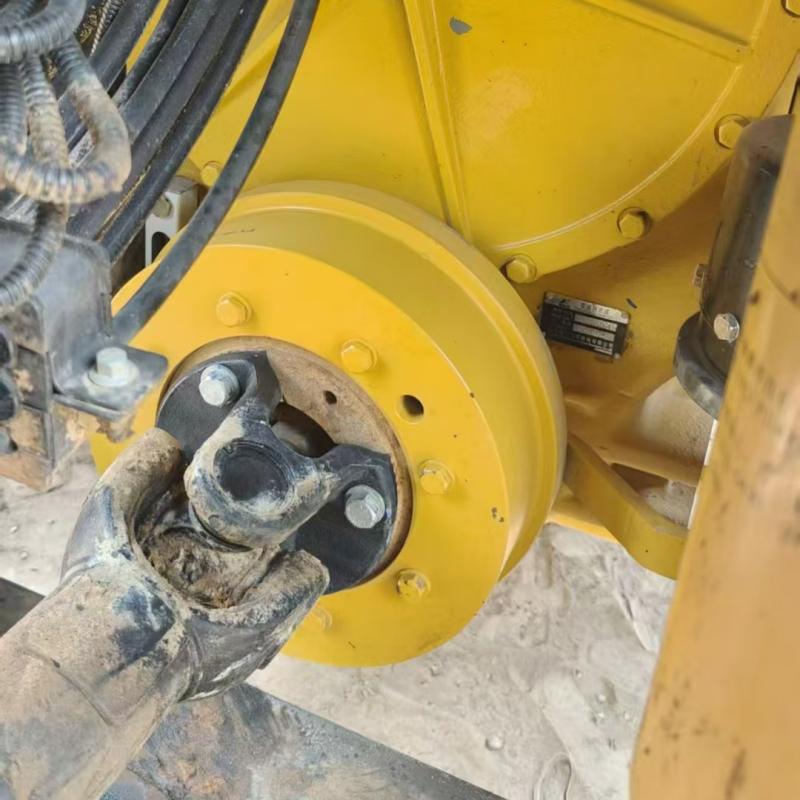

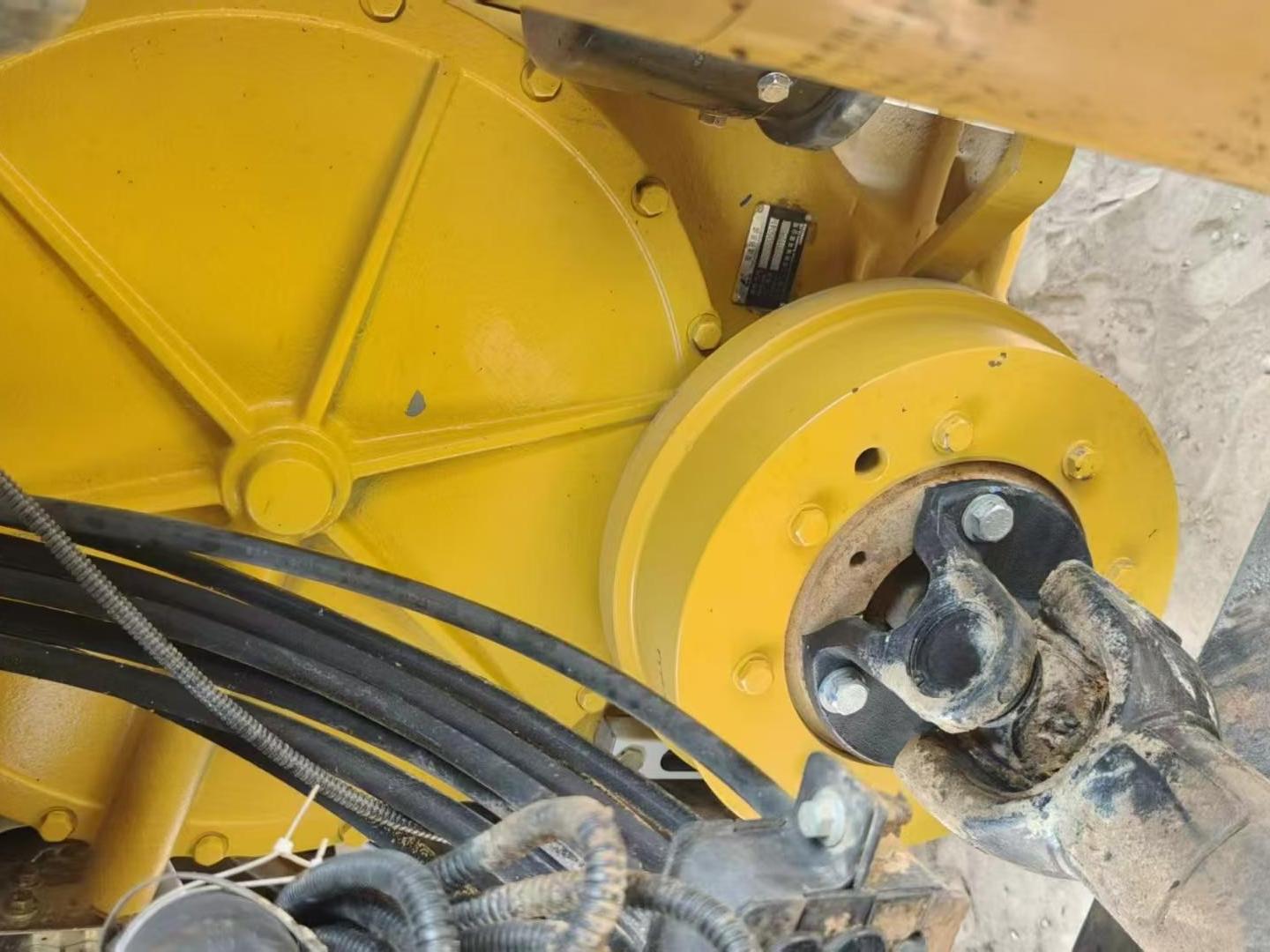

2. Inspection requirements for transmission and walking system: The gearbox gear shift should be smooth and there should be no slipping or abnormal noise. The tread depth is greater than 5mm (new tires can be replaced according to customer requirements, 18 level tires are more resistant to harsh working conditions), the wheel hub bearings are not loose, and the axle housing has no oil leakage.

3. Hydraulic system inspection requirements: Test the bucket lifting separately Tilting and other movements are smooth without any lag. When the control lever is pushed to the limit position at idle, the engine does not shut down, the hydraulic hose has no bulges or cracks, and there is no oil leakage at the joint.

4. Inspection requirements for working device and frame: The trapezoidal wear-resistant steel structure of the bucket should be free of deformation, the thickness of the bottom wear-resistant steel plate should be greater than 10mm, and the pin shaft should be inspected There is no abnormal noise when the bearing clearance shakes, at the hinge. The welding point has no cracks or repair marks.

5. Requirements for driving and safety system inspection: Good parking brake, sensitive brake response during driving, LED work light The dashboard displays normally, and the fault code can be read

List of vulnerable items that must be replaced before mechanical shipment:

Replace all worn parts such as engine oil, hydraulic oil, oil filter, diesel filter, air filter, and others with new ones
