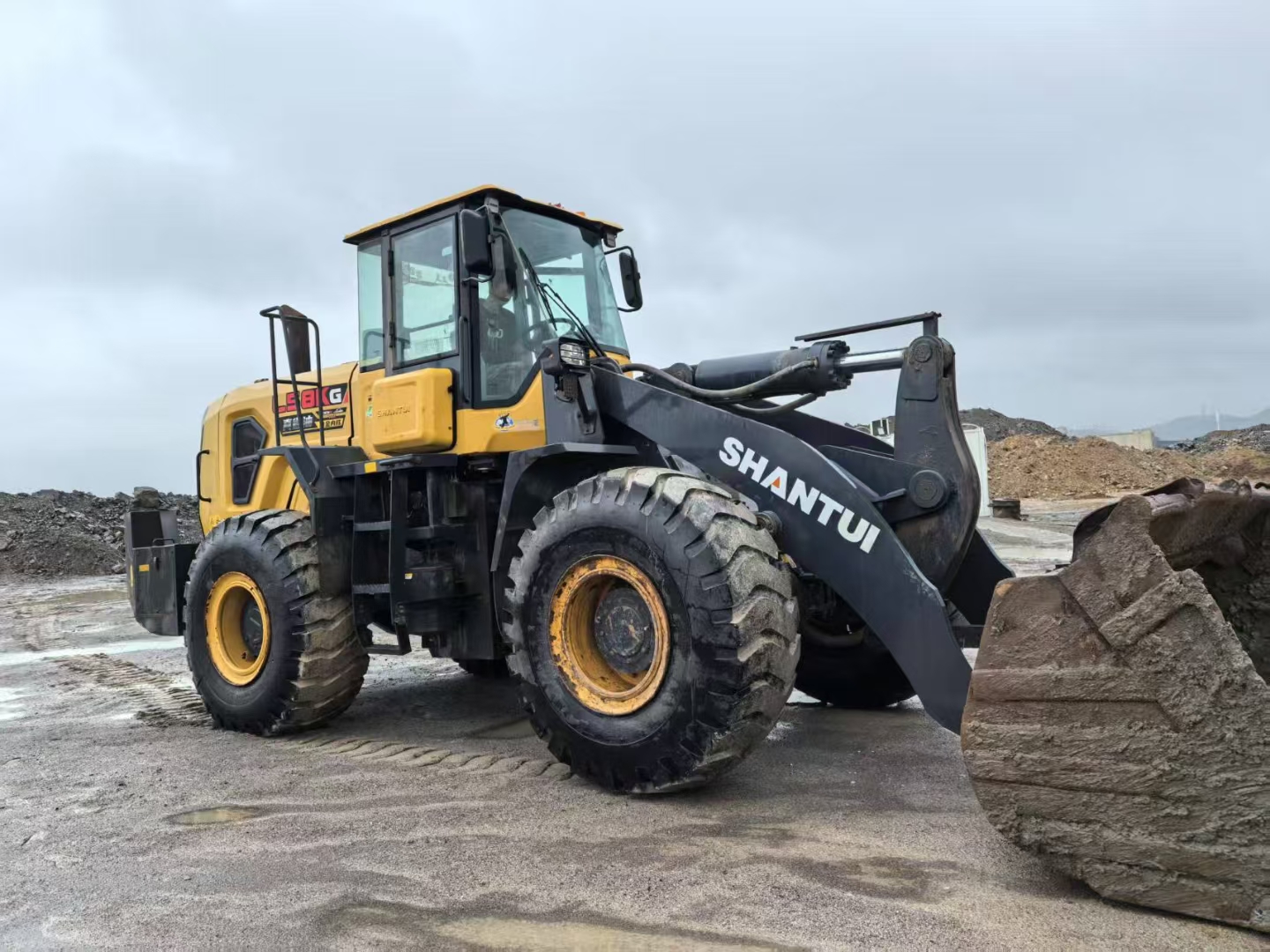

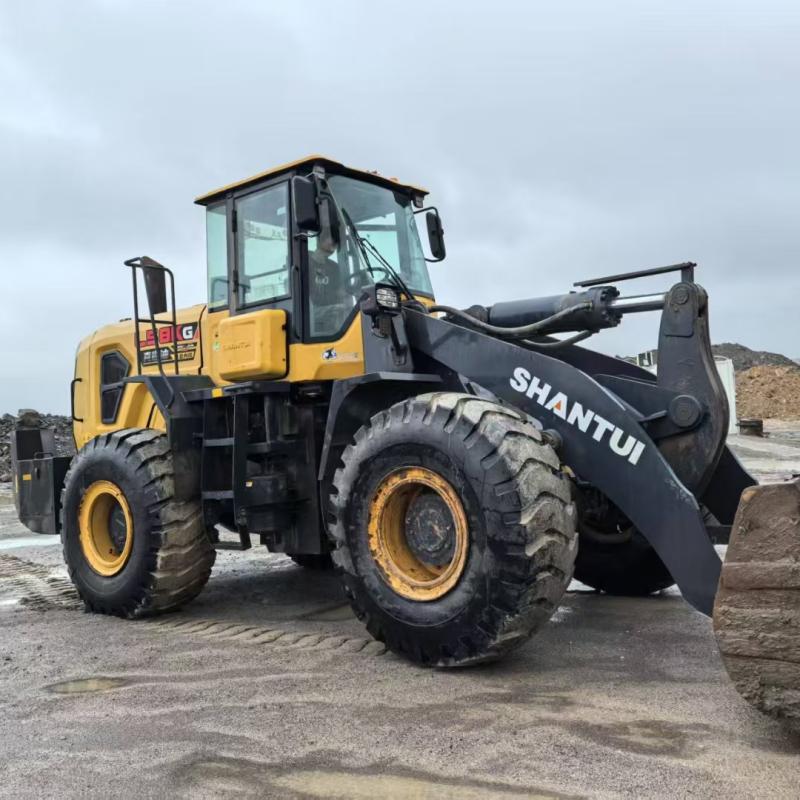

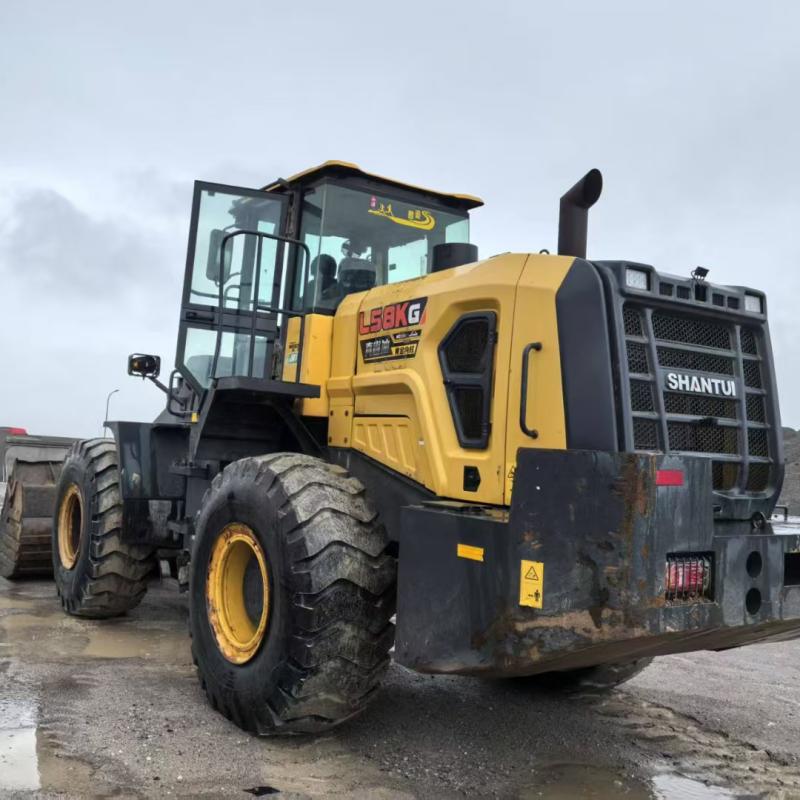

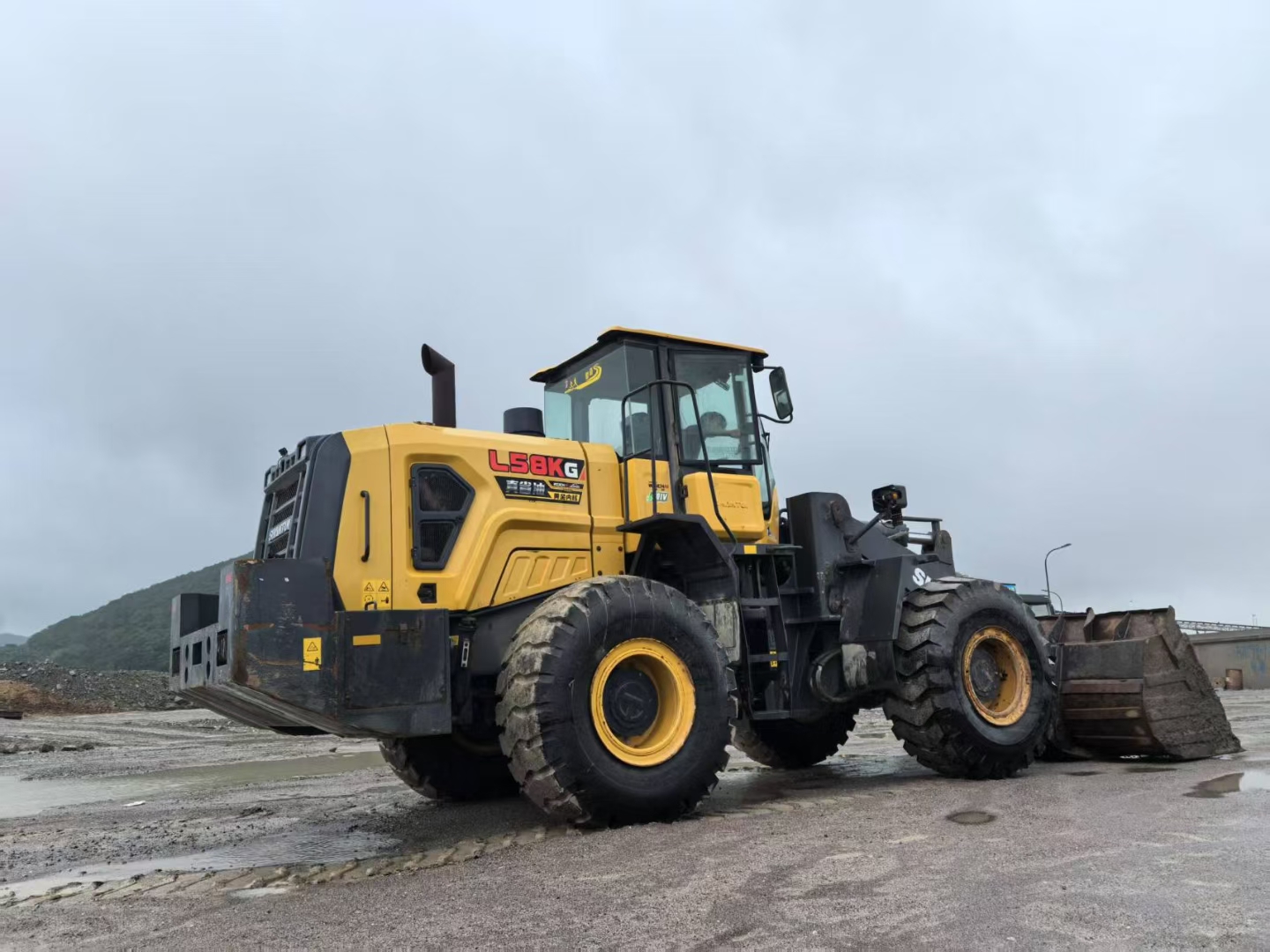

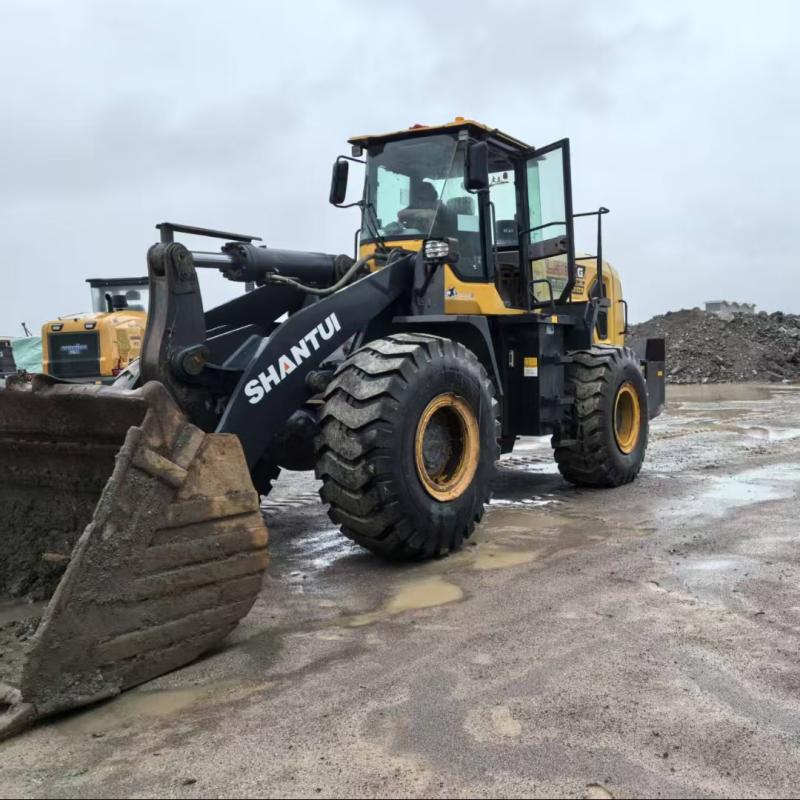

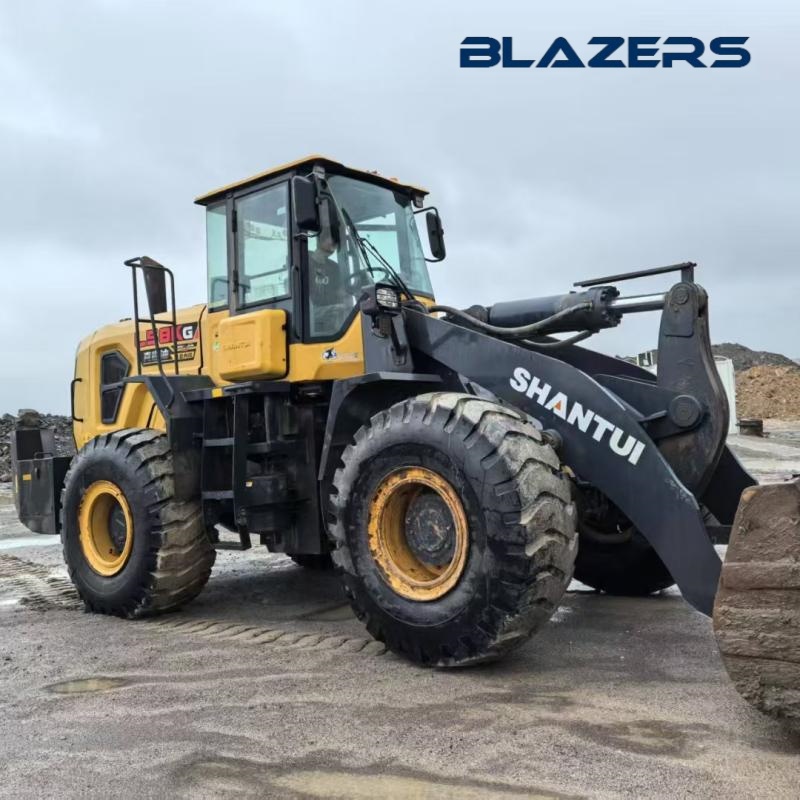

2019 Second Hand Shantui Front Loader L58K-B5 Site Leveling For Zambia

2019 Second Hand Shantui Front Loader L58K-B5 Site Leveling For Zambia

Product Attributes :

Performance features: Equipped with the exclusive low-speed and high torque Weichai engine of Shantui loader, and utilizing the latest WP10H platform, it has advanced reliability, strong power, high efficiency and fuel saving, quiet comfort, intelligent environmental protection and other characteristics. Compared with the engine fuel consumption of WP10 platform, it reduces by 10%. Simultaneously setting up three-level power control modes of no-load, medium load, and heavy load can meet the needs of different operating conditions and reduce comprehensive fuel consumption; The rear mounted 300L large capacity diesel tank not only meets the requirements of continuous operation, but also greatly improves the stability of the entire machine. Specially designed planetary gearbox for Shantui loader, with a 10% increase in speed, 10% increase in traction, and a comprehensive operational efficiency improvement of over 15%. By perfectly matching with the engine, torque converter, transmission shaft, and drive axle, maximum operational efficiency, good acceleration performance, and fast acceleration are achieved. Under joint working conditions (simultaneous walking and movement), there is high traction and lifting force, strong explosive force, and high operational efficiency.

Product Description

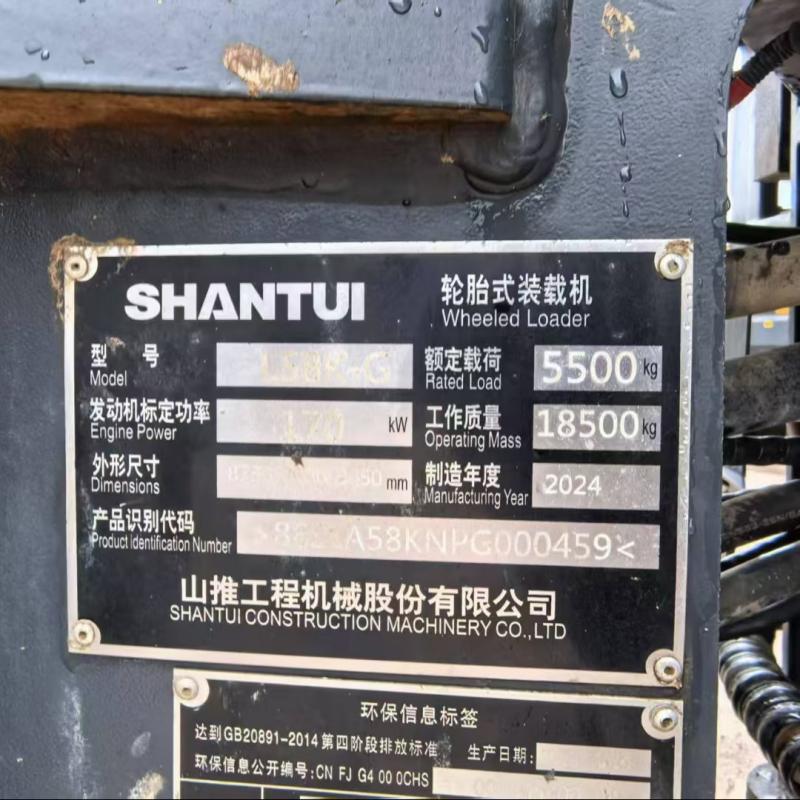

Equipment model L58K-G

Model abbreviation 58

Rated load capacity (kg) 5500

Operating weight of the whole machine (kg) 18500

Bucket capacity (m ³) 3.5

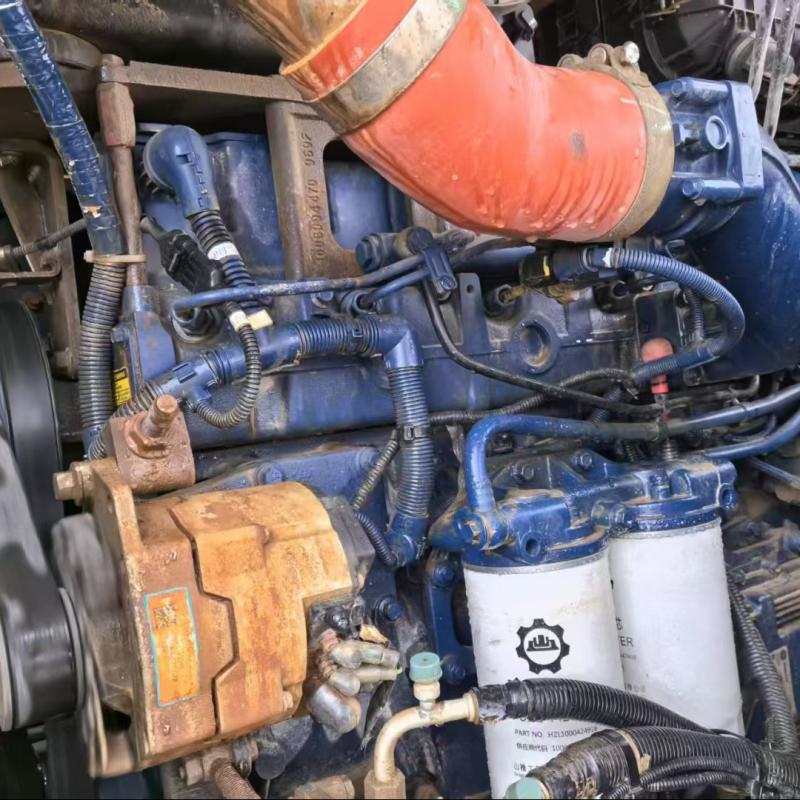

Engine brand Weichai

Model WP10H

Rated power/speed (kW/r/min) 170/2000

Fuel tank capacity (L) 300

Overall length (mm) 8390

Overall width (mm) 3066

Overall height (mm) 3450

Wheelbase (mm) 3300

Unloading height - Unloading angle is 45 ° (mm) 3050

Unloading distance - Unloading angle is 45 ° (mm) 1180

Three items and time (s) 10.2

To ensure that our quality can satisfy customers with peace of mind

We will conduct a detailed inspection of each loader to ensure that it is in good working condition

System inspection items and requirements

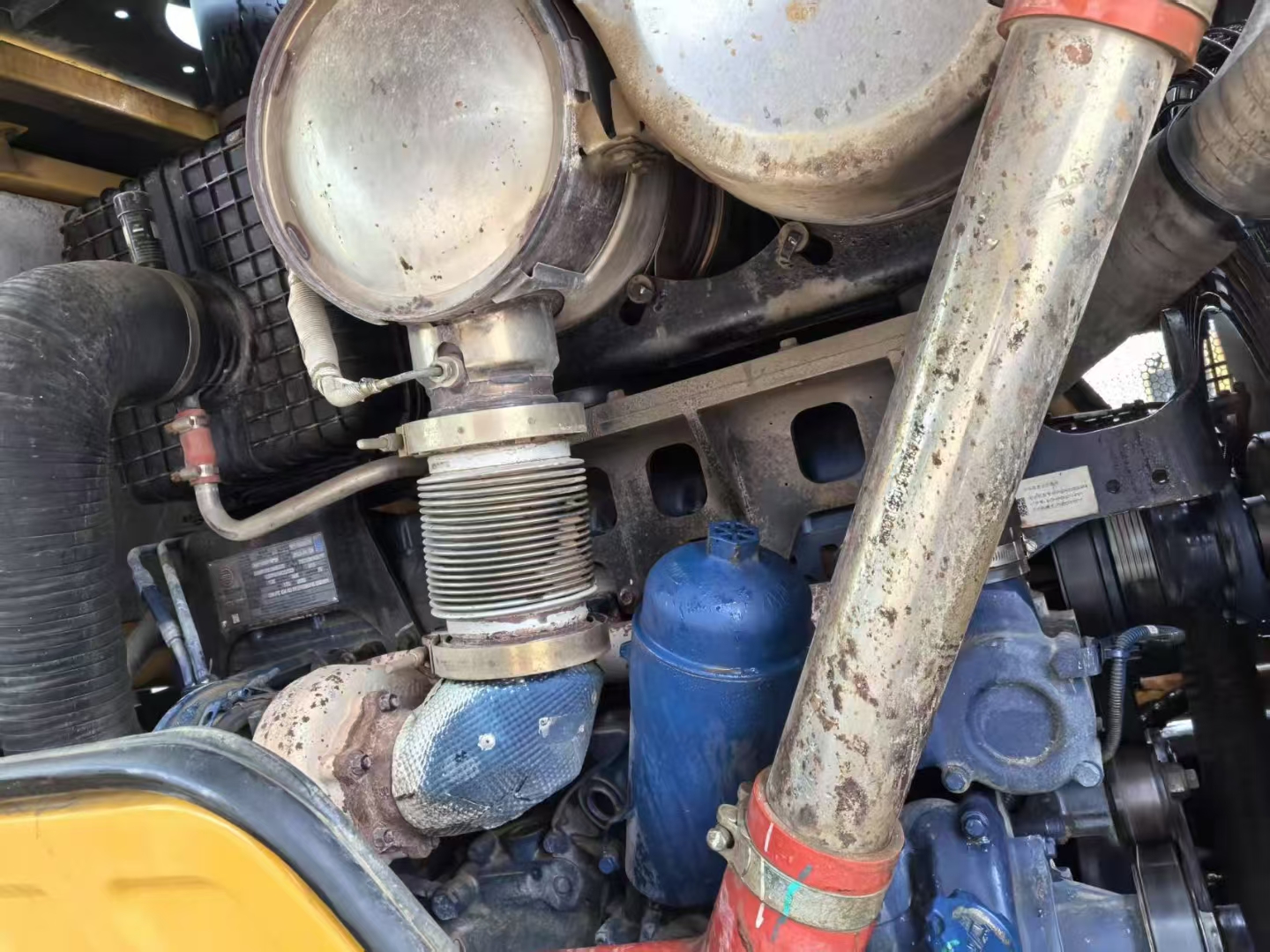

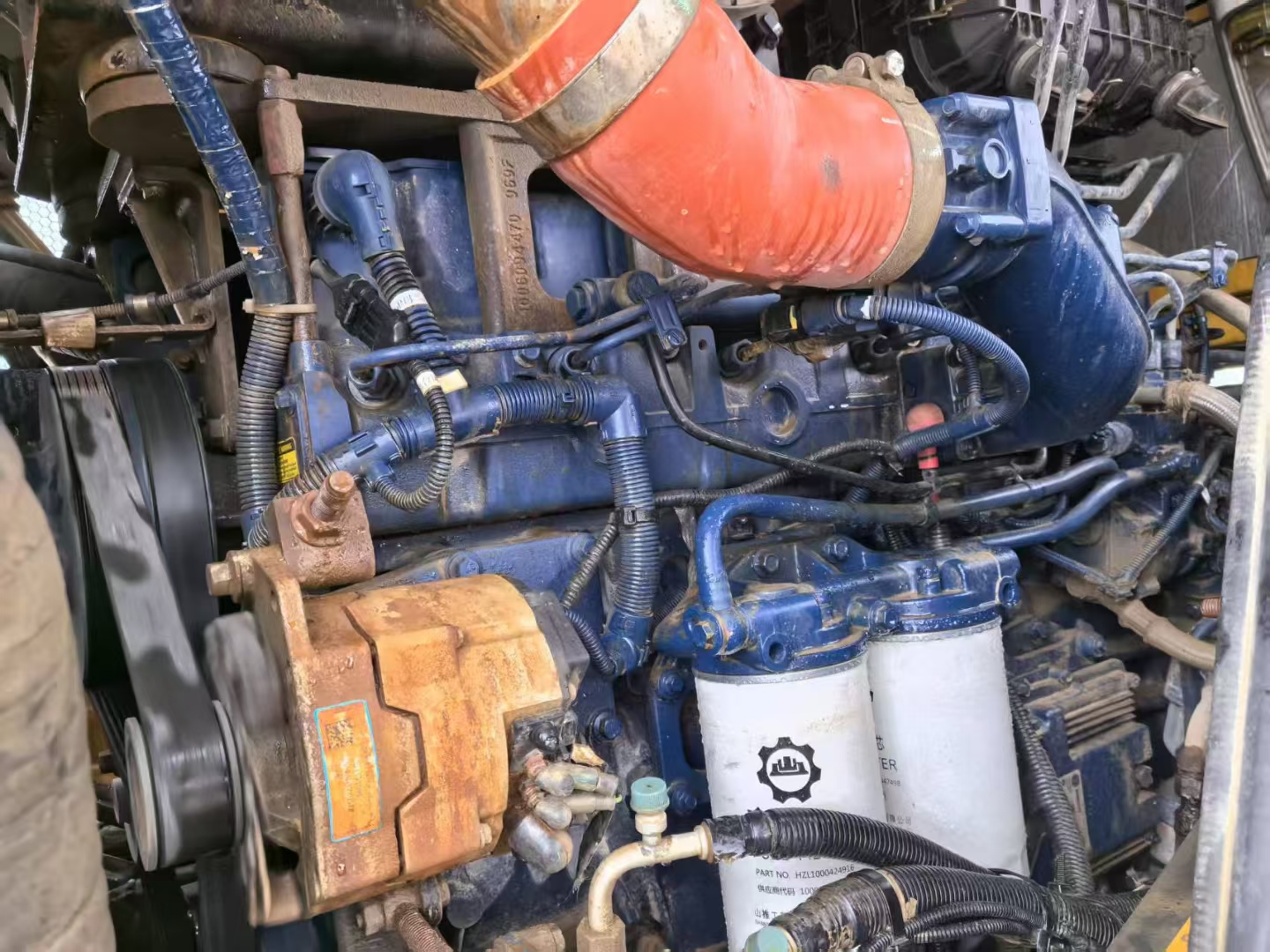

1. Engine inspection requirements: Cold start test: Smooth start, smooth idle, no abnormal noise, no black smoke.

2. Inspection requirements for transmission and walking system: The gearbox gear shift should be smooth and there should be no slipping or abnormal noise. The tread depth is greater than 5mm (new tires can be replaced according to customer requirements, 18 level tires are more resistant to harsh working conditions), the wheel hub bearings are not loose, and the axle housing has no oil leakage.

3. Hydraulic system inspection requirements: Test the bucket lifting separately Tilting and other movements are smooth without any lag. When the control lever is pushed to the limit position at idle, the engine does not shut down, the hydraulic hose has no bulges or cracks, and there is no oil leakage at the joint.

4. Inspection requirements for working device and frame: The trapezoidal wear-resistant steel structure of the bucket should be free of deformation, the thickness of the bottom wear-resistant steel plate should be greater than 10mm, and the pin shaft should be inspected There is no abnormal noise when the bearing clearance shakes, at the hinge. The welding point has no cracks or repair marks.

5. Requirements for driving and safety system inspection: Good parking brake, sensitive brake response during driving, LED work light The dashboard displays normally, and the fault code can be read
