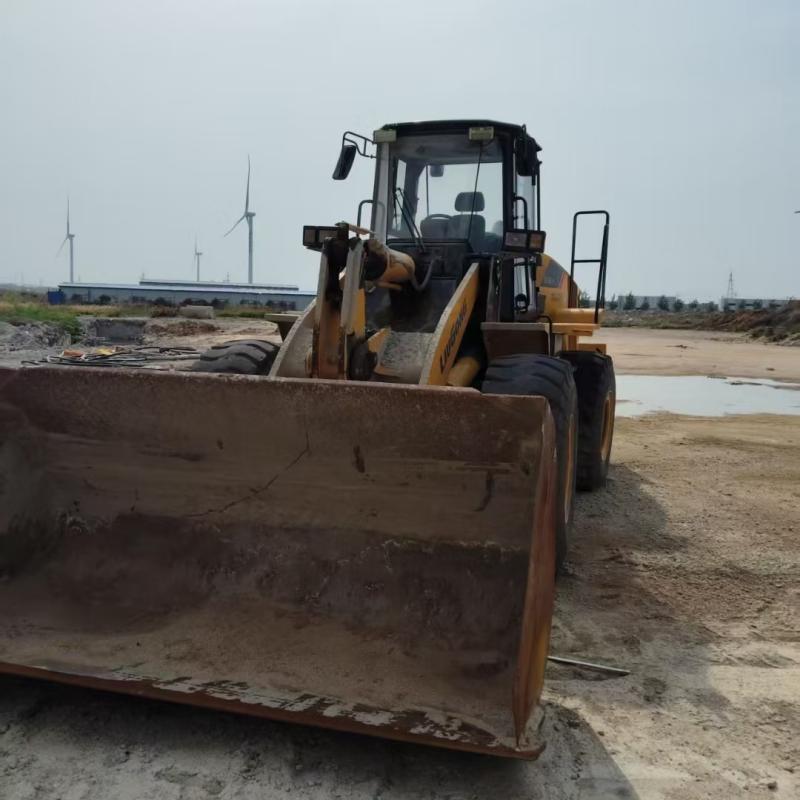

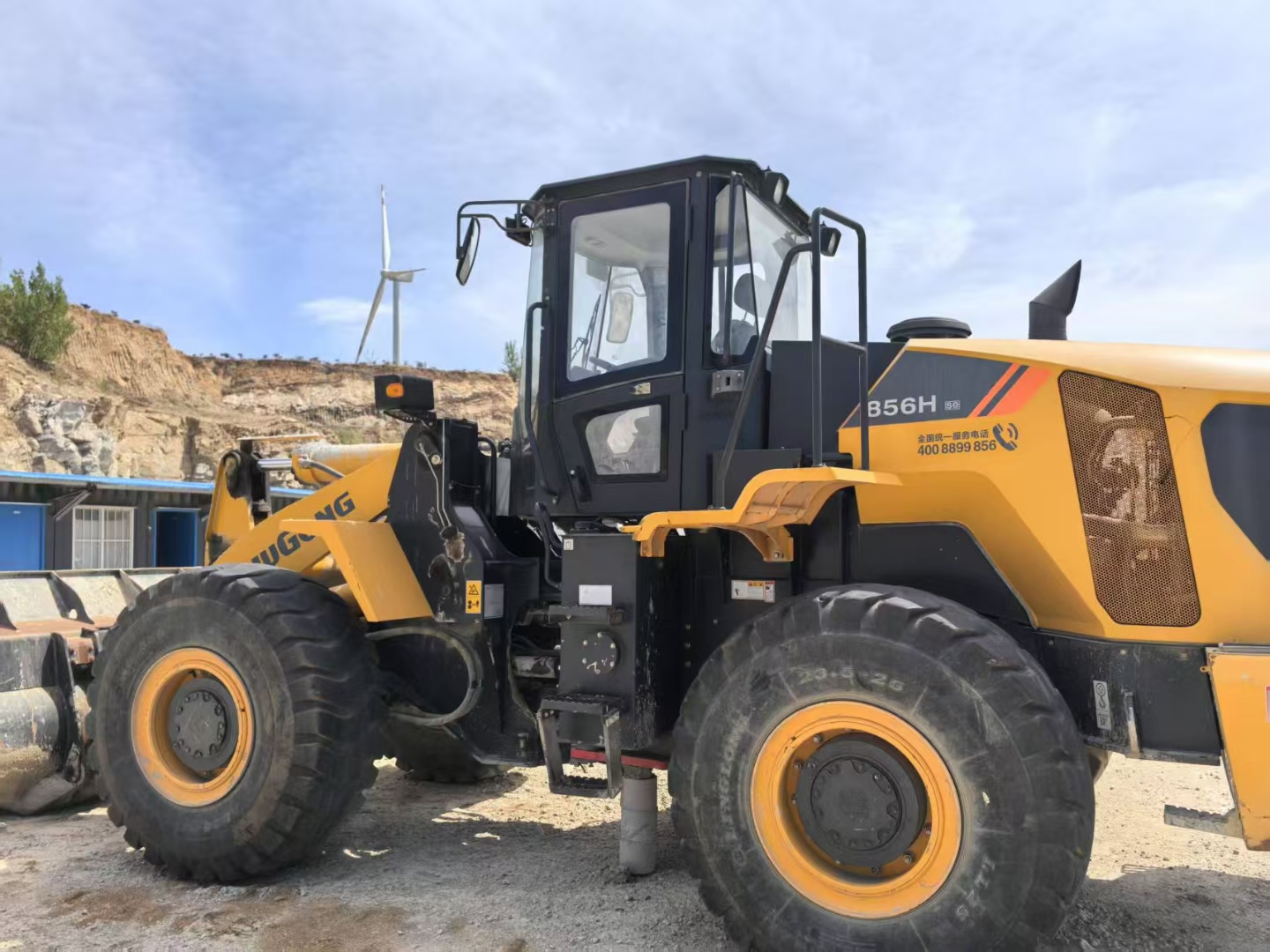

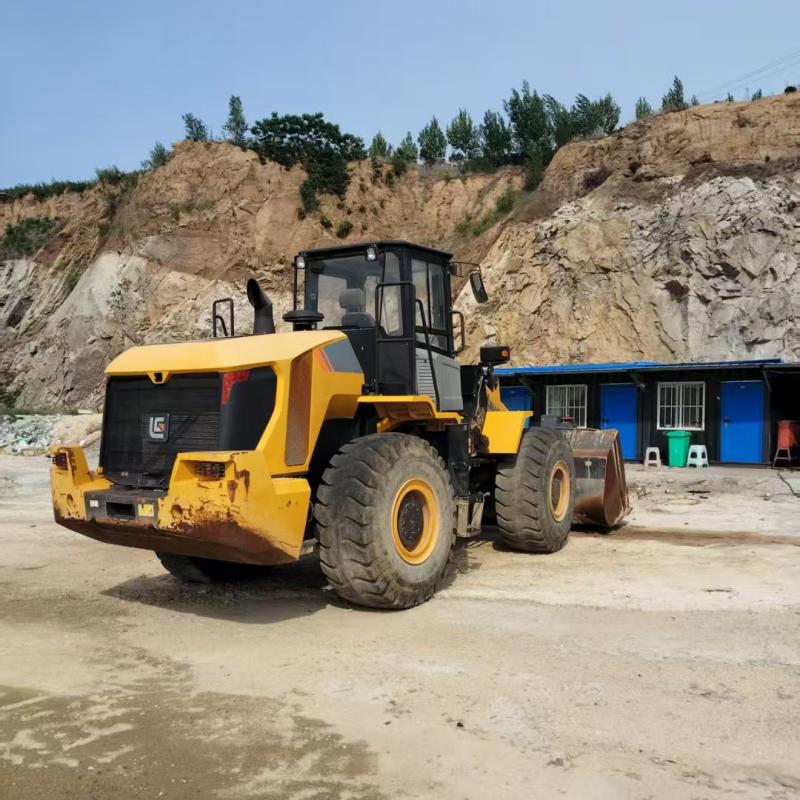

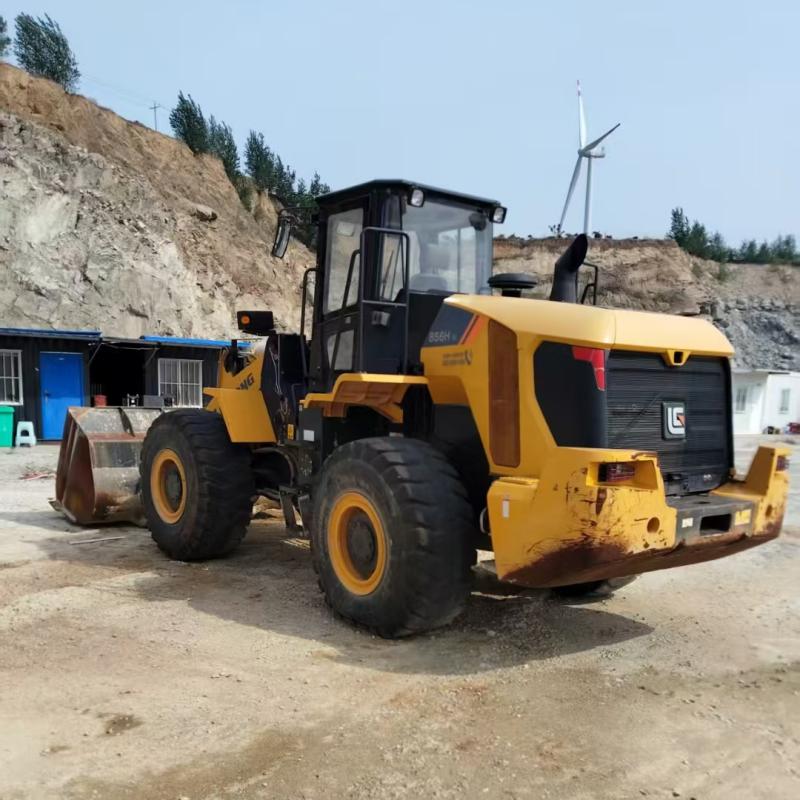

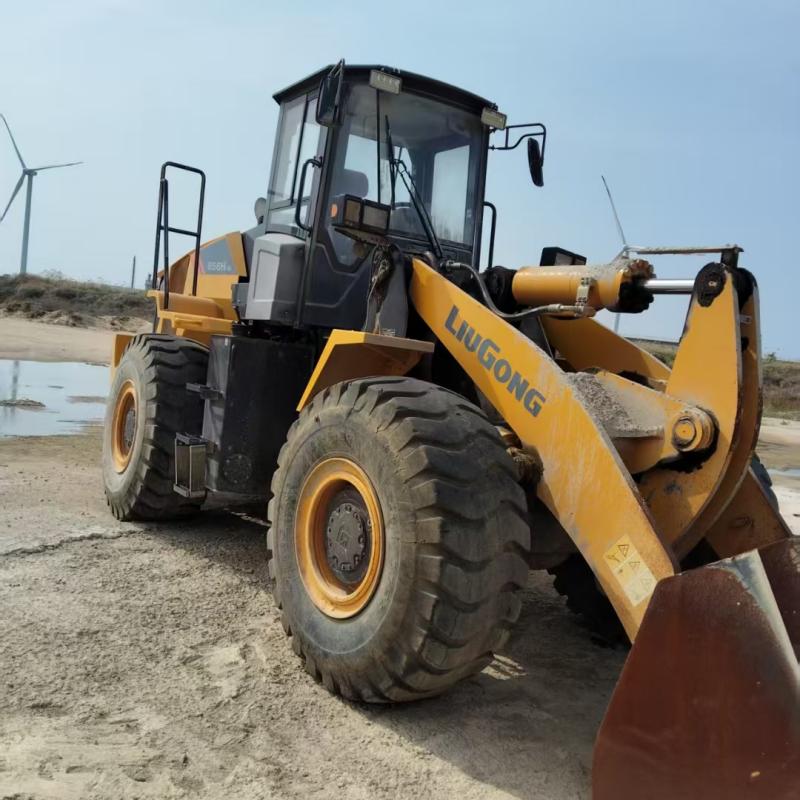

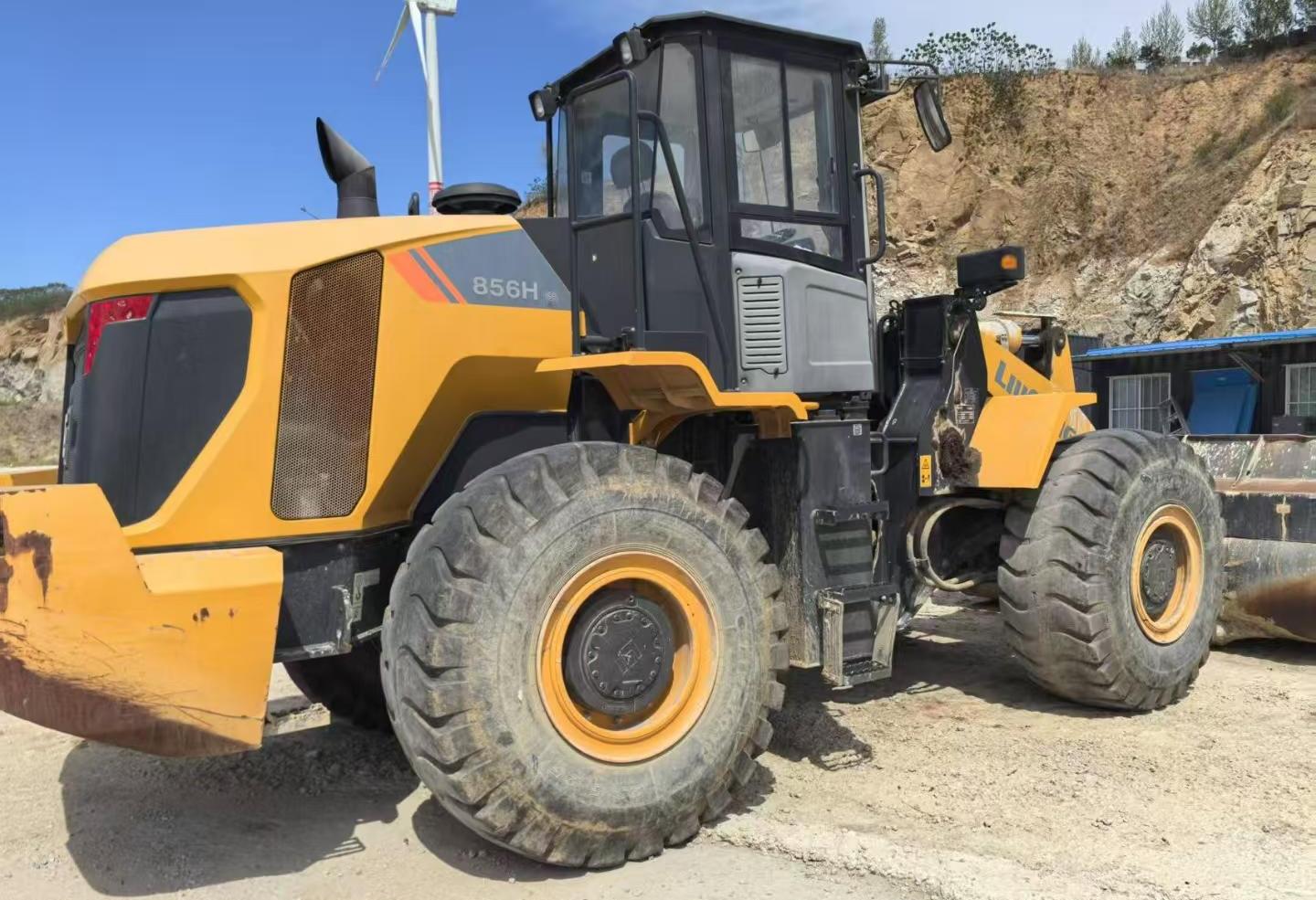

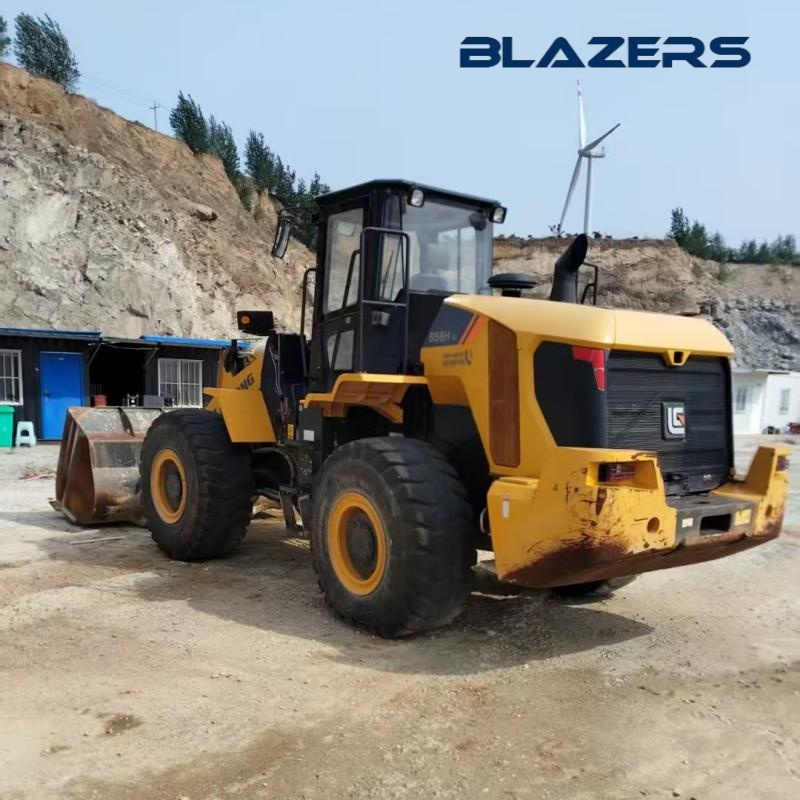

2020 Used Wheel Loader Liugong 856H Snow Removal Operation For Nordic Region

2020 Used Wheel Loader Liugong 856H Snow Removal Operation For Nordic Region

Product Attributes :

Performance characteristics:

The LiuGong 856H wheel loader is the flagship 5.5-ton loader of the LiuGong H series. It uses a world-class Cummins engine with a maximum power of 184 horsepower and a torque reserve coefficient that can meet the requirements of instantaneous overload. It has advanced technology and excellent matching, and can easily cope with various harsh working conditions and environments. The product is sturdy and reliable. Equipped with the world-renowned ZF gearbox and drive axle. The 4WG200 gearbox has 4 forward gears and 3 reverse gears. For frequent forward and reverse switching operations, the subdivision of forward and reverse gears is particularly important for its economy and engine life. In addition, electric gear shifting is easy and effortless, with fast shifting and minimal impact; The AP400 drive axle is particularly suitable for heavy construction machinery. The ZF limited slip differential can convert driving force into greater traction even under harsh conditions, reduce tire wear, and provide multiple configuration options. Suitable working devices can be selected according to actual needs to meet the operational requirements of different working conditions.

Product Description

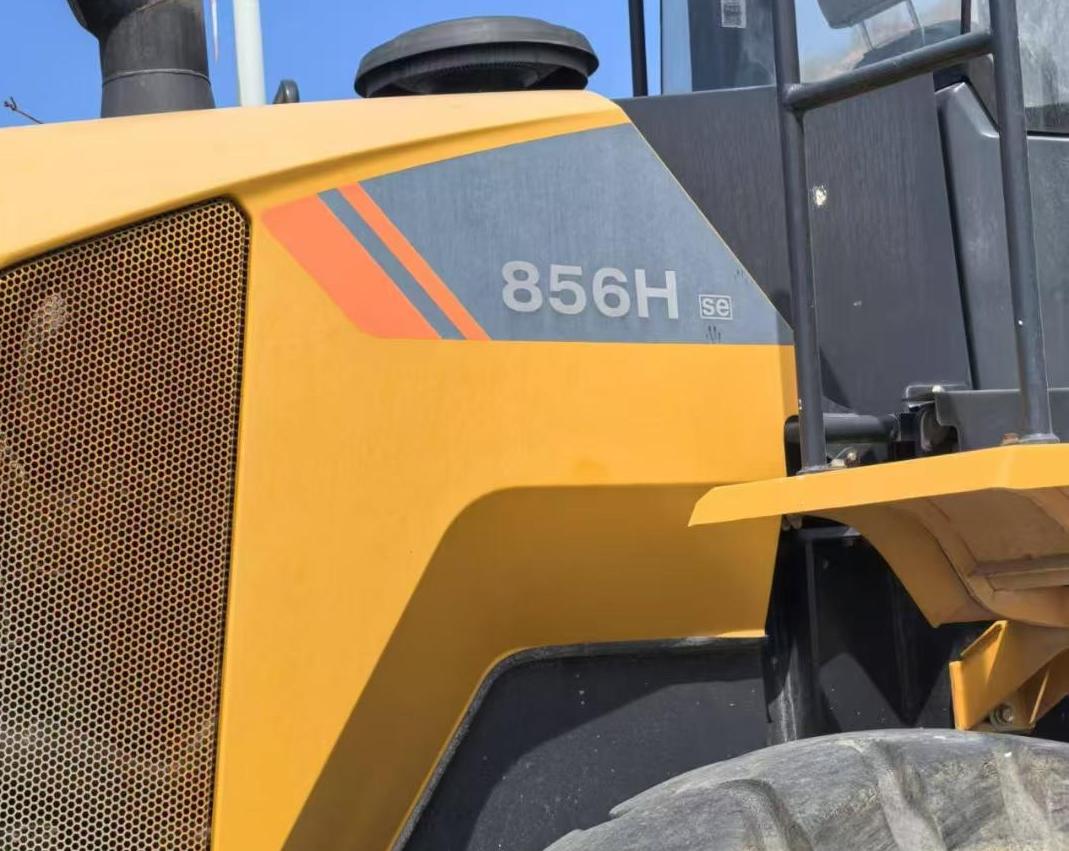

About Wheel Loader Liugong 856H
Model abbreviation 85

Rated load capacity (kg) 5000

Operating weight of the whole machine (kg) 16800

Bucket capacity (m ³) 1.8-5.6

Maximum excavation force (excavation force) (kN) 158

Maximum Traction Force (kN) 160

Engine (fuel) model Cummins 6CTA8.3-C215

Type 6-cylinder inline, water-cooled, 4-stroke, direct injection diesel engine

Rated power/speed (kW/r/min) 162/2200

Maximum torque/speed (N · m/r/min) 908/2200

Rated working pressure of hydraulic system (Mpa) 20

Number of boom cylinders - cylinder diameter x stroke (mm x mm) 160 x 785

Number of bucket cylinders - cylinder diameter x stroke (mm x mm) 180 x 540

Fuel Quantity - Fuel Tank Capacity (L) 280

Oil Quantity - Hydraulic System (L) 210

Oil Quantity - Cooling System (L) 45

Oil Quantity - Transmission System (L) 45

Machine parameters | Machine length (mm) 8060

Overall width (mm) 2976

Overall height (mm) 3467

Minimum ground clearance (mm) 431

Bucket width (mm) 2976

Wheelbase (mm) 3250

Track width (mm) 2150

Unloading height - Unloading angle is 45 ° (mm) 5243

Steering angle (°) 38

Minimum turning radius (based on the center of the outer wheel) (mm) 7010

Tire size 23.5-25

Steering system flow rate (L) 138.6

Speed (r/min) 2200

Braking system, driving brake form, fully hydraulic wet braking system

To ensure that our quality can satisfy customers with peace of mind

We will conduct a detailed inspection of each loader to ensure that it is in good working condition

System inspection items and requirements

1. Engine inspection requirements: Cold start test: Smooth start, smooth idle, no abnormal noise, no black smoke.

2. Inspection requirements for transmission and walking system: The gearbox gear shift should be smooth and there should be no slipping or abnormal noise. The tread depth is greater than 5mm (new tires can be replaced according to customer requirements, 18 level tires are more resistant to harsh working conditions), the wheel hub bearings are not loose, and the axle housing has no oil leakage.

3. Hydraulic system inspection requirements: Test the bucket lifting separately Tilting and other movements are smooth without any lag. When the control lever is pushed to the limit position at idle, the engine does not shut down, the hydraulic hose has no bulges or cracks, and there is no oil leakage at the joint.

4. Inspection requirements for working device and frame: The trapezoidal wear-resistant steel structure of the bucket should be free of deformation, the thickness of the bottom wear-resistant steel plate should be greater than 10mm, and the pin shaft should be inspected There is no abnormal noise when the bearing clearance shakes, at the hinge. The welding point has no cracks or repair marks.

5. Requirements for driving and safety system inspection: Good parking brake, sensitive brake response during driving, LED work light The dashboard displays normally, and the fault code can be read
