Low Price Used XCMG QY16C 16-Ton Truck Crane for South America

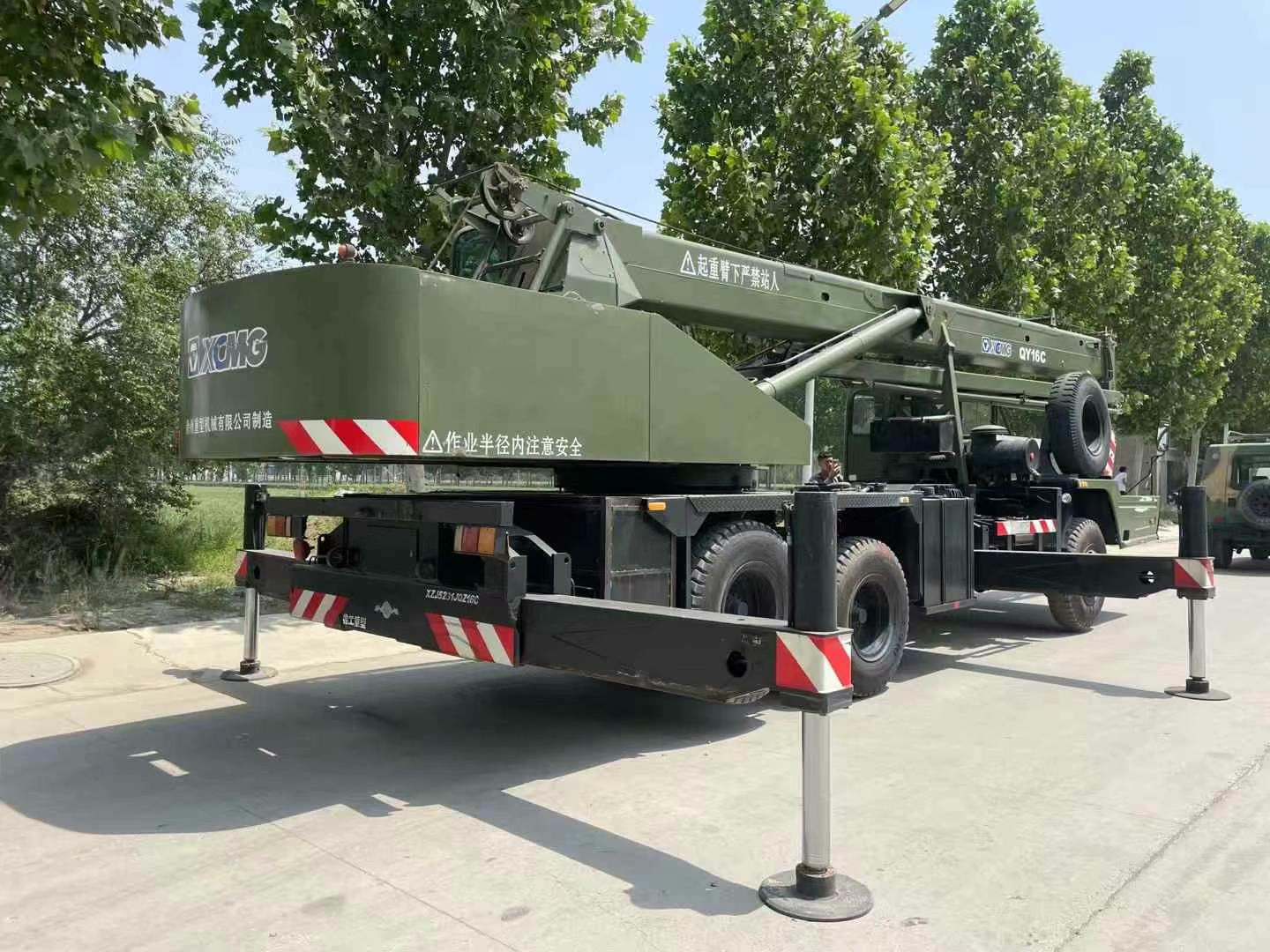

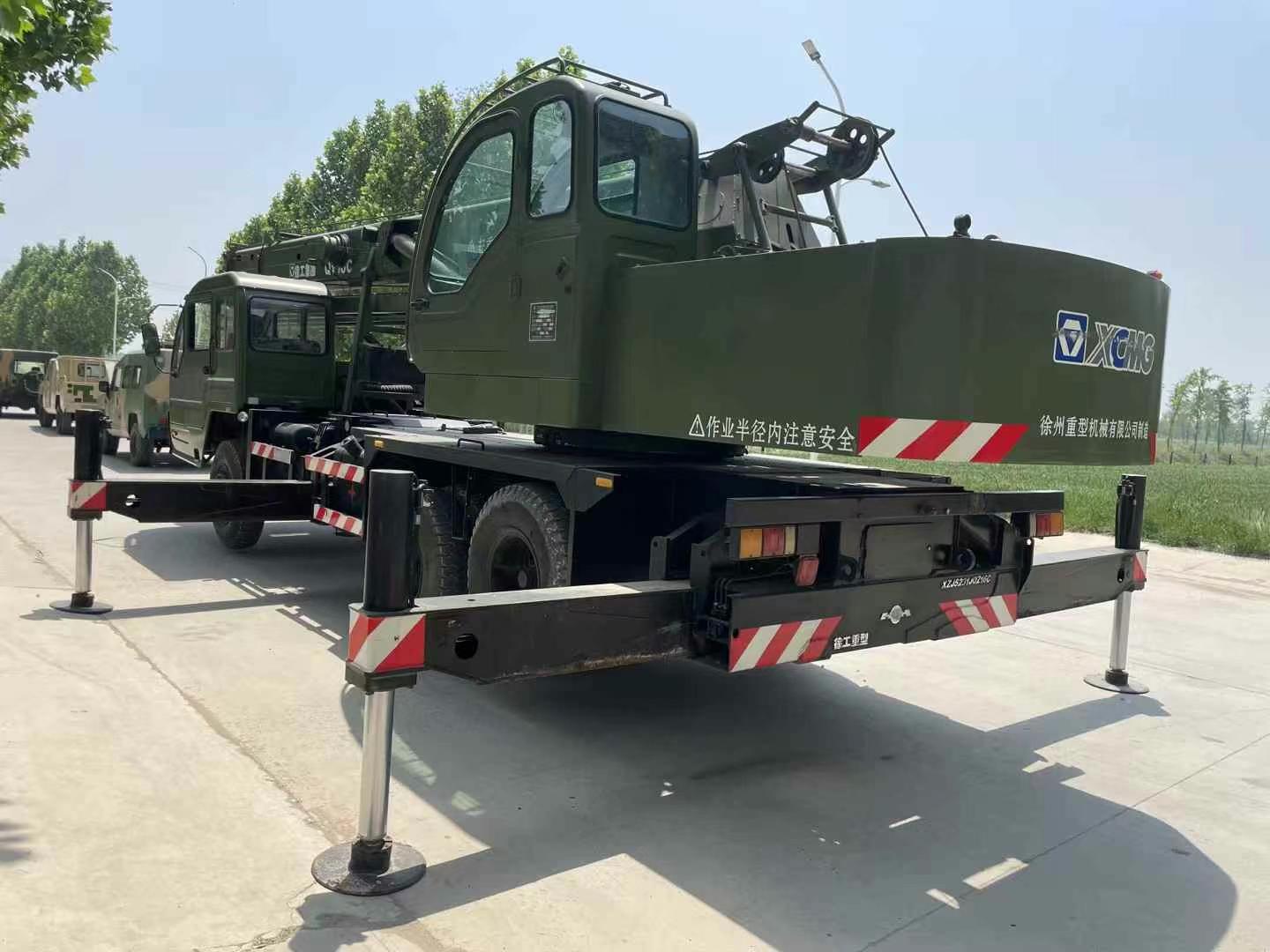

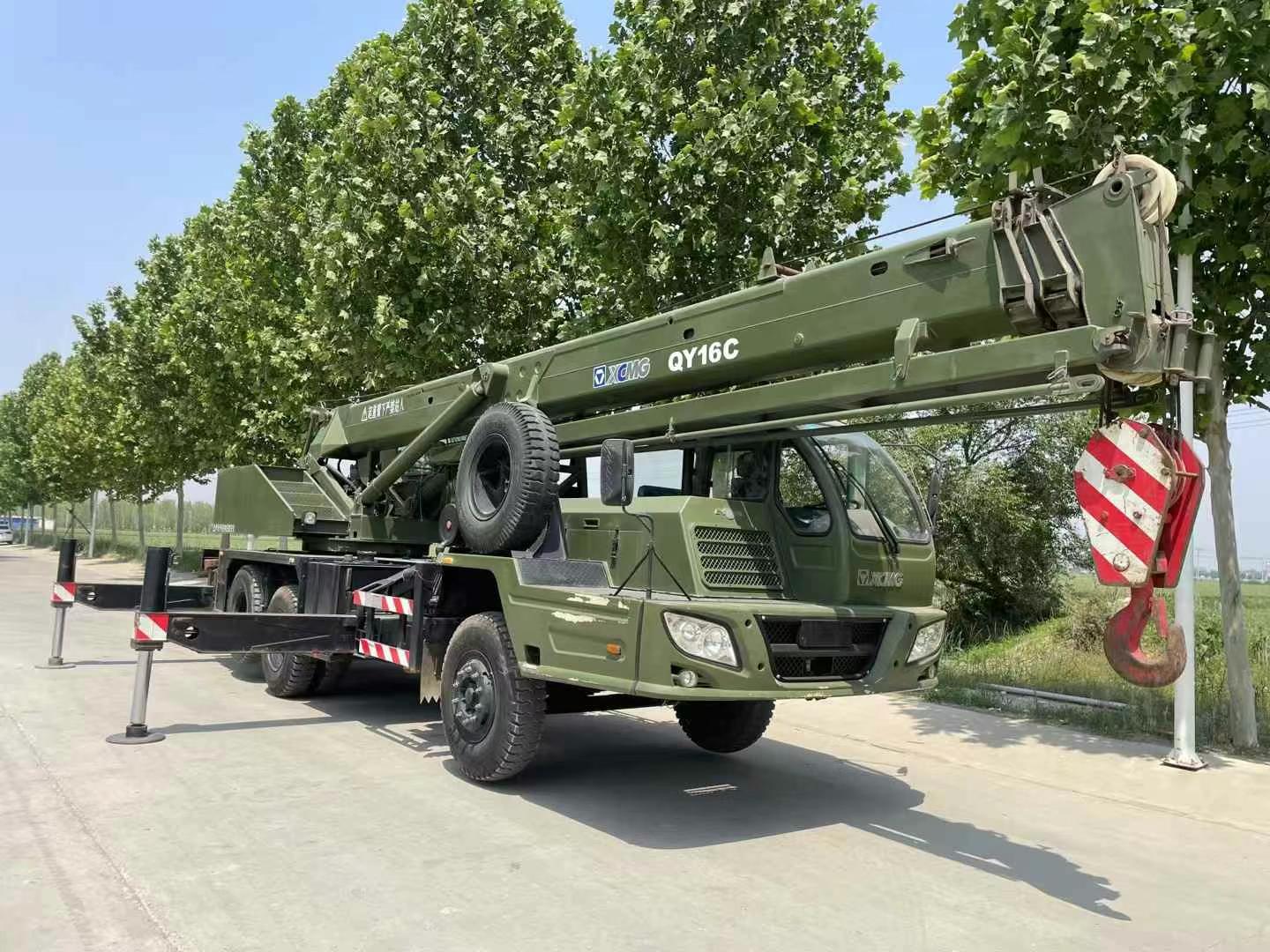

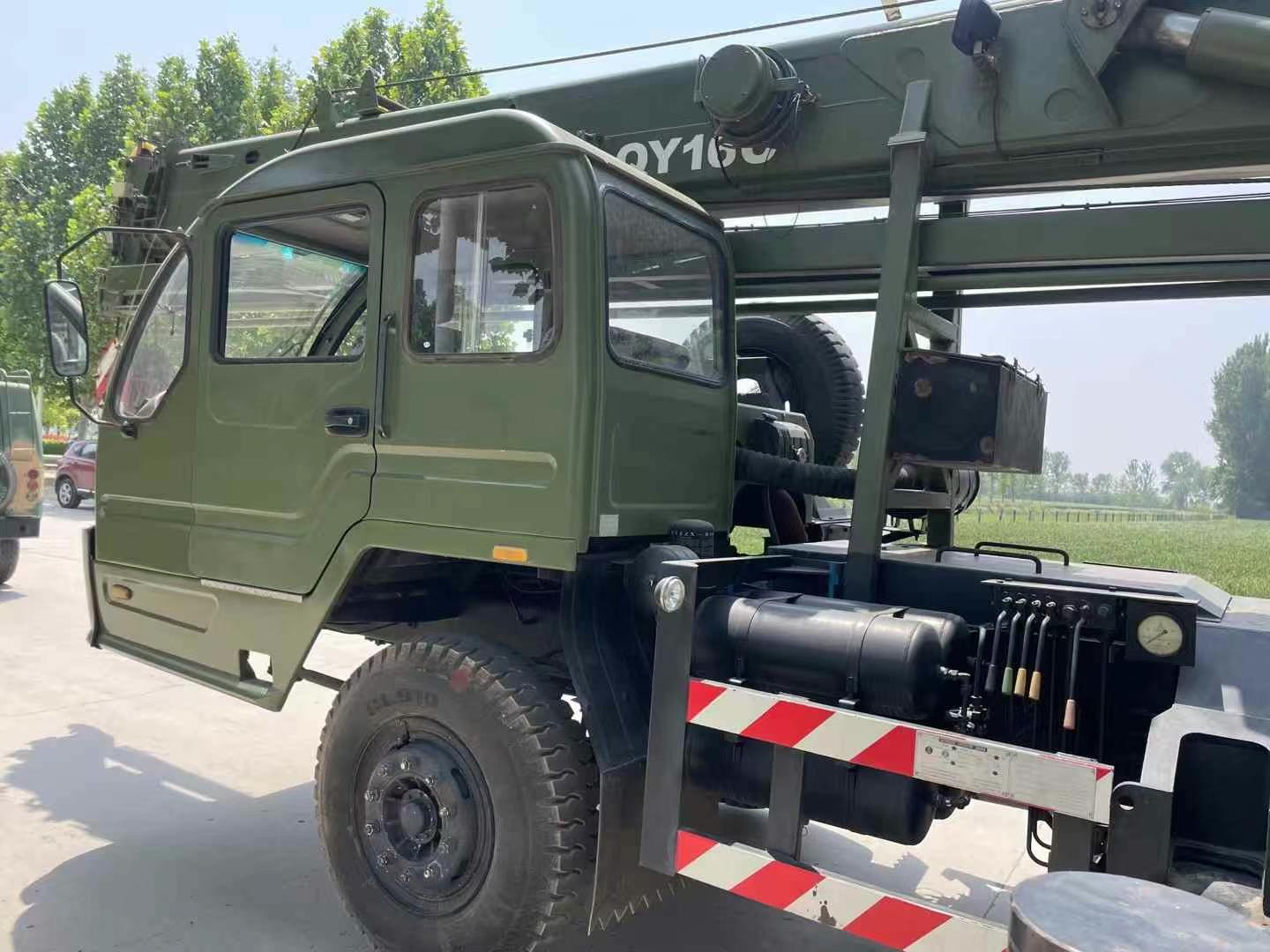

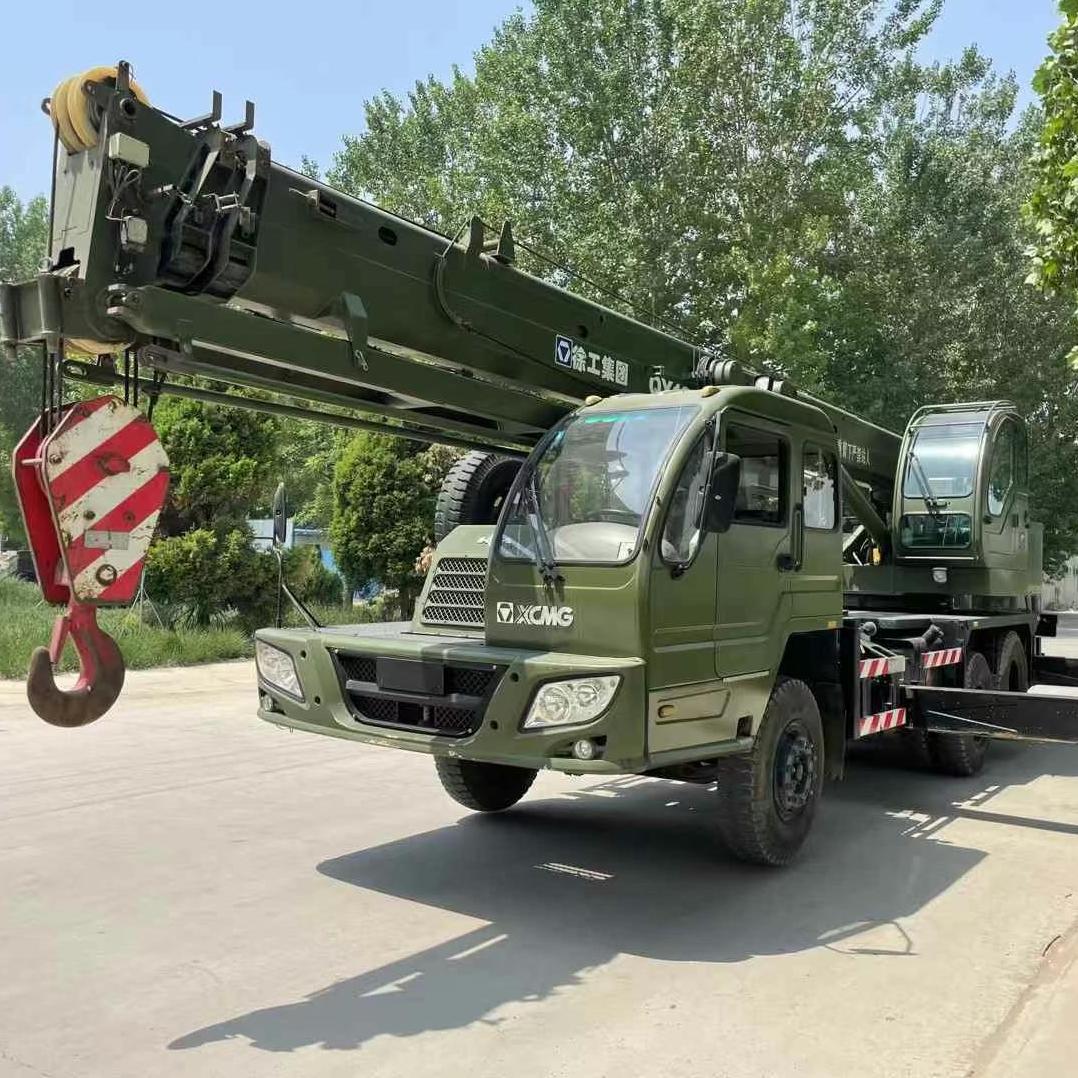

This is a retired XCMG QY16C truck crane from a certain Chinese unit. This unit has strict standards and regulations for the use and maintenance of equipment. Compared to purchasing brand-new construction machinery, the price of the retired construction machinery from this unit is more affordable. Although it is older, the construction machinery of this unit was designed and manufactured according to high standards, and even after retirement, it still maintains good quality. For some enterprises or projects with limited funds, they can obtain equipment with relatively better performance at a lower cost, thereby effectively reducing the initial equipment purchase cost and allocating more funds to other aspects of the project.

 XCMG QY16C 16-Ton Truck Crane Specification

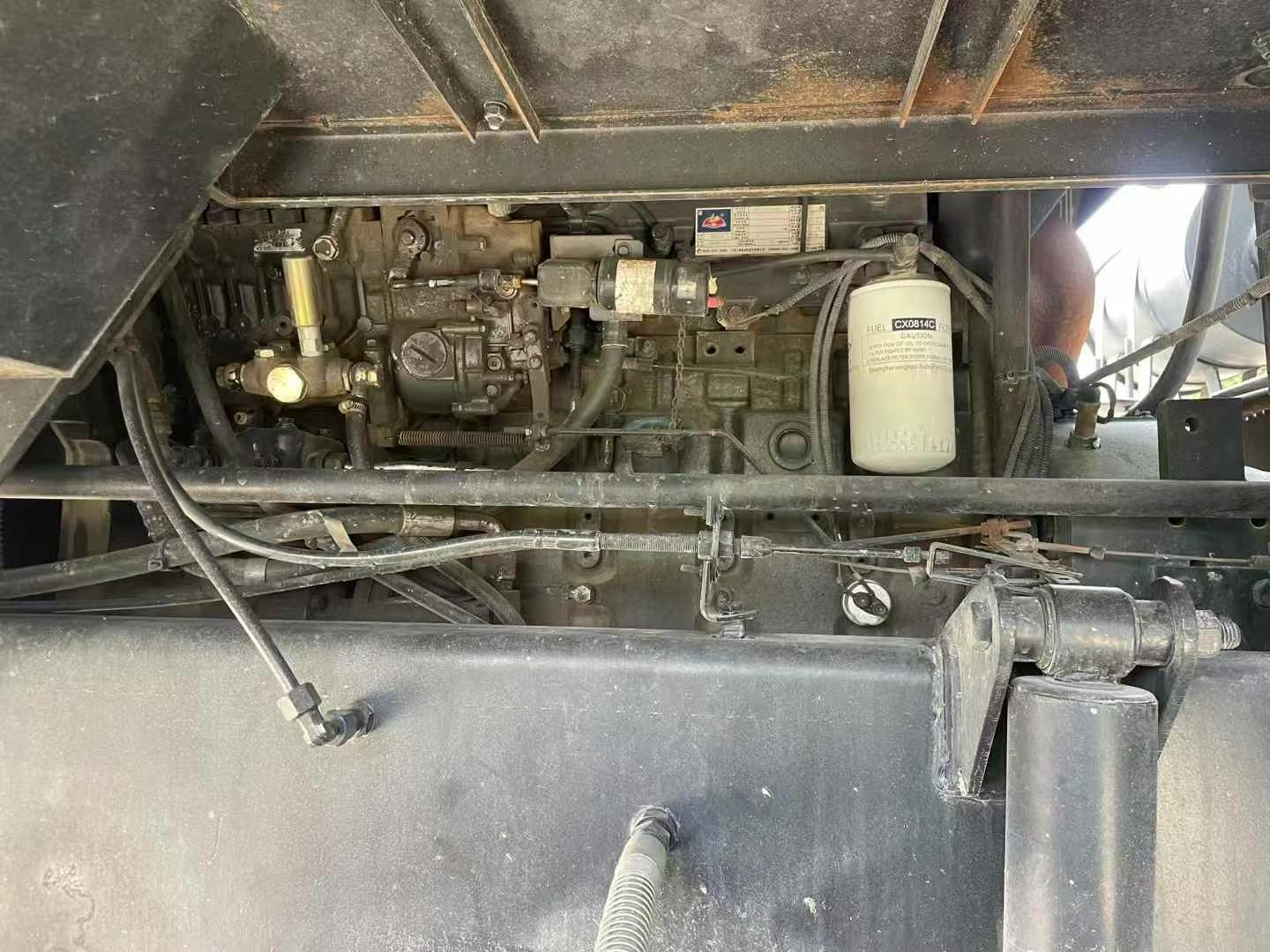

Engine model: Shangchai SC8DK230Q3 (Euro III)

Front axle load: 5240 kg

Leg span (longitudinal × transverse): 4.6m × 5.4m

Maximum lifting moment of the basic boom: 738 kN·m

Main boom length: 23.6m (can reach up to 30.6m)

Rotation speed: ≥ 2.5 r/min

Maximum speed of single-rope (main winch): 54/100m/min

Maximum speed of single-rope (auxiliary winch): 54/100m/min

Recovery/retraction time of the lifting boom: 60s

Full extension/full retraction time of the lifting boom: 75s

Maximum driving speed: 70 km/h

Maximum climbing slope: 24%

Approach angle: 21°

Departure angle: 10°

Minimum turning diameter: 20m

Minimum ground clearance: 270mm

Performance Features

The equipment adopts a three-section large-radius hexagonal boom. The main boom can extend to a maximum length of 32 meters, with a maximum lifting height of 40 meters. The boom is made of high-strength structural steel with a U-shaped cross-section, which is both strong and capable of enhancing the lifting capacity. The overall center of gravity is low, ensuring good stability. An energy-saving hydraulic system is employed, featuring a dual pump confluence function. It is fast, efficient, and operates smoothly with precise micro-motion; it can achieve confluence of both the telescopic and luffing pumps, and the main and auxiliary winches operate at high speeds. A six-speed fully synchronized gearbox is used, providing superior driving performance.

Daily Maintenance of Truck Cranes

1. Regularly check the tightness of all fastening parts, especially the tightening bolts of the slewing bearing.

2. Regularly inspect and test the operation of the braking system of the lifting mechanism to ensure safe and reliable braking.

3. Every week, perform maintenance on the lower surface of the main boom. Every month, perform maintenance on the main and auxiliary hooks, transmission shafts, the steel wire rope of the entire vehicle, the boom and the pin of the oil cylinder.

4. Replace the gear oil every 12 months. Regularly check the oil level. If the oil level is low, replenish it.

5. Under normal operation conditions, filter or replace the hydraulic oil once every 6 months.

6. Before each operation, check all safety devices of the crane. If any device is damaged or ineffective, repair it to a qualified state before proceeding with the operation.
