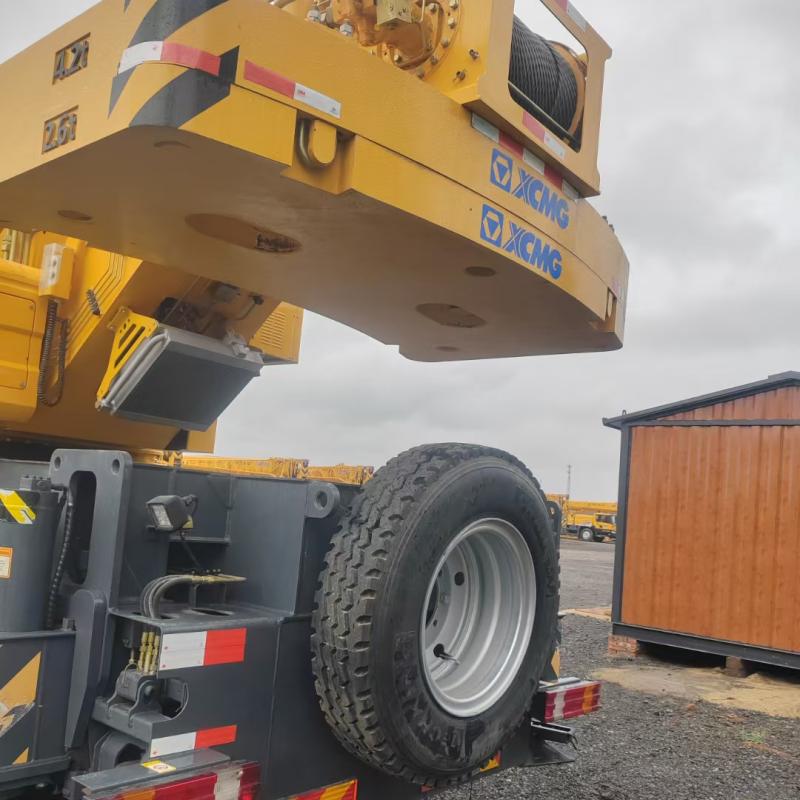

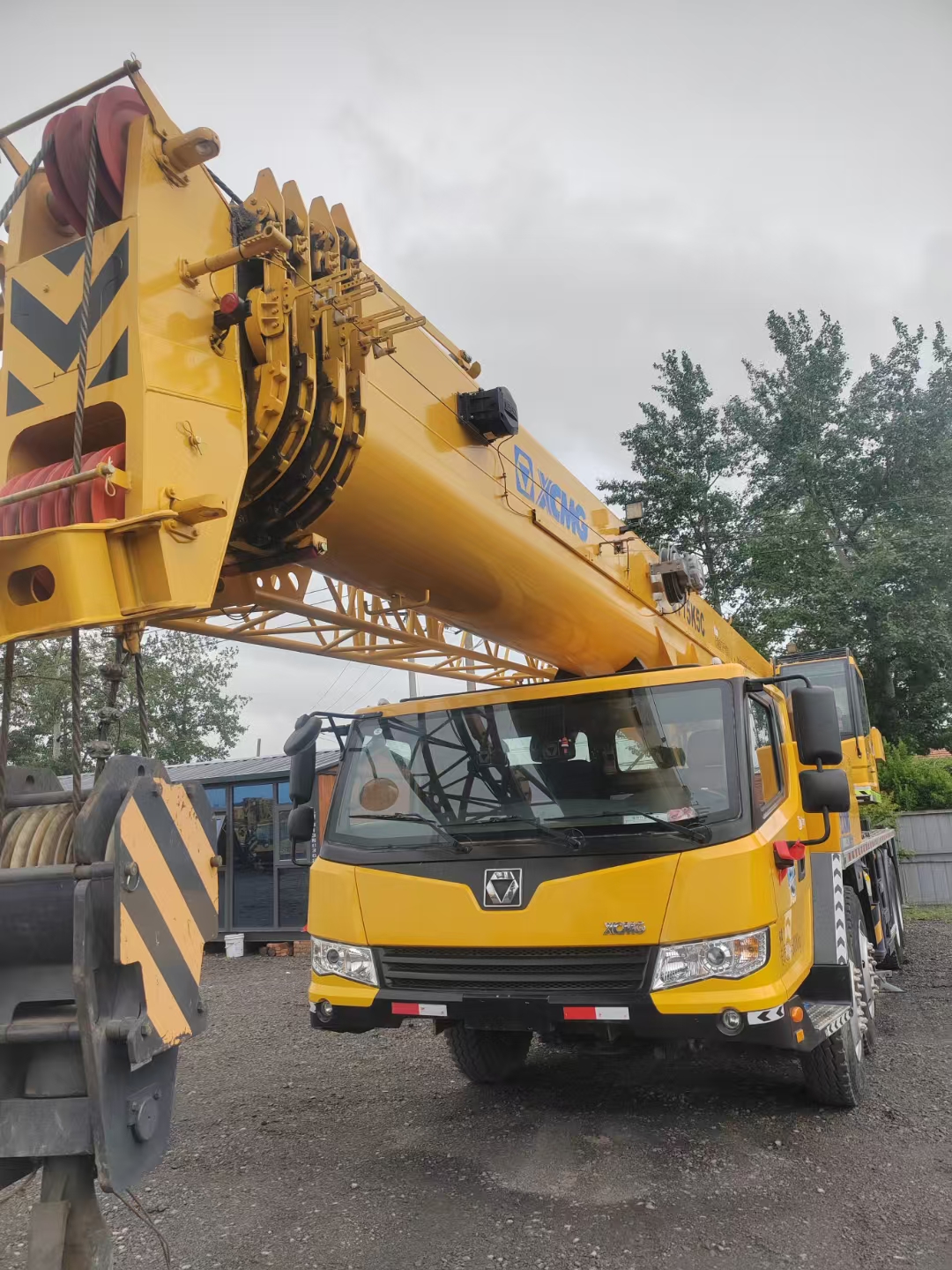

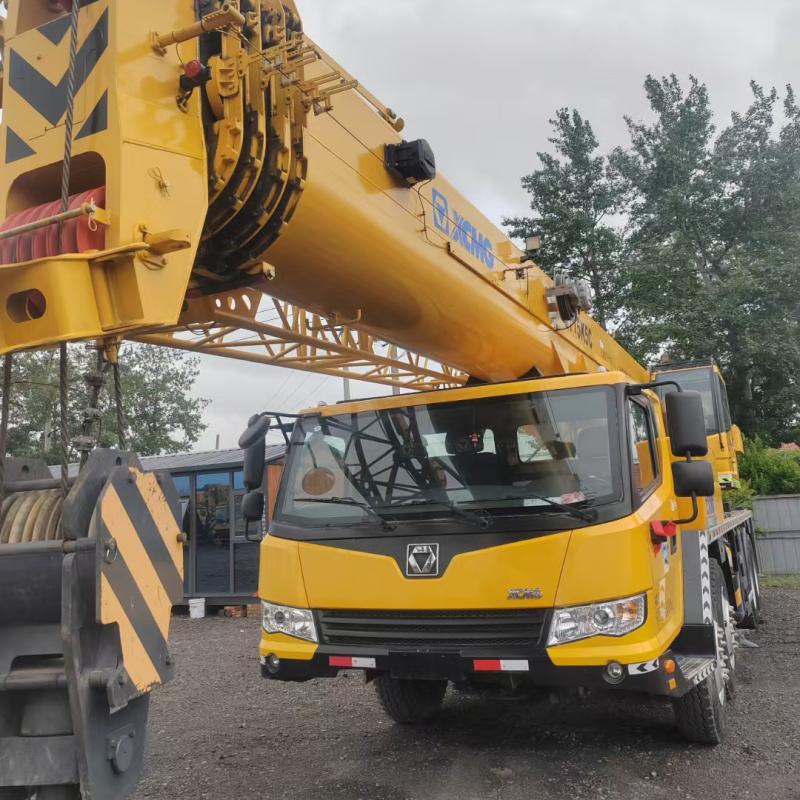

The QY55K5C_2 is equipped with a 48-meter main boom and a 15-ton combined counterweight.
It can fully extend the boom with a 10-meter range to lift 11.5 tons.
It can cover 25 tons at the bottom and 70 tons at the top, and even part of the 80 tons.
It is a small all-purpose model that is convenient for relocation.

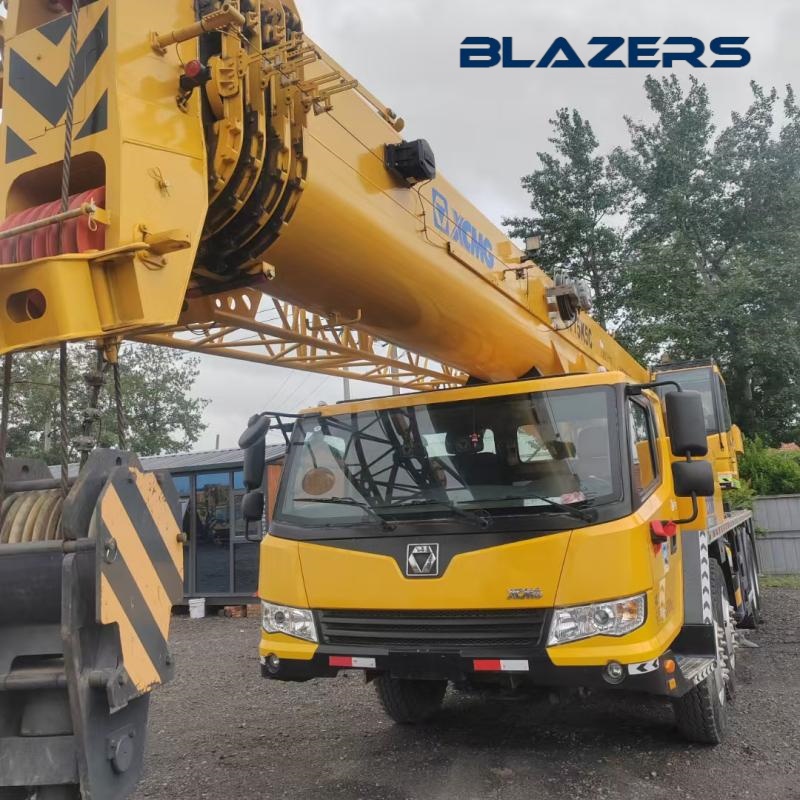

XCMG QY55KC-2 15-Ton Truck Crane Specification
Equipment Model: QY55KC
Model abbreviation: 55
Engine model: D10.38-50
Rated power (kW) : 274
Rated torque (N·m/r/min) : 1560/1200-1500
Curb weight of the vehicle : 42700 kg
Front axle axle load : 8585 kg
The axle load of the middle and rear axles : 12,765 kg
Rated Total lifting capacity : 55000 kg
Maximum lifting moment of the basic boom : 2033 kN·m
Maximum lifting height of the basic arm : 11.9 m
Maximum lifting moment of the longest main boom : 1225 kN·m
Maximum lifting height of the main arm : 44.5 m
Maximum lifting height of the auxiliary arm : 15.8 m
Turntable tail turning radius : 3625 mm
Maximum speed of a single rope (main hoist) : ≥ 130 m/min
Maximum speed of a single rope (auxiliary hoist) : ≥ 130 m/min
Boom lift/drop time : ≤ 50s
Boom full extension/retraction time : ≤ 100s
Rotary speed : ≥1.6 r/min
Maximum driving speed : ≥ 90 km/h
Maximum climb : 45%
Approach Angle : 19°
Departure Angle : 14°
In order to ensure that our quality can reassure and satisfy customers,
We will conduct a detailed inspection of each crane to ensure that each crane is in good working condition.
System Inspection Items and Requirements
1.Engine inspection requirements:
Cold start, successful ignition at the first attempt, smooth idle speed without black smoke, no emulsification on the oil dipstick (normal water resistance).
There are no signs of disassembly on the cylinder head screw and the Angle screw.
There is no oil leakage or abnormal noise from the turbocharger.
2. Appearance inspection requirements:
There should be no welding, touchdown painting or deformation marks on the load-bearing parts such as the main beam, outriggers and turntables.
The original factory paint surface under the sealing strips of the door and window frames should be intact.
There are no scratch marks on the chromium plating layer of the hydraulic cylinder.
3. Safety device test:
Height limiter: When the hook is raised to the limit position and triggered, there will be audible and visual alarms in the cab.
Three-turn protector: When the steel wire rope is released until only three turns remain, the system automatically locks (anti-disengagement cylinder).
Level: When adjusting the base, observe the position of the bubbles. The level is normal.
4. Inspection requirements for the hydraulic system:
Observe the fluctuations of the pressure gauge under no-load and full-load conditions respectively, and there should be no abnormal shaking.
Take a hydraulic oil sample to check its cleanliness and find no abnormal impurities.
5. Structural system inspection requirements:
There should be no cracks or weld repairs at the hinge points of the large and small arms, the box bodies of the outriggers and other force-bearing points.
The slewing bearing started and rotated without abnormal noise.
After stopping, the radial clearance was measured to be less than 3mm, and the wiring harness was wrapped completely.
The list of vulnerable parts must be replaced before the machinery is dispatched.
Replace the engine oil, hydraulic oil, oil filter element, diesel filter element, air filter element, and all other worn parts with new ones.
