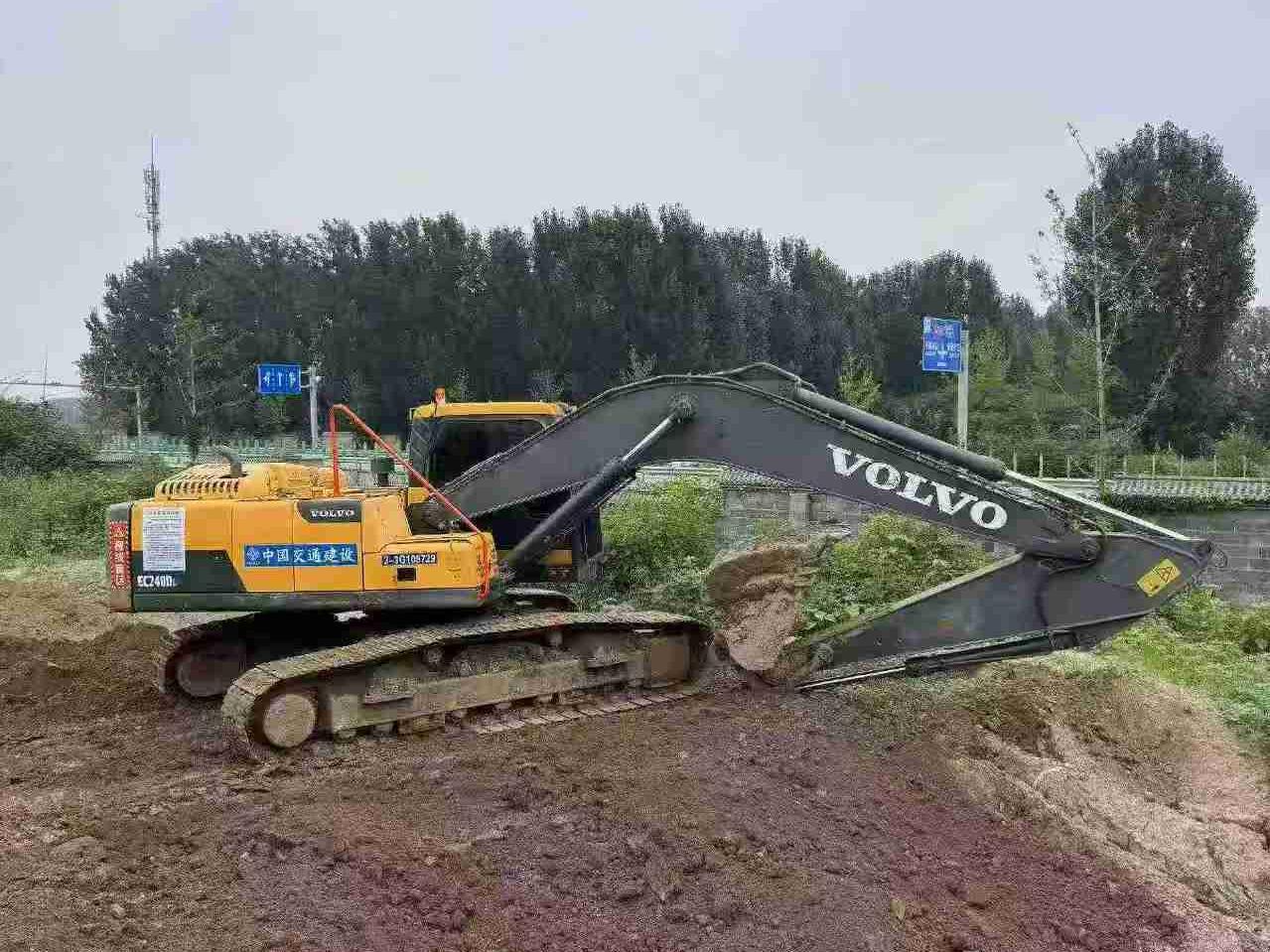

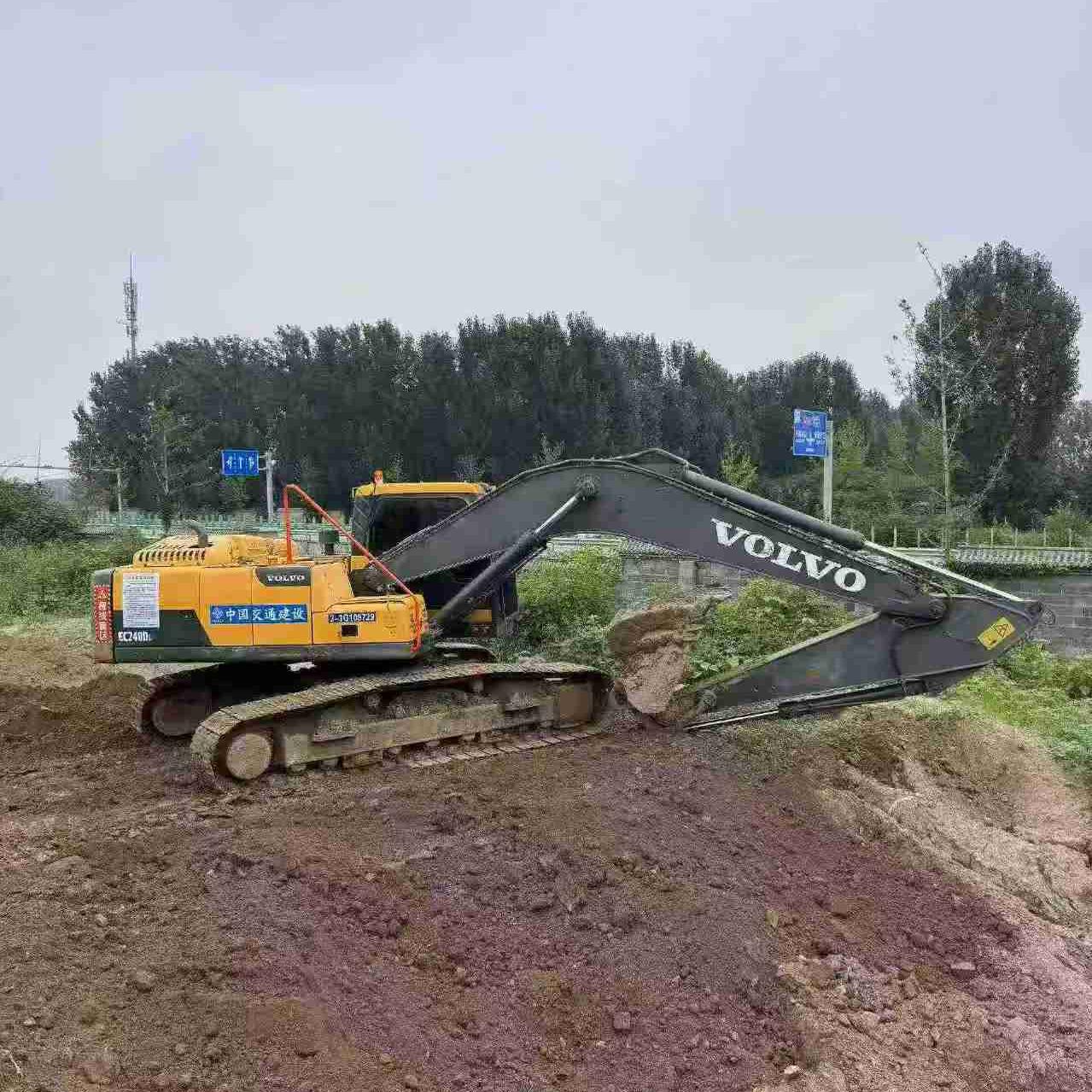

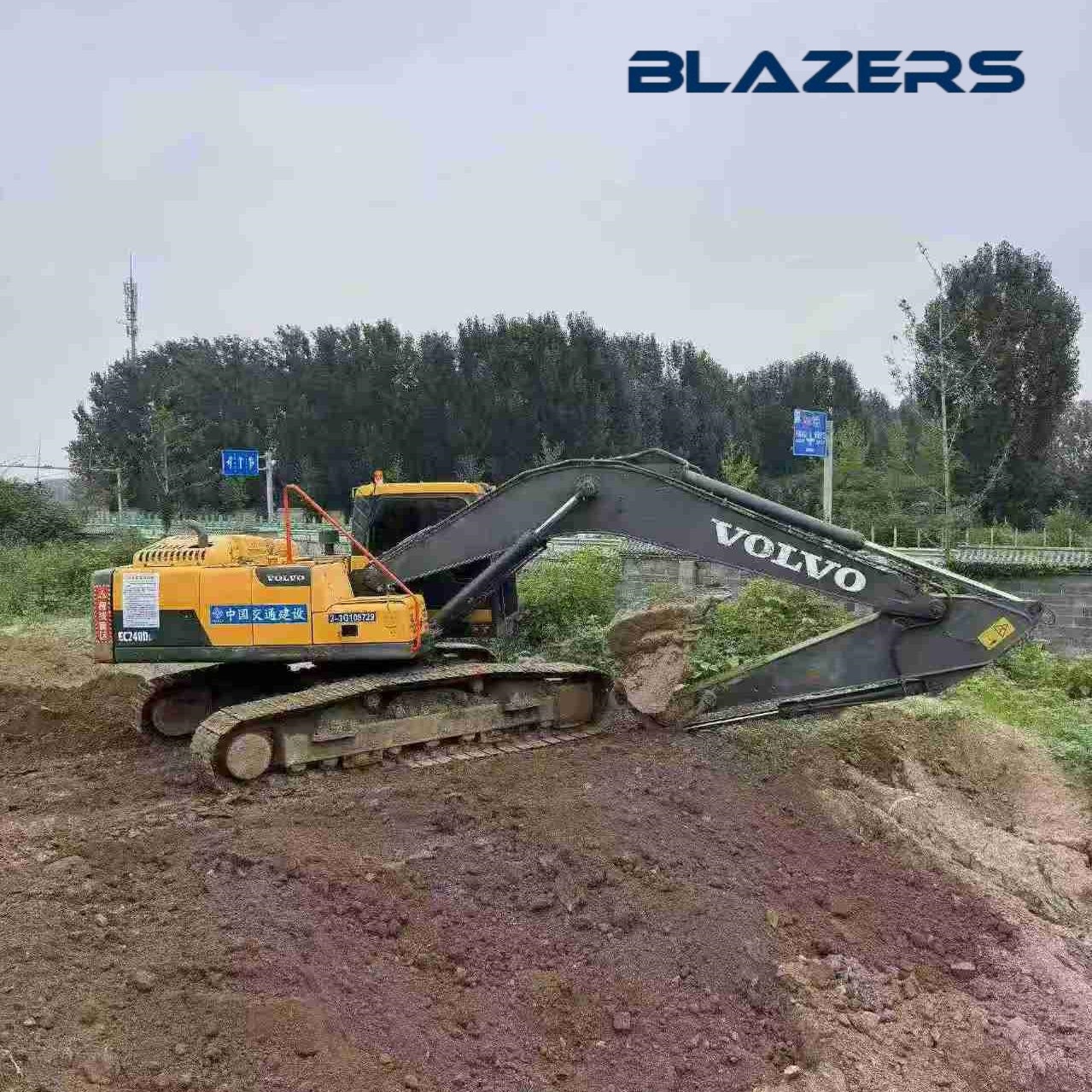

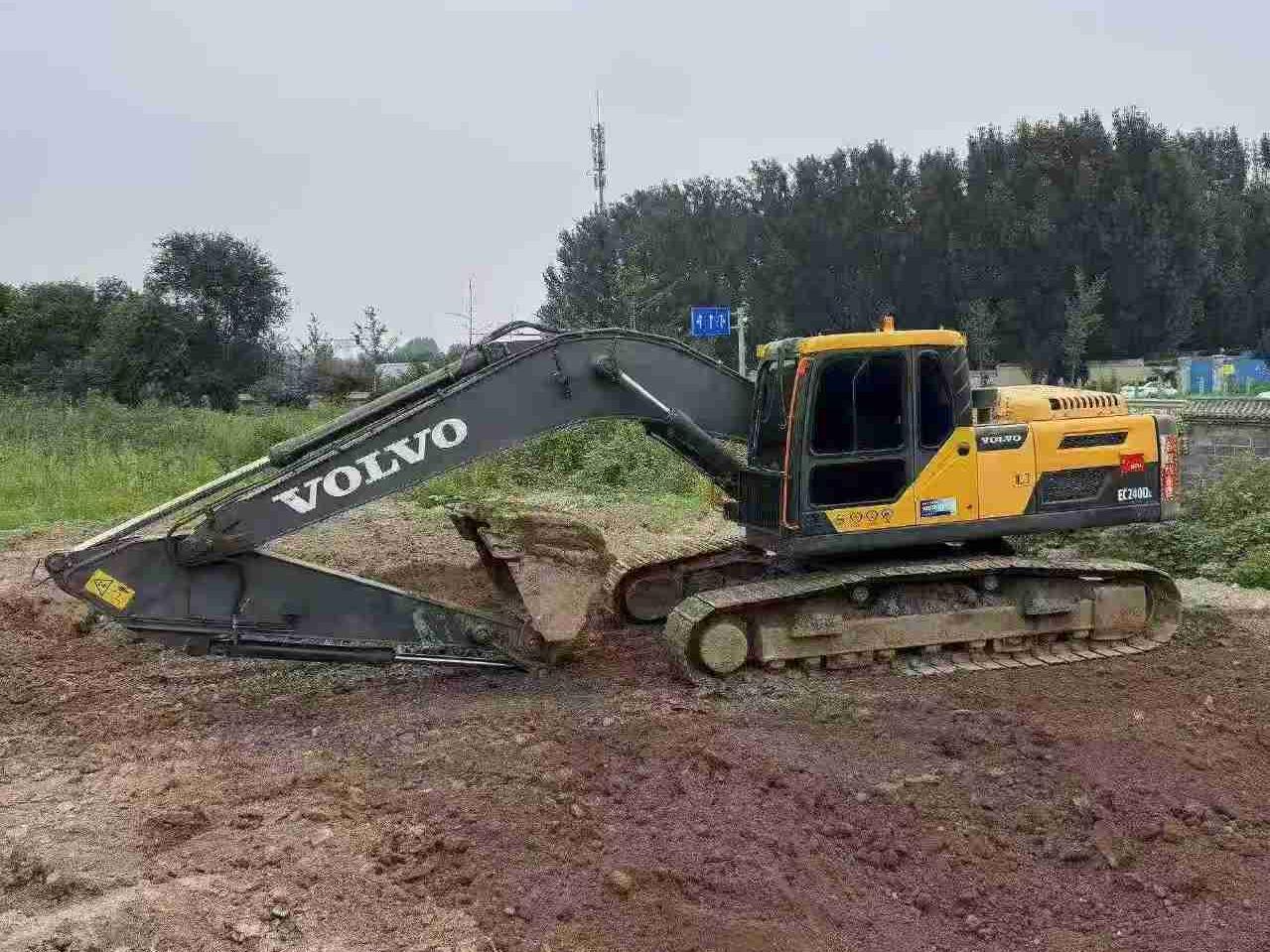

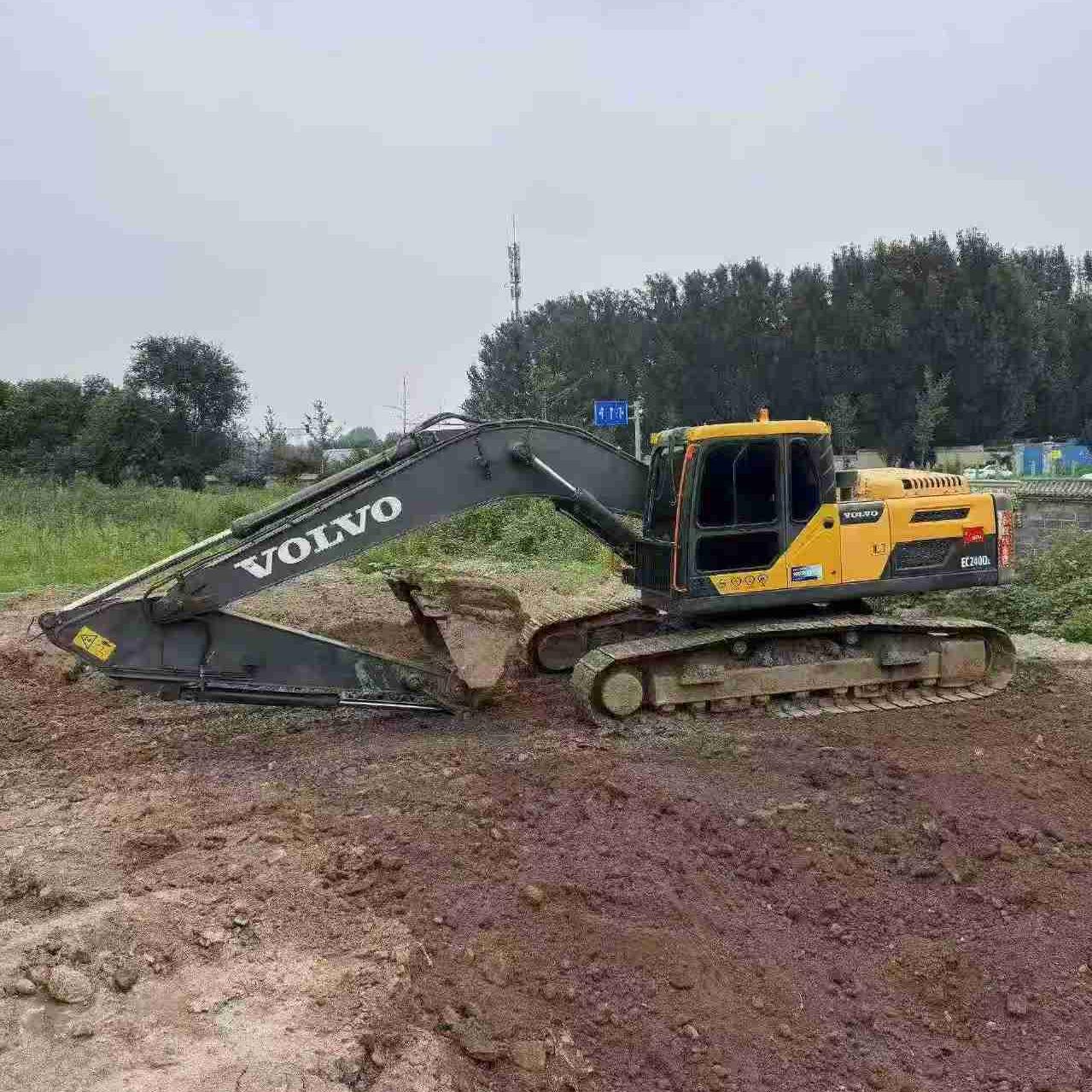

Abount Volvo EC240
Description

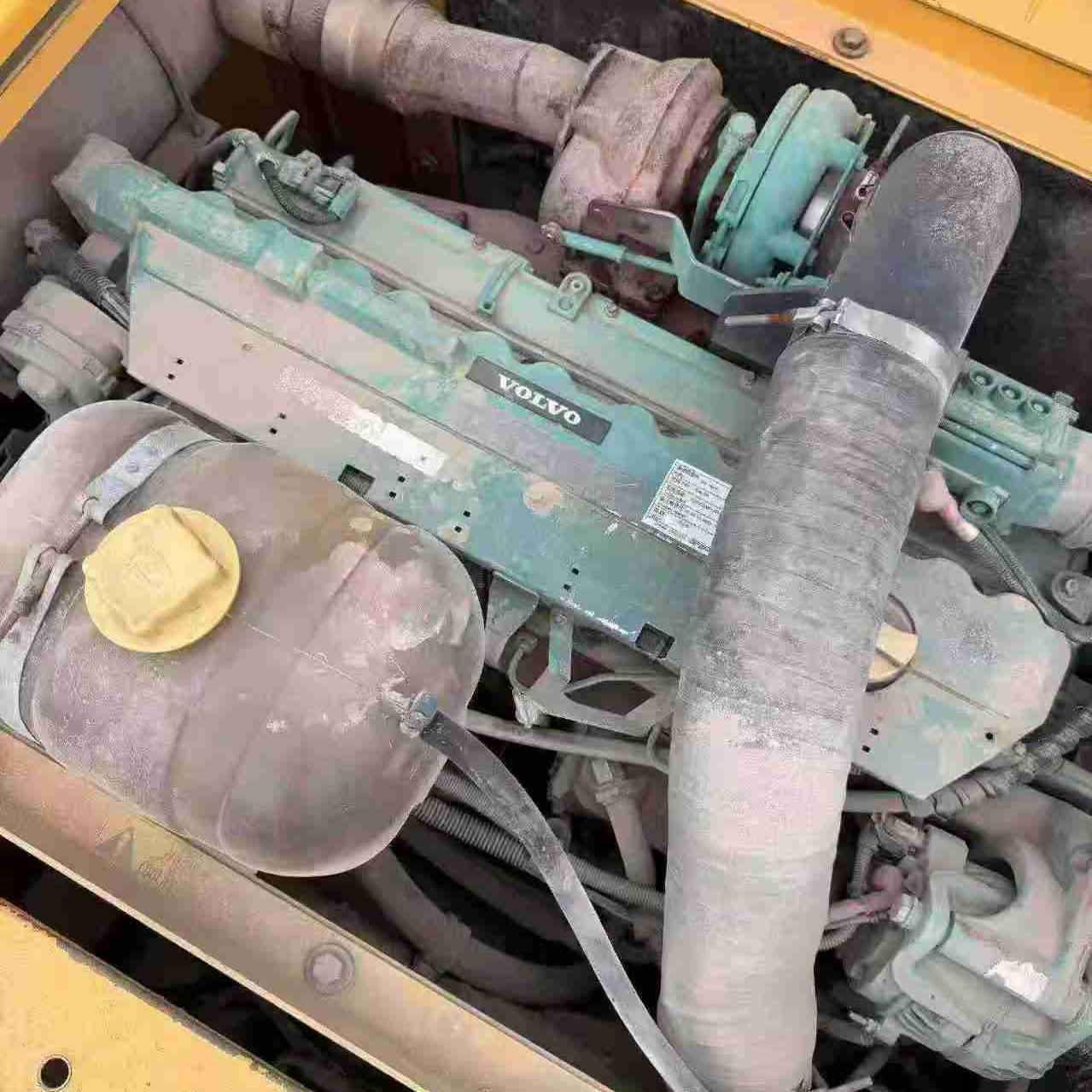

- Engine Model: Volvo D7E EBE2
- Rated Power: 130 kW at 2000 rpm
- Cylinder Bore×Stroke: 108×130 mm
- Number of Cylinders: 6
- Displacement: 7.1 L
- Operating Weight: 24500 - 25002 kg
- Bucket Capacity: 1.2 m³
- Ground Contact Pressure: 49.2 Kpa (with 600 - mm track shoes)
- Slewing Speed: 11.3 rpm
- Gradeability: 35°
- Bucket Digging Force: 166 kN
- Arm Digging Force: 115 kN
- Maximum Traction Force: 208.9 kN
- Travel Speed: 3.3 km/h

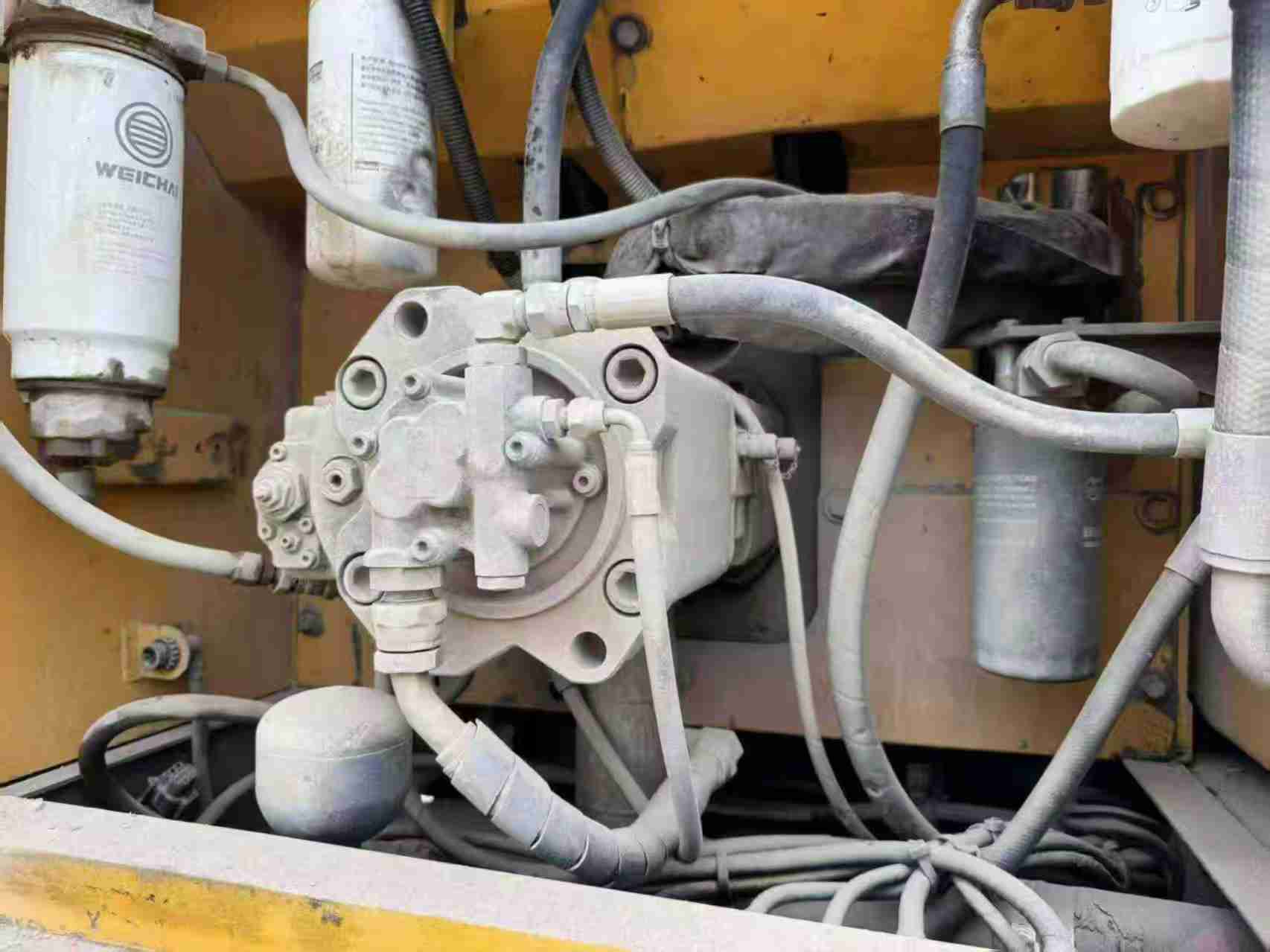

- Main Pump Maximum Flow: 2×230 + 20 L/min
- Travel Hydraulic Circuit Pressure: 34.3 Mpa
- Slewing Hydraulic Circuit Pressure: 26.5 Mpa
- Working Hydraulic Oil Circuit Pressure: 32.4/34.3 Mpa
- Pilot Oil Circuit Pressure: 3.9 Mpa
- Fuel Tank Capacity: 380 L
- Hydraulic Tank Capacity: 190 L
Applications
Construction projects (foundation digging, site preparation)
Mining and quarrying (extracting aggregates, overburden removal)
Road building (excavating trenches, grading)
Demolition (with specialized attachments)
Agricultural and forestry operations (land clearing, pond digging)
Performance characteristic
Powered by a reliable Volvo D7E EBE2 engine, it delivers a rated power of 130 kW at 2000 rpm, ensuring sufficient power for a variety of tasks. With an operating weight ranging from 24500 to 25002 kg, it strikes a good balance between stability and maneuverability.
Its bucket capacity is typically around 1.2 m³, and it boasts strong digging forces – 166 kN for the bucket and 115 kN for the arm, making it efficient in handling materials like soil, gravel, and rocks.
In terms of performance, it has a slewing speed of 11.3 rpm, a travel speed of 3.3 km/h, and can handle gradients up to 35°, adapting well to different job site conditions.
The excavator also features a fuel tank capacity of 380 L and a hydraulic tank capacity of 190 L, providing decent operating hours. Its overall transport dimensions (length×width×height: 10130×3190×3040 mm) make it relatively easy to transport between job sites.
Maintenance
1.Engine oil needs to be replaced regularly, with a general replacement cycle of 500 hours.
2.Hydraulic oil should be replaced according to the prescribed maintenance cycle, which is 2,500 to 3,000 hours.
3.Timely addition of lubricating grease can effectively reduce the wear of each component and ensure smooth operation of all components.
4.Regularly clean or replace the air filter element and air filter to ensure that the engine sucks in clean air and improve fuel efficiency. In harsh working conditions such as heavy dust, the frequency of inspections should be increased.
5.Check the coolant level to keep the cooling system unobstructed and prevent overheating.
6.Clean the radiator. When an excavator is in operation, it generates a large amount of heat. The cleaning of the radiator is very important for maintaining the normal operation of the engine.
7. Tracks are important components of excavators. Appropriate track tension can extend the service life of tracks. Regularly inspect and adjust the tension of the tracks to ensure they are within a consistent standard range.
8.The transmission system is an important component of an excavator. Regular checks should be conducted on the transmission chain, gears and other parts, and severely worn components should be replaced in a timely manner.
Through the above daily maintenance measures, faults can be effectively prevented, the service life of excavators can be prolonged, and the safety and smooth progress of work can be ensured
