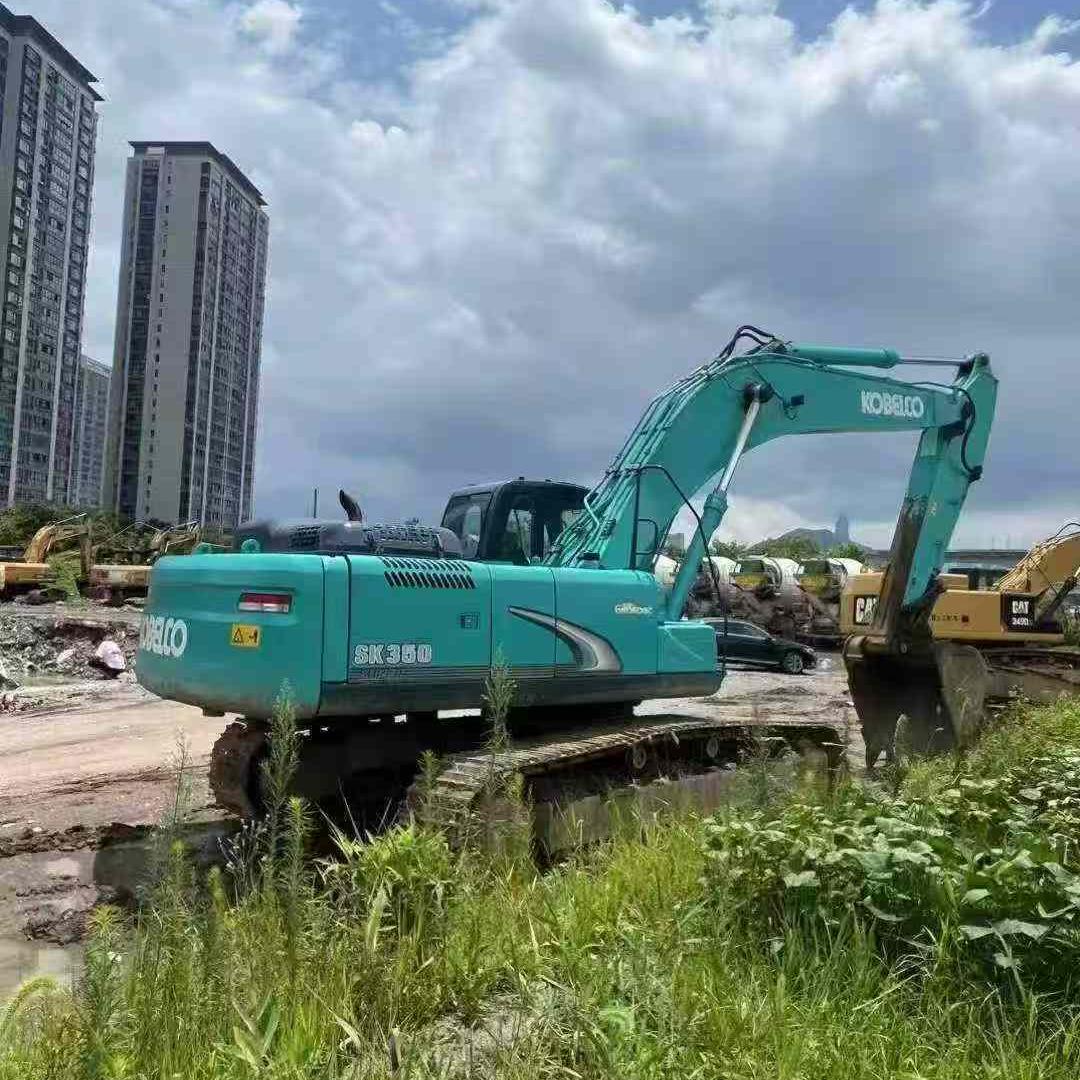

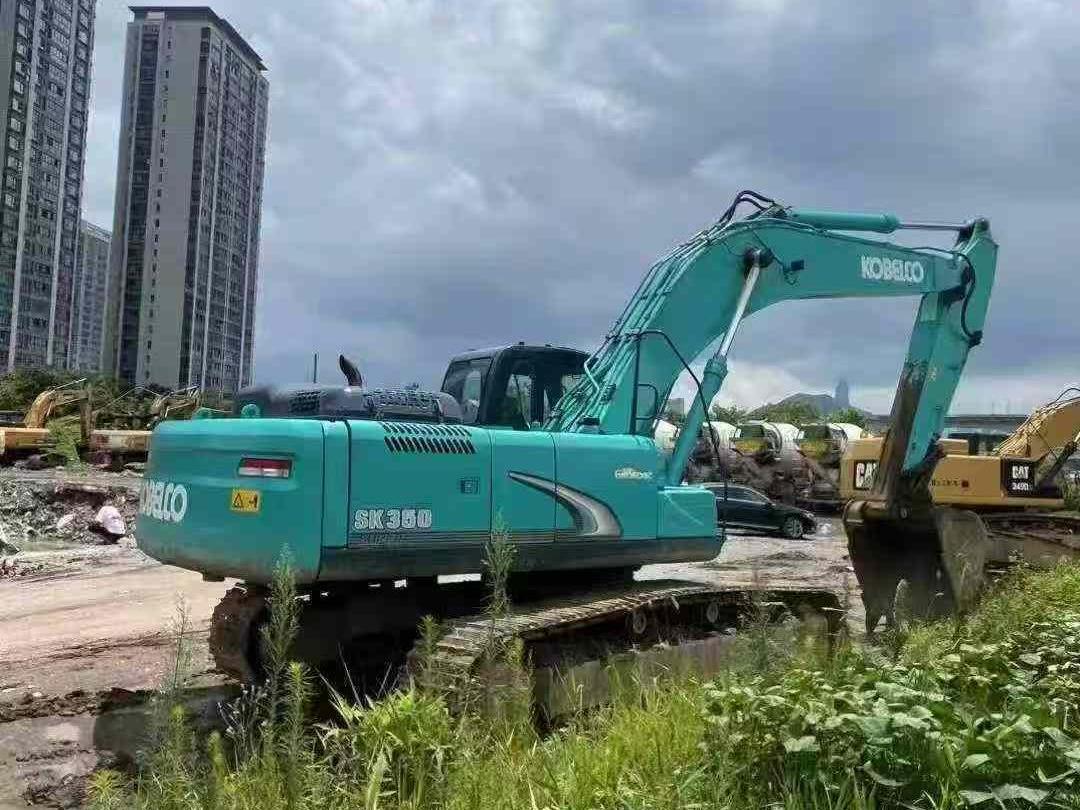

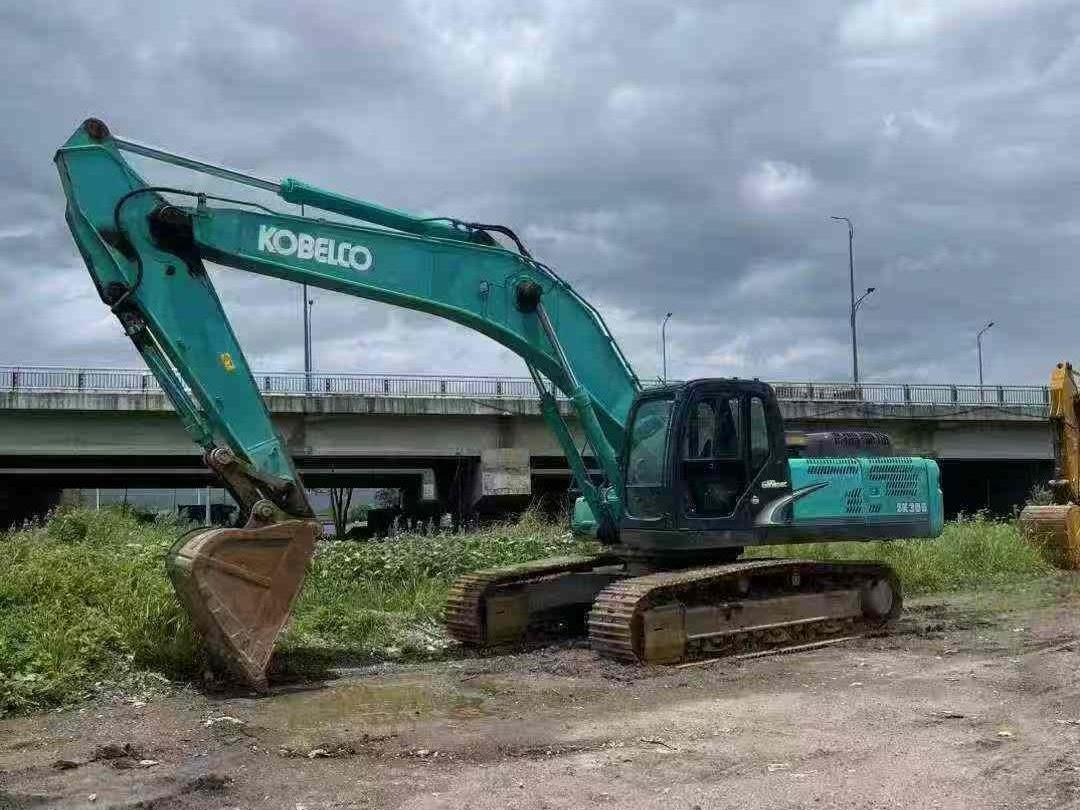

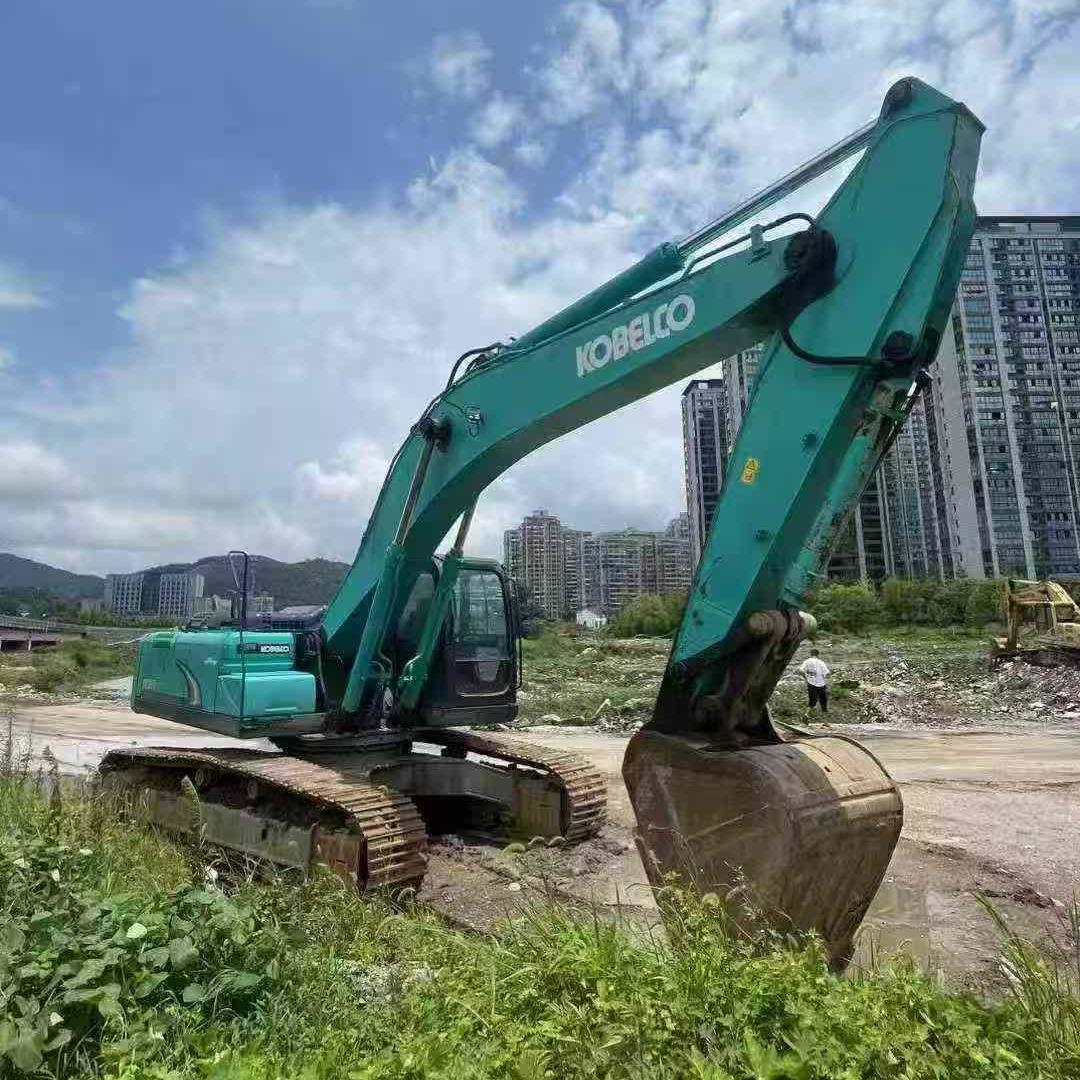

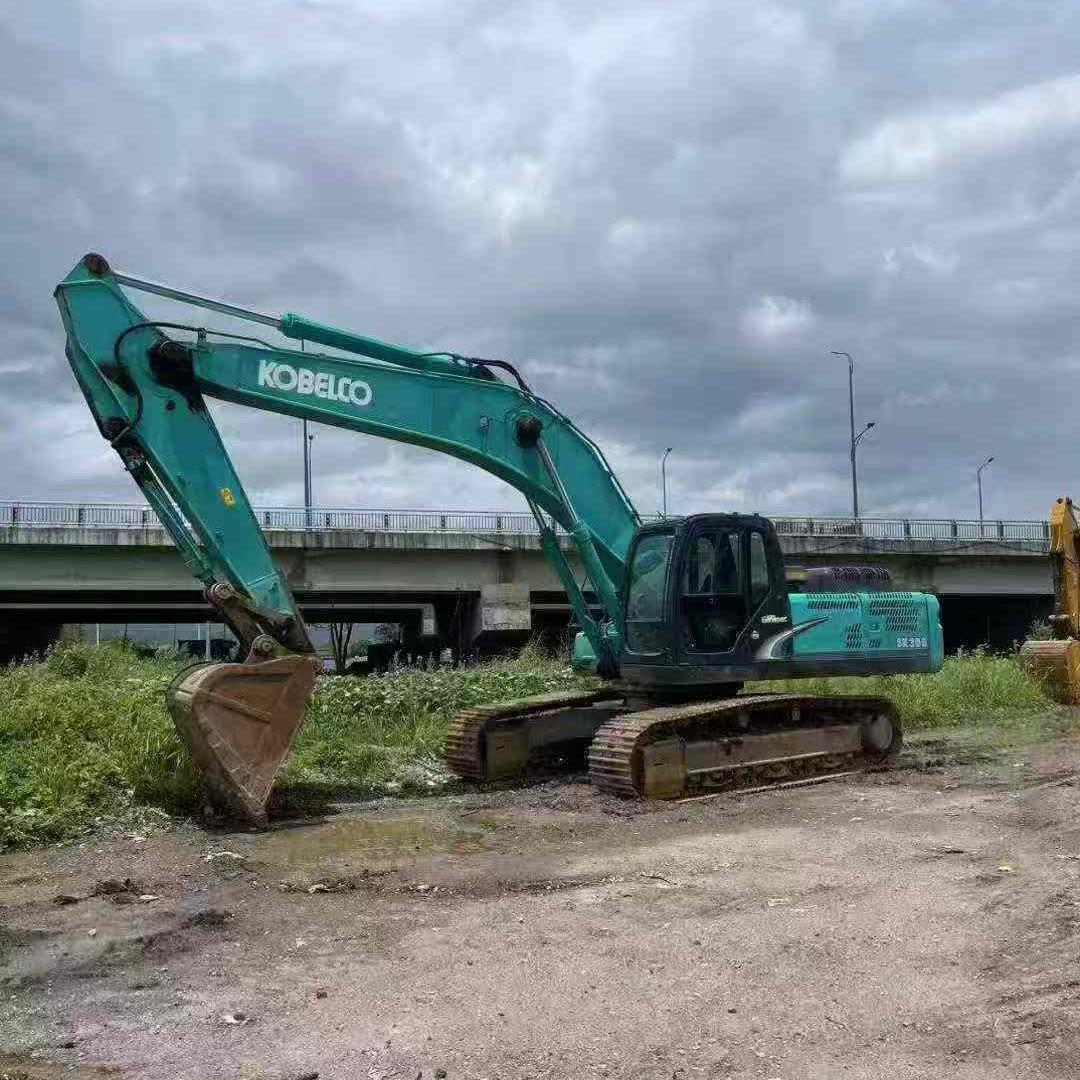

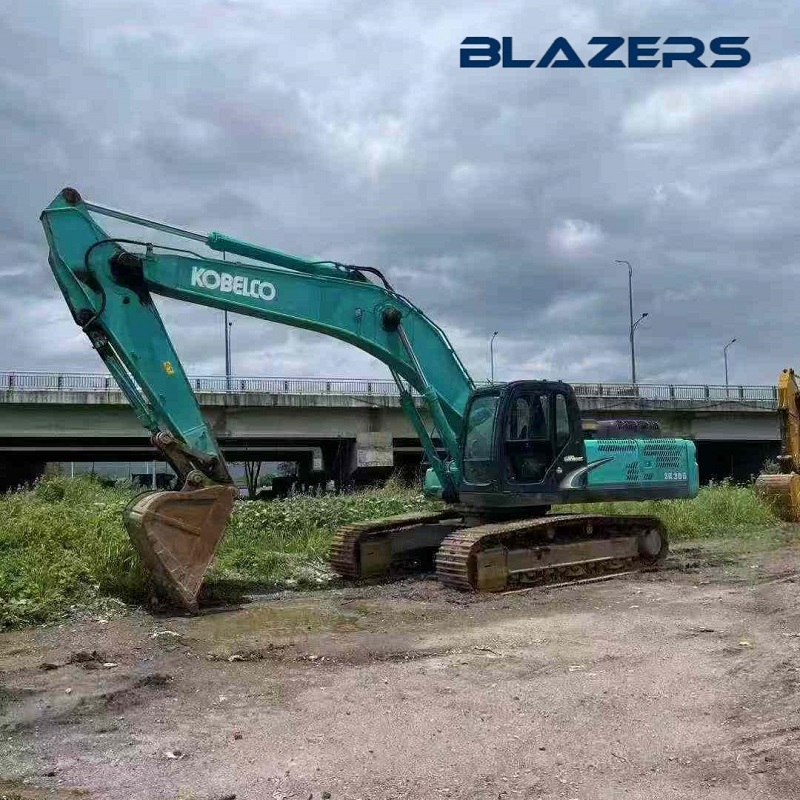

Abount KOBELCO SK350
Description
- Operating Weight: 37,000 - 39,500 kg
- Engine Model: Isuzu 6HK1
- Engine Type: Four - cycle, water - cooled, direct - injection, turbo - charged
- Cylinder Number: 6
- Bore and Stroke: 115 mm×125 mm
- Displacement: 7.79 L
- Rated Power: 210 kW/1900 min⁻¹
- Maximum Torque: 1080 N·m/1500 min⁻¹
- Fuel Tank Capacity: 503 L

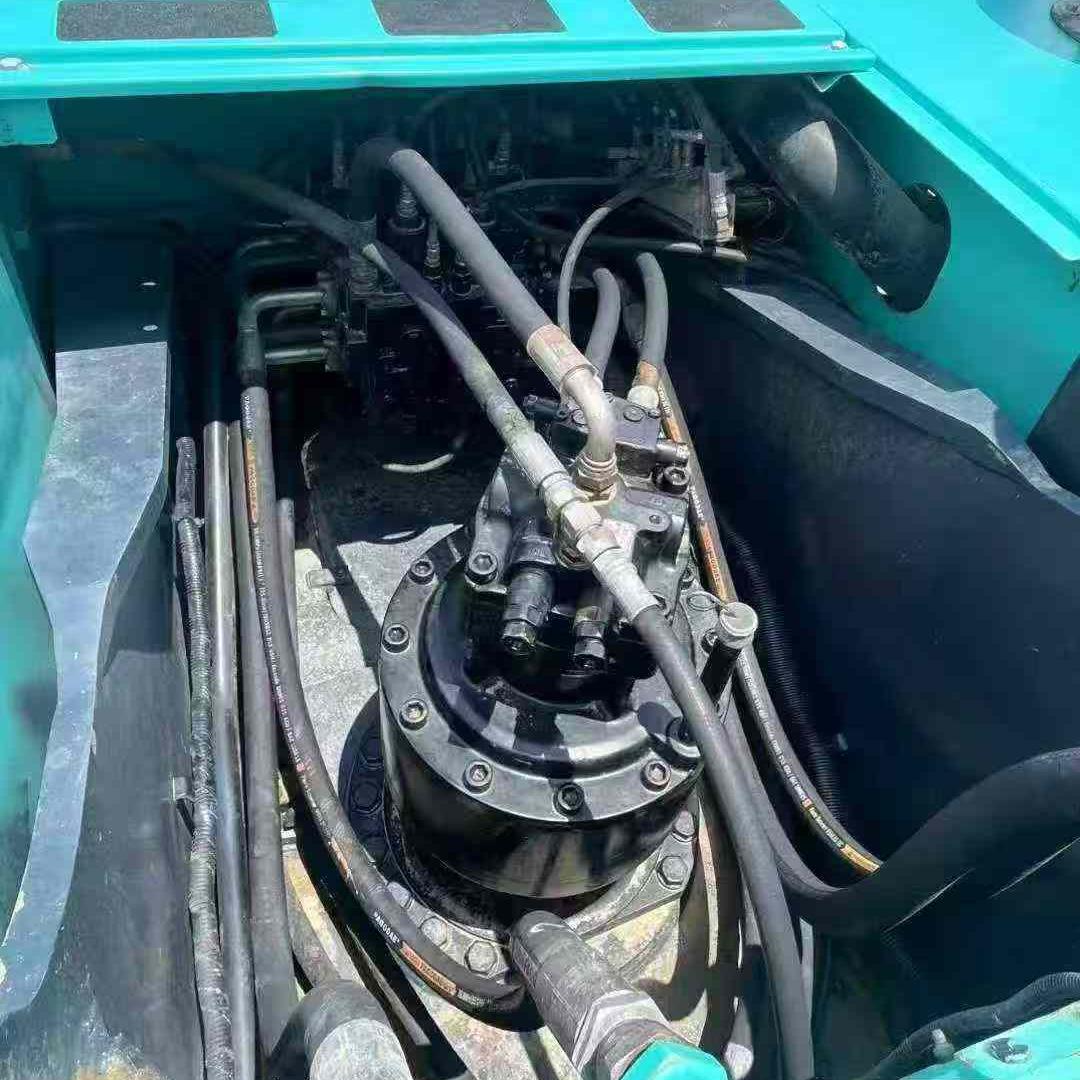

- Hydraulic System Type: Two variable - displacement axial piston pumps + extra gear pump + pilot gear pump
- Maximum Discharge Flow of Hydraulic Pump: 2×294 L/min, 1×44.3 L/min, 1×19 L/min
- Relief Valve Setting: 34.3 MPa (boom, arm and bucket), 37.8 MPa (power boost)
- Hydraulic Oil Tank Capacity: 245 L (tank oil level), 410 L (hydraulic system)
- Swing Speed: Not clearly specified in the common data, generally around 10 - 12 r/min (similar models)
- Travel Speed: 3.3/5.6 km/h
- Drawbar Pulling Force: 320 - 321 kN
- Maximum Gradeability: 70% (35°)
- Bucket Capacity: 1.20 - 1.80 m³
- Maximum Digging Depth: About 7350 mm
- Maximum Digging Reach: About 11260 mm
- Maximum Dumping Clearance: About 7550 mm
Applications
Construction projects (foundation digging, site preparation)
Mining and quarrying (extracting aggregates, overburden removal)
Road building (excavating trenches, grading)
Demolition (with specialized attachments)
Agricultural and forestry operations (land clearing, pond digging)
Performance characteristic
Equipped with a high-performance Isuzu 6HK1 engine, the SK350 delivers a rated power of 210 kW at 1900 rpm, ensuring strong digging force and consistent performance even under heavy loads. Its advanced hydraulic system, featuring dual variable-displacement axial piston pumps, provides precise control and responsive operation, enhancing productivity during tasks like excavation, loading, and material handling.
Maintenance
1.Engine oil needs to be replaced regularly, with a general replacement cycle of 500 hours.
2.Hydraulic oil should be replaced according to the prescribed maintenance cycle, which is 2,500 to 3,000 hours.
3.Timely addition of lubricating grease can effectively reduce the wear of each component and ensure smooth operation of all components.
4.Regularly clean or replace the air filter element and air filter to ensure that the engine sucks in clean air and improve fuel efficiency. In harsh working conditions such as heavy dust, the frequency of inspections should be increased.
5.Check the coolant level to keep the cooling system unobstructed and prevent overheating.
6.Clean the radiator. When an excavator is in operation, it generates a large amount of heat. The cleaning of the radiator is very important for maintaining the normal operation of the engine.

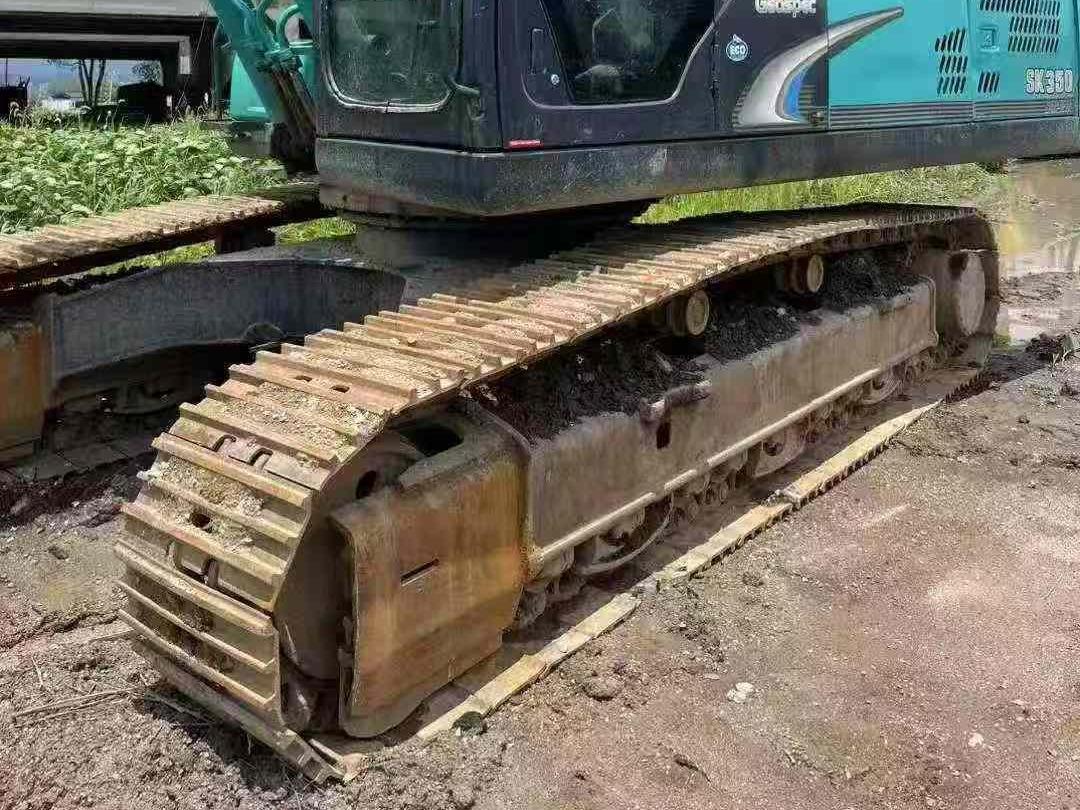

7. Tracks are important components of excavators. Appropriate track tension can extend the service life of tracks. Regularly inspect and adjust the tension of the tracks to ensure they are within a consistent standard range.
8.The transmission system is an important component of an excavator. Regular checks should be conducted on the transmission chain, gears and other parts, and severely worn components should be replaced in a timely manner.
Through the above daily maintenance measures, faults can be effectively prevented, the service life of excavators can be prolonged, and the safety and smooth progress of work can be ensured
