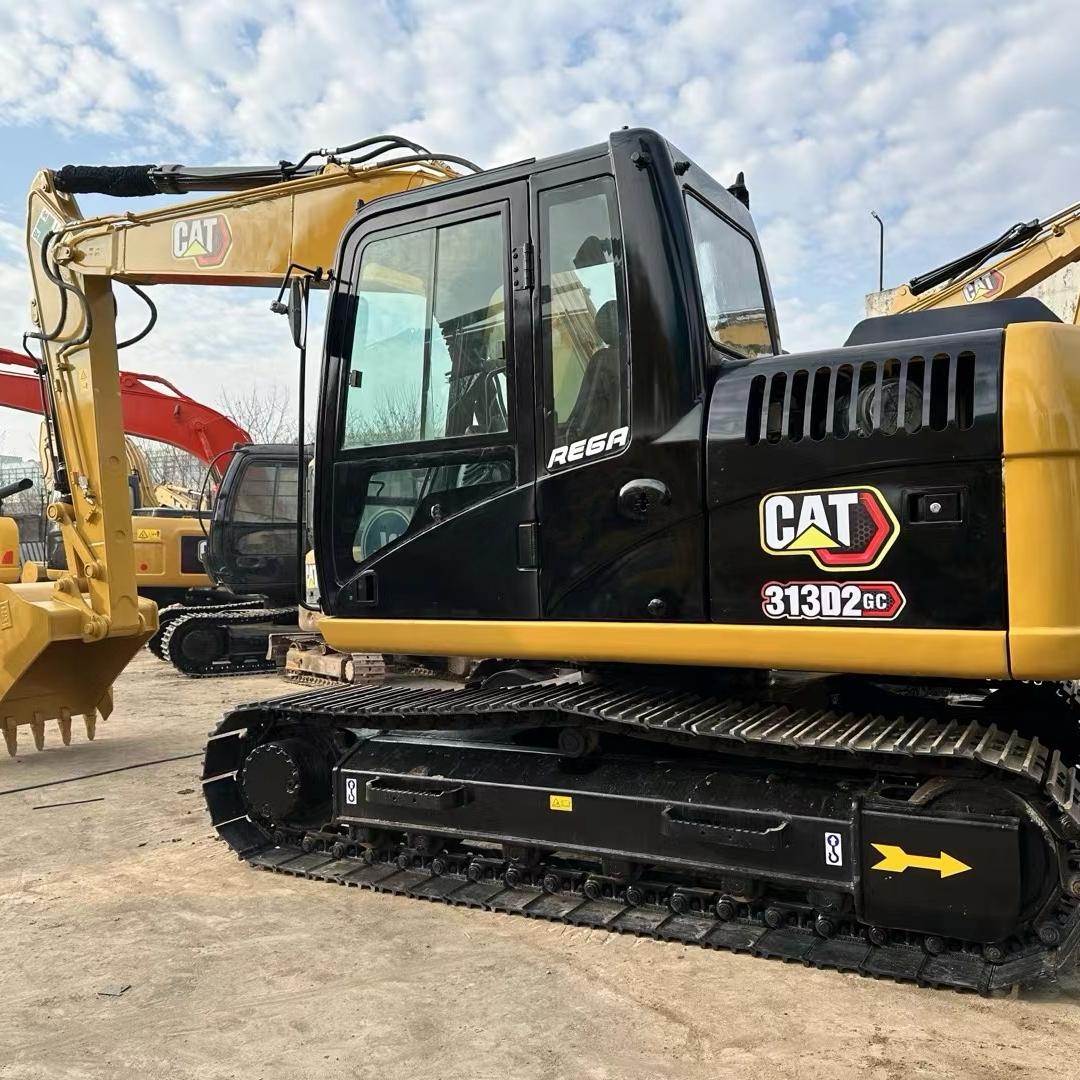

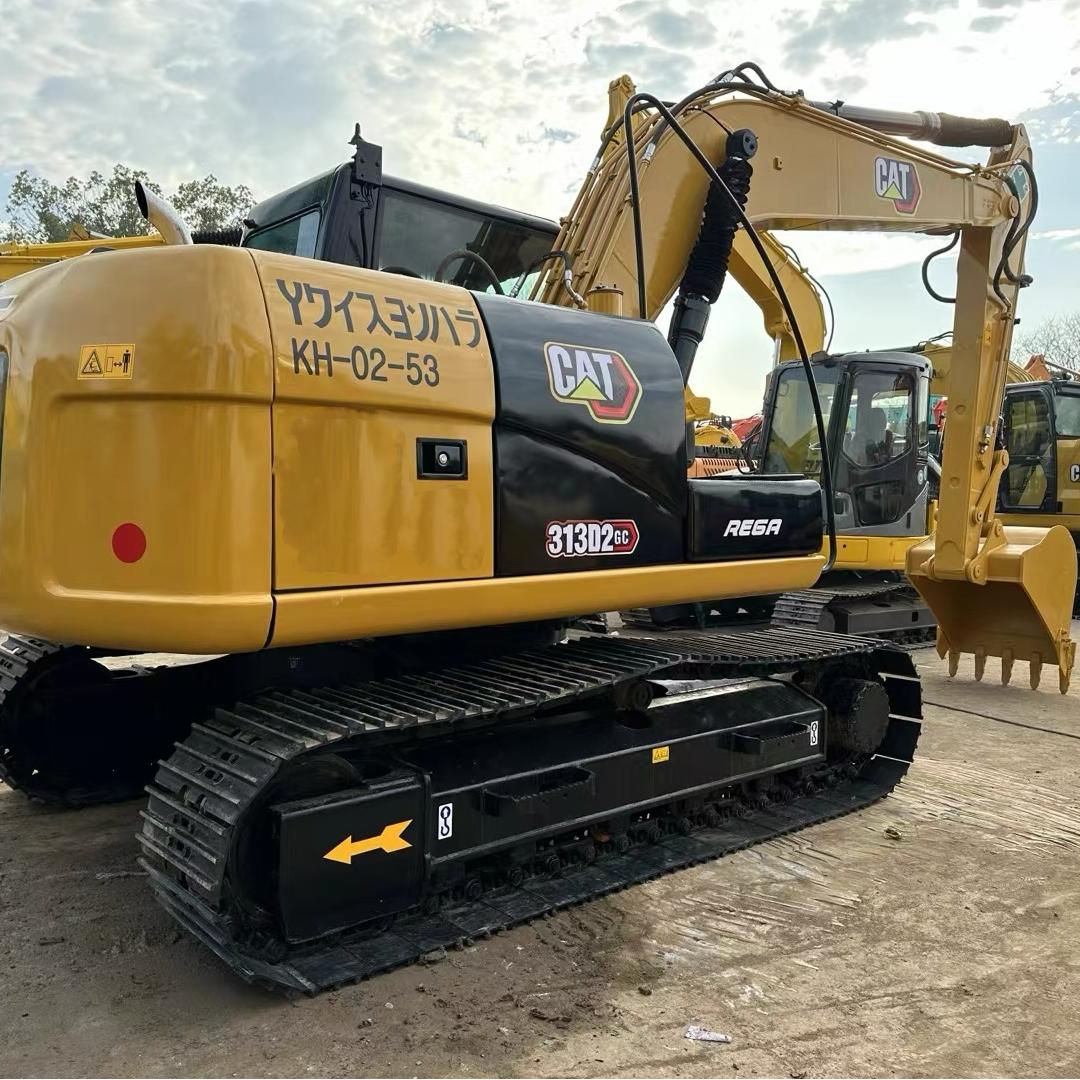

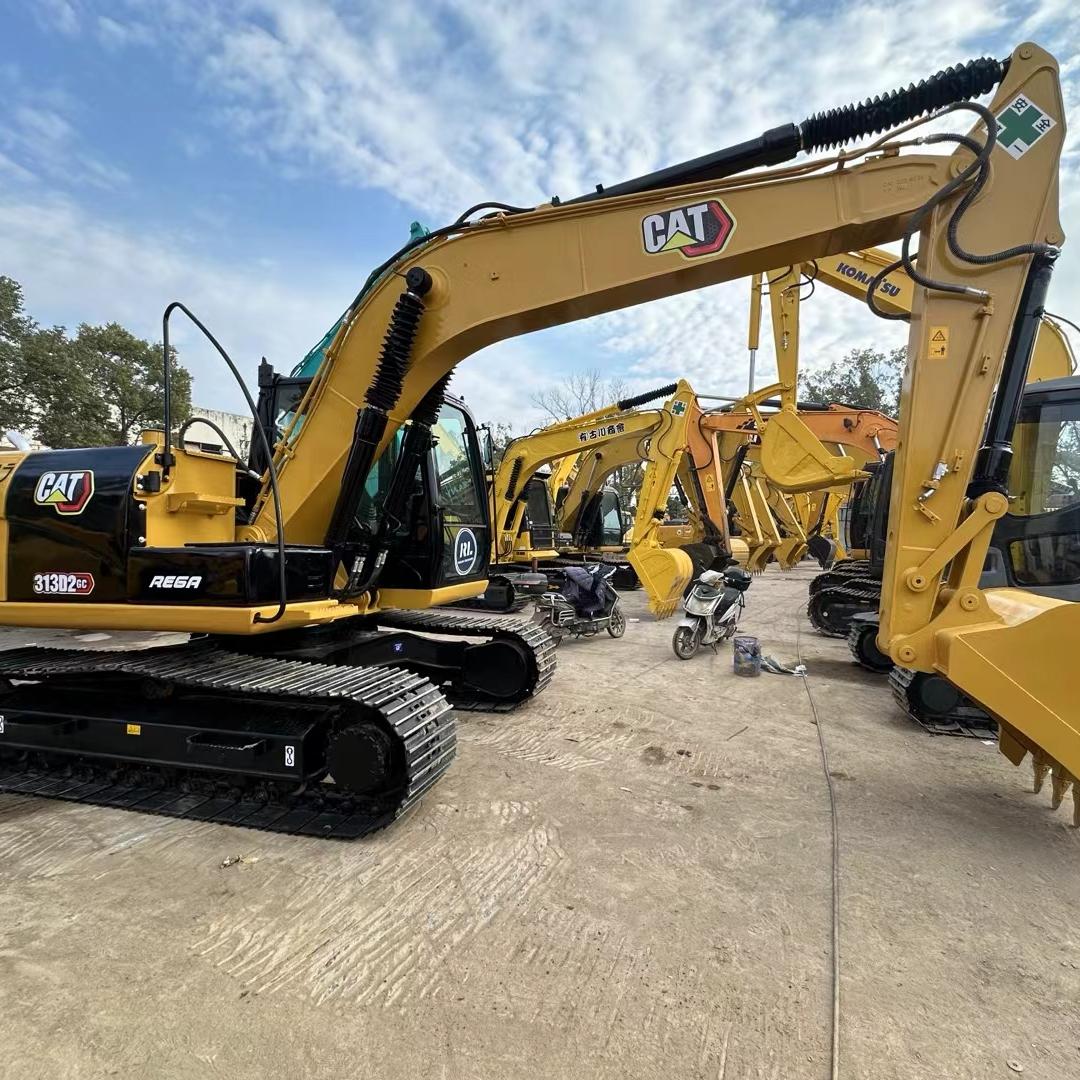

2021 Second Hand Cat 313D2GC Excavator Site Leveling For Saudi Arabia

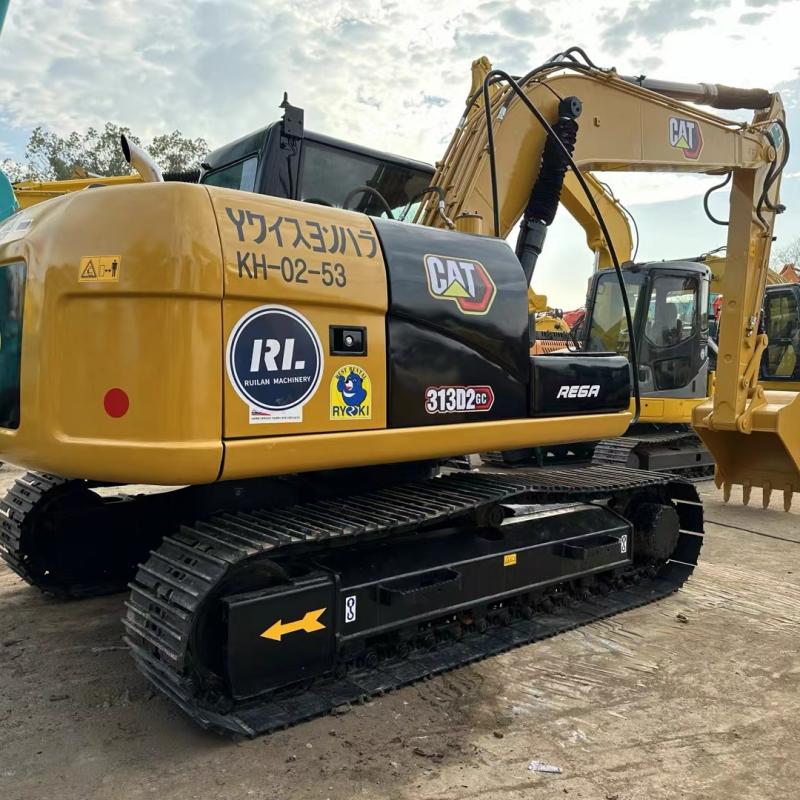

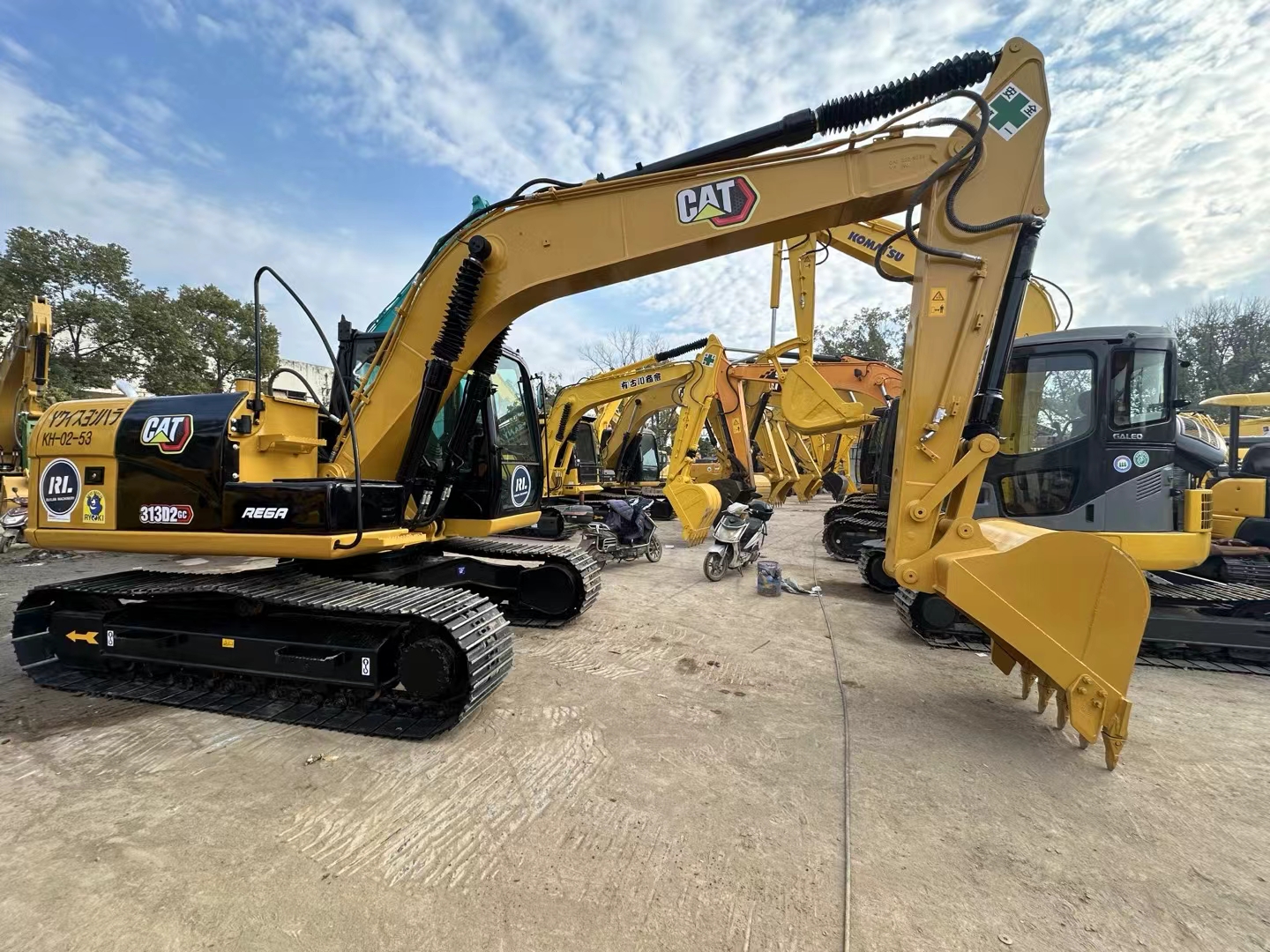

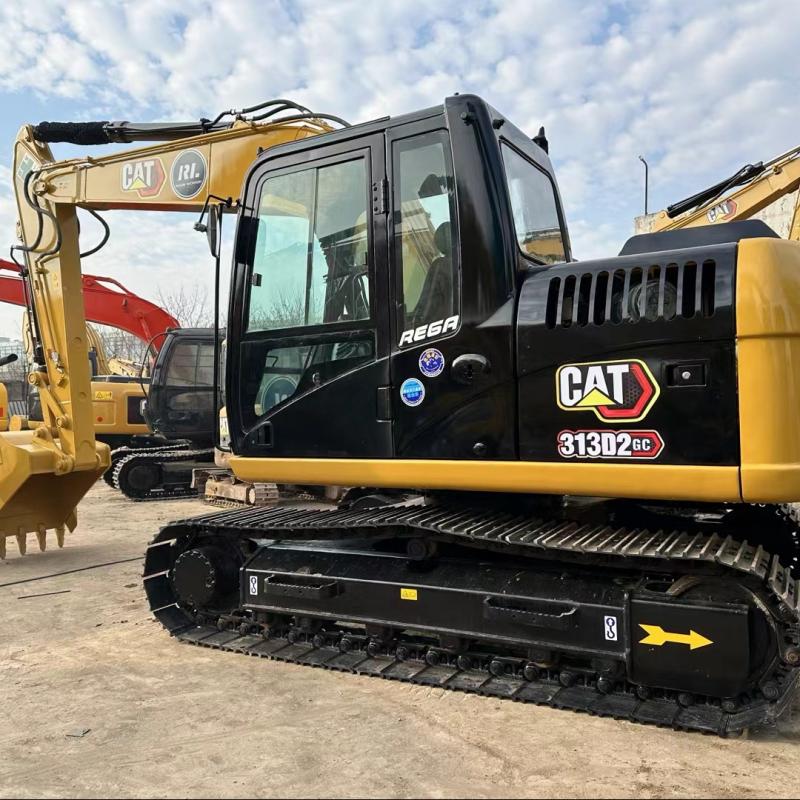

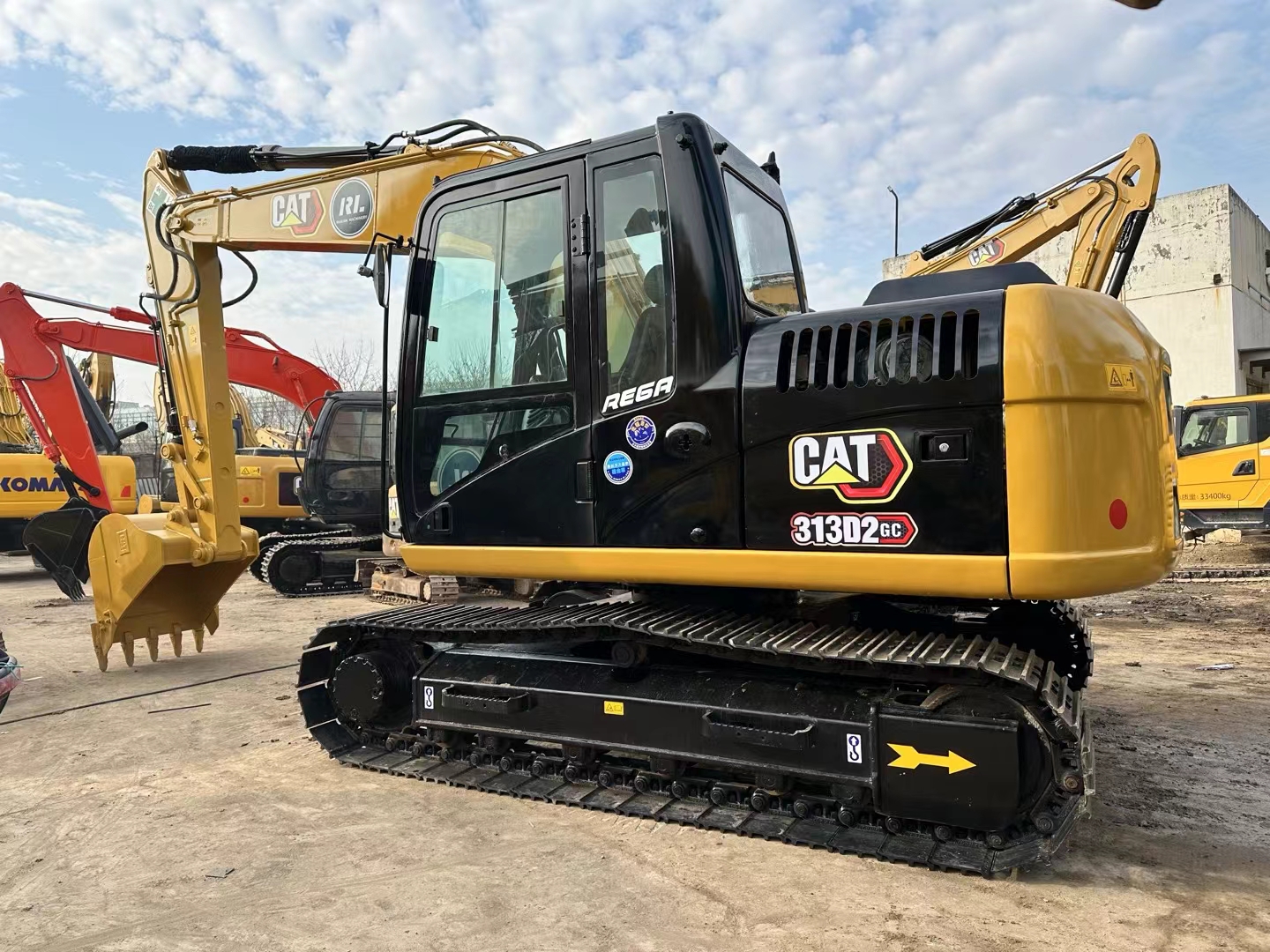

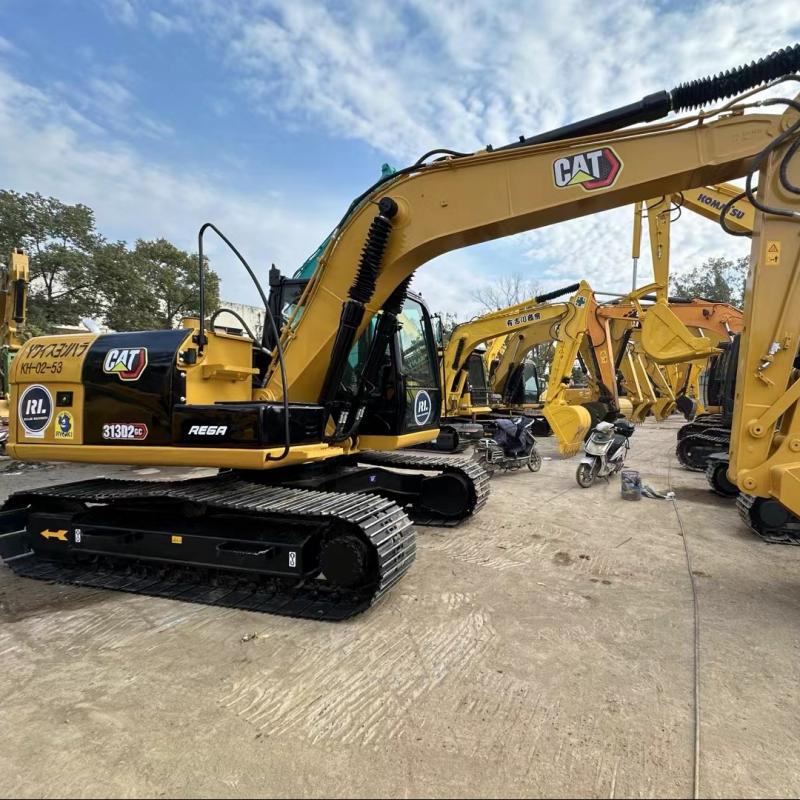

About Cat 313D2GC Excavator

Equipment model Cat313D2GC

Engine brand Caterpillar

Rated power (kW) 75.0

Total displacement (L) 4.4

Cylinder diameter × stroke (mm) 105 × 127

Working weight (kg) 12500

Bucket capacity (m ³) 0.53

Walking speed (high/low) (km/h) 5.1

Rotation speed (rpm) 11.2

Bucket excavation force (kN) 95

Excavating force of boom (kN) 65

Arm length (mm) 4650

Stick length (mm) 2500

Overall dimensions: length x width x height (in transport state) (mm) 7610 x 2490 x 2830

Rear turning radius (mm) 2140

Scope of work: Maximum excavation radius of the shutdown surface (mm) 8210

Maximum excavation depth (mm) 5580

Maximum excavation height (mm) 8510

Maximum unloading height (mm) 1980

Maximum vertical excavation depth (mm) 4910

Fuel tank (L) 250.0

Hydraulic oil tank (L) 91.0

Engine oil change quantity (L) 16.0

Coolant (L) | 18.0

Maximum flow rate of hydraulic system main pump (L/min) 232

Maximum pressure of pilot system (Mpa) 4.120

Boom cylinder - cylinder diameter x stroke (mm) 110 x 1015

Stick cylinder - cylinder diameter x stroke (mm) 120 x 1197

Bucket oil cylinder - cylinder diameter x stroke (mm) 100 x 939

Maximum flow rate of pilot system (L/min) 21.9

To ensure that our quality can satisfy customers with peace of mind

We will conduct a detailed inspection of each excavator to ensure that it is in good working condition

System inspection items and requirements

1. Appearance and structural inspection requirements:

Check the large and small arms for any welding or cracks (signs of refurbishment)

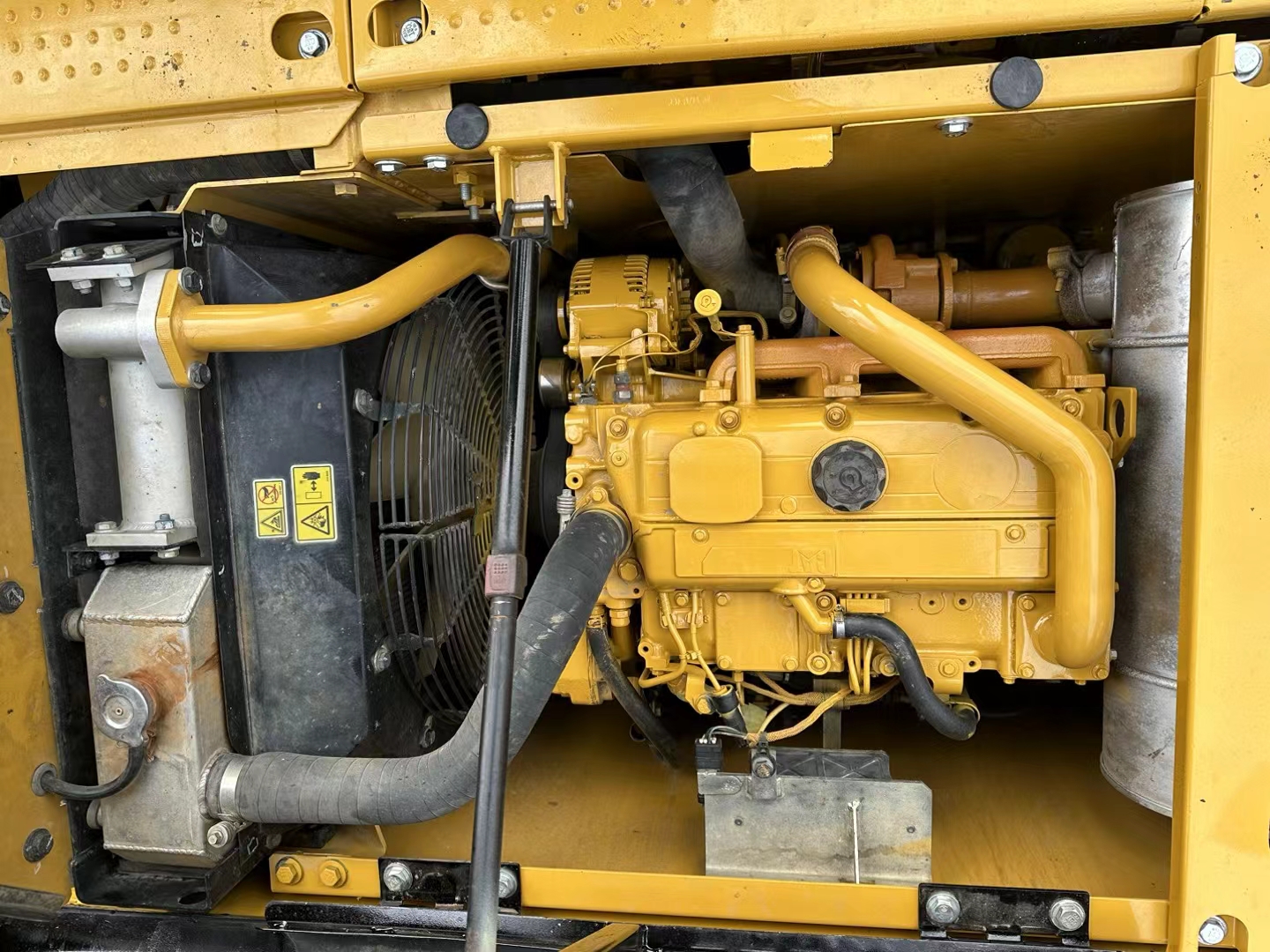

2. Engine system inspection requirements: Engine exhaust, no abnormal noise, no blue smoke, no carbon buildup in the exhaust pipe, no oil leakage in the oil pan, and no noise during idle.

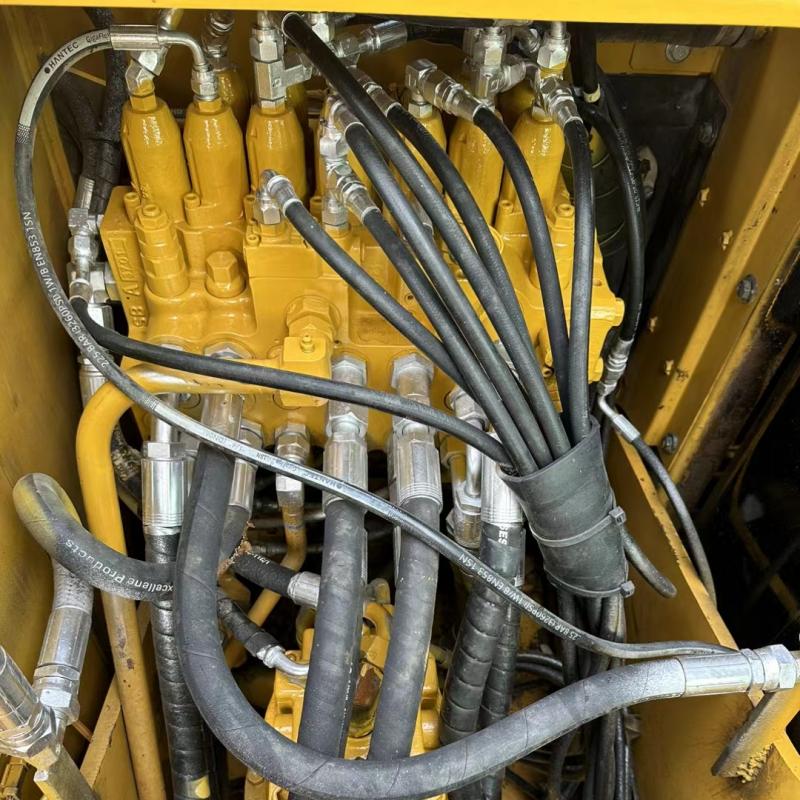

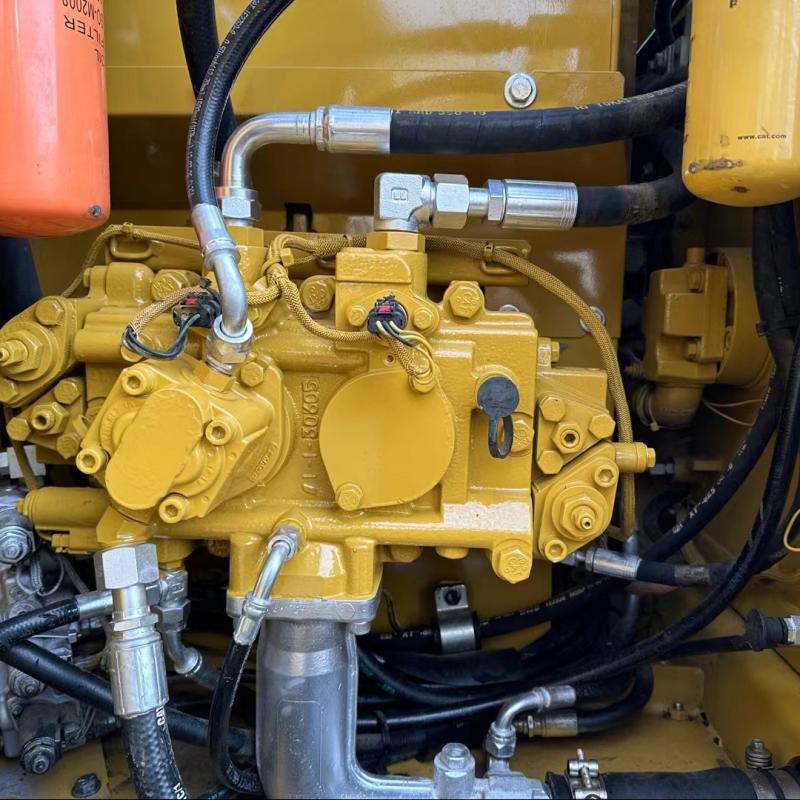

3. Hydraulic system inspection requirements: The hydraulic pump/motor should have no vibration, cracks, or oil leakage, pressure stability, the chrome plating layer of the oil cylinder should have no scratches or oil leakage, the operation should be smooth, and the pipeline should be confirmed to have no bulges or aging.

4. Electrical system inspection requirements: The computer board should display speed, pressure, and fault codes normally.

Line: The lighting, air conditioning, and alarm system are functioning properly.

5. Inspection requirements for walking system:

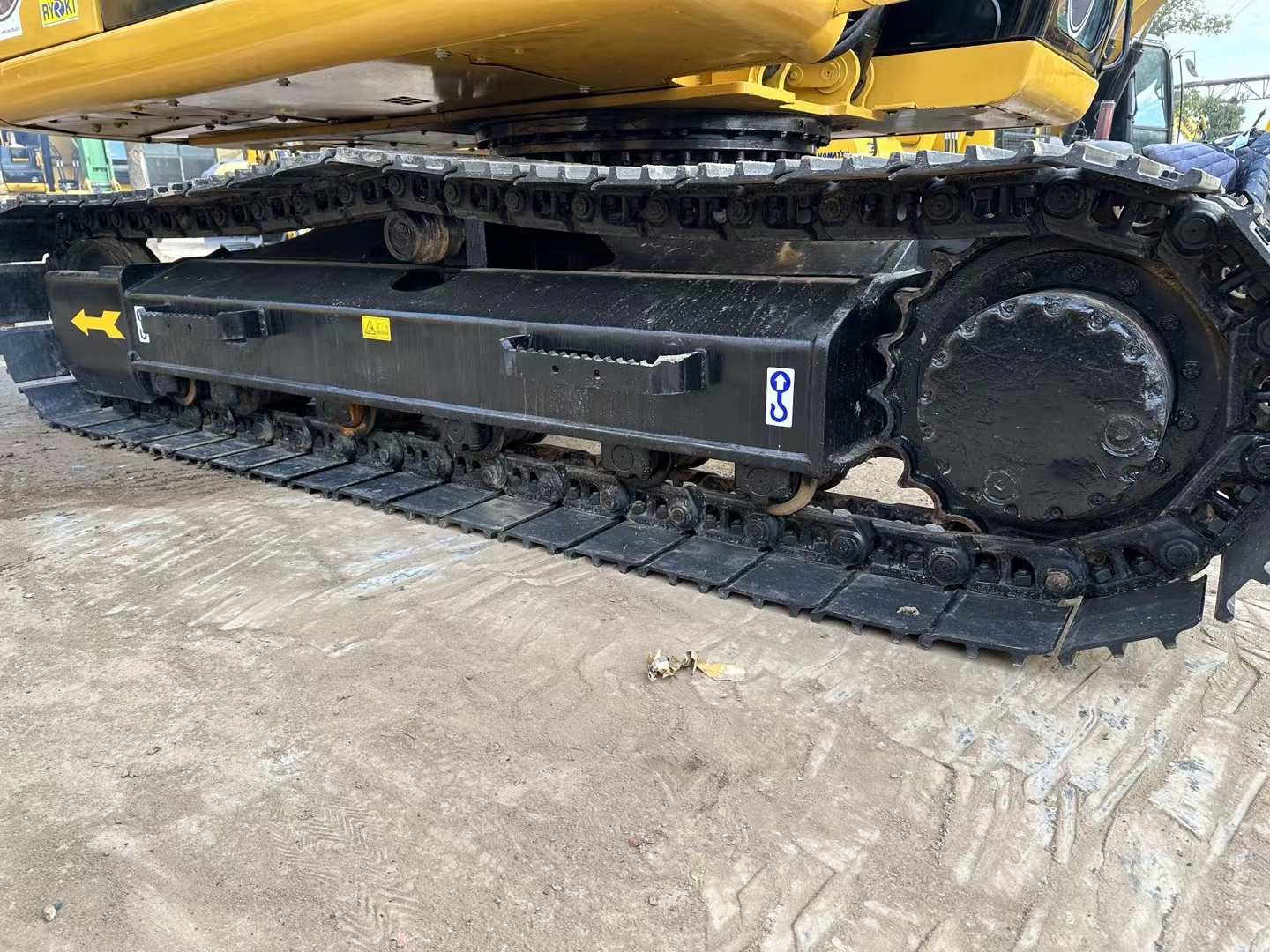

Track: The rubber layer has no cracks, the chain rail has slight wear, and the chain number is consistent with the machine

Motor: When walking, the speed on both sides is consistent, and the walking is normal

6. Cooling and intake system inspection requirements: The radiator should be clean and free of dust, and the fan tape should not be loose

List of vulnerable items that must be replaced before mechanical shipment:

Replace with new engine oil, hydraulic oil, gear oil, new air filter, oil filter, diesel filter, replace inlet/return/pilot/pipeline filter elements, and other damaged components will also be replaced with new ones
