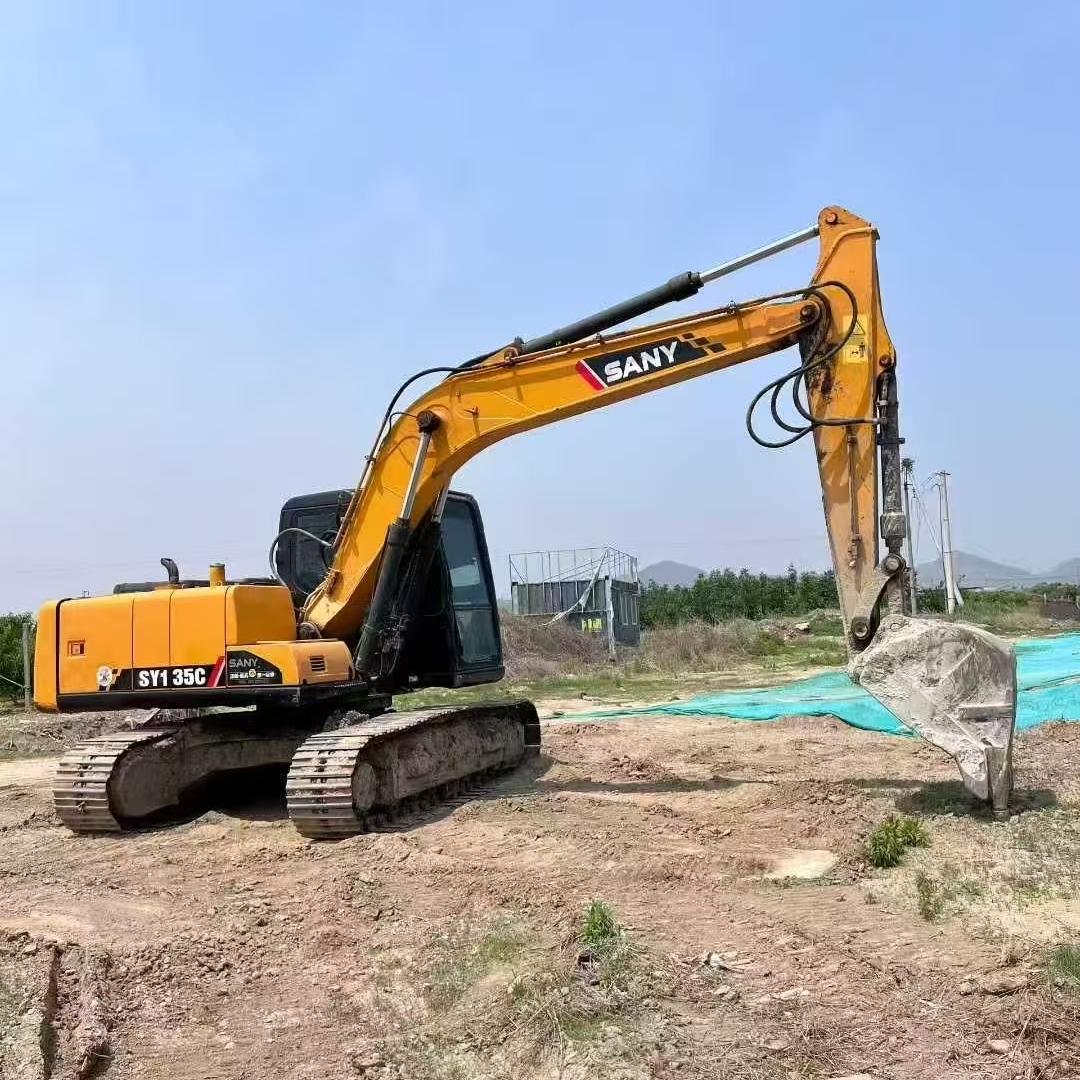

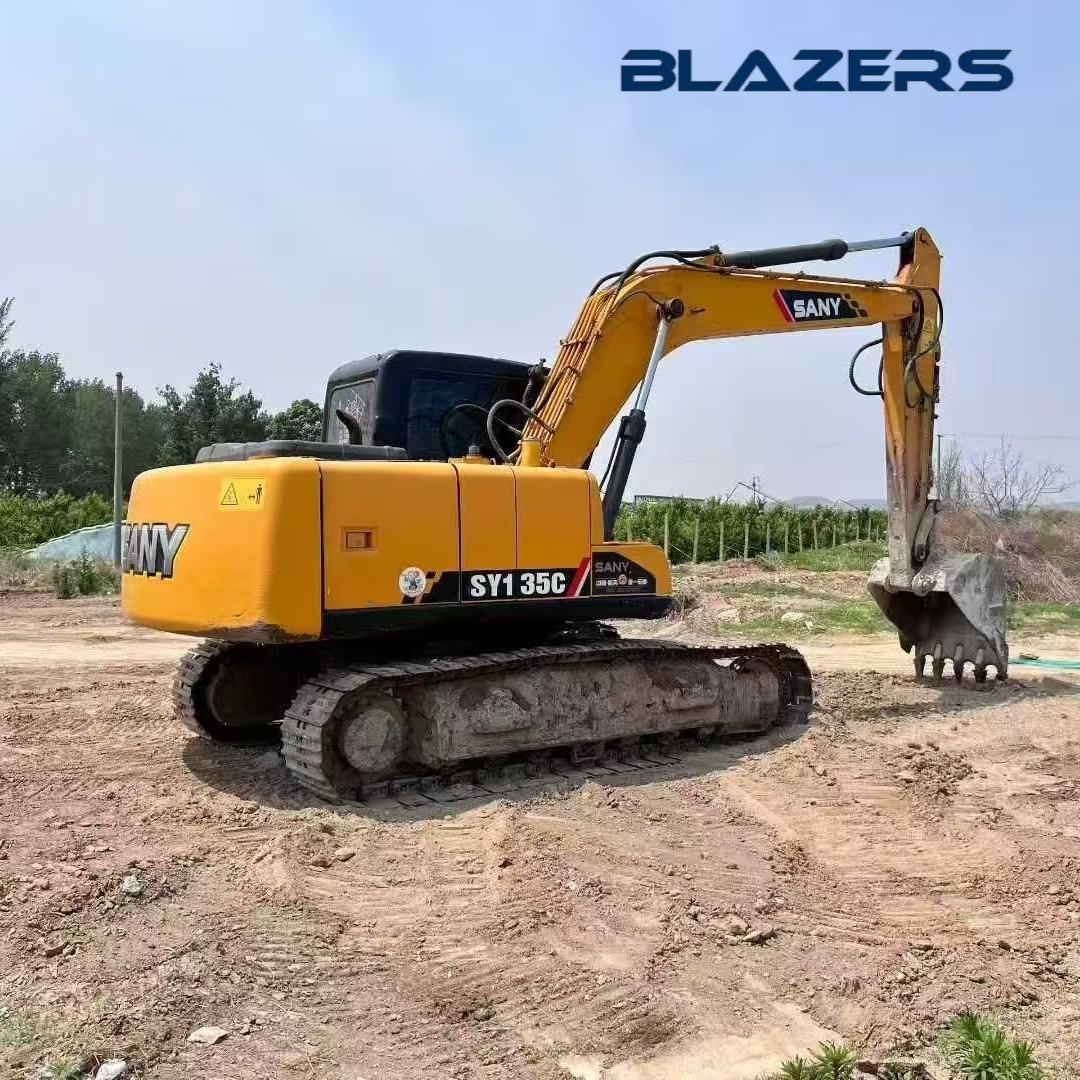

Second Hand SANY SY135C Hydraulic Crawler Excavator Construction Work For Afghanistan

Second Hand SANY SY135C Hydraulic Crawler Excavator Construction Work For Afghanistan

Product ID : SANY SY135C

Product Attributes :

The SANY SY135C is a compact hydraulic excavator designed for versatile performance in construction, landscaping, urban engineering, and light mining

Product Description

About SANY SY135C

Description

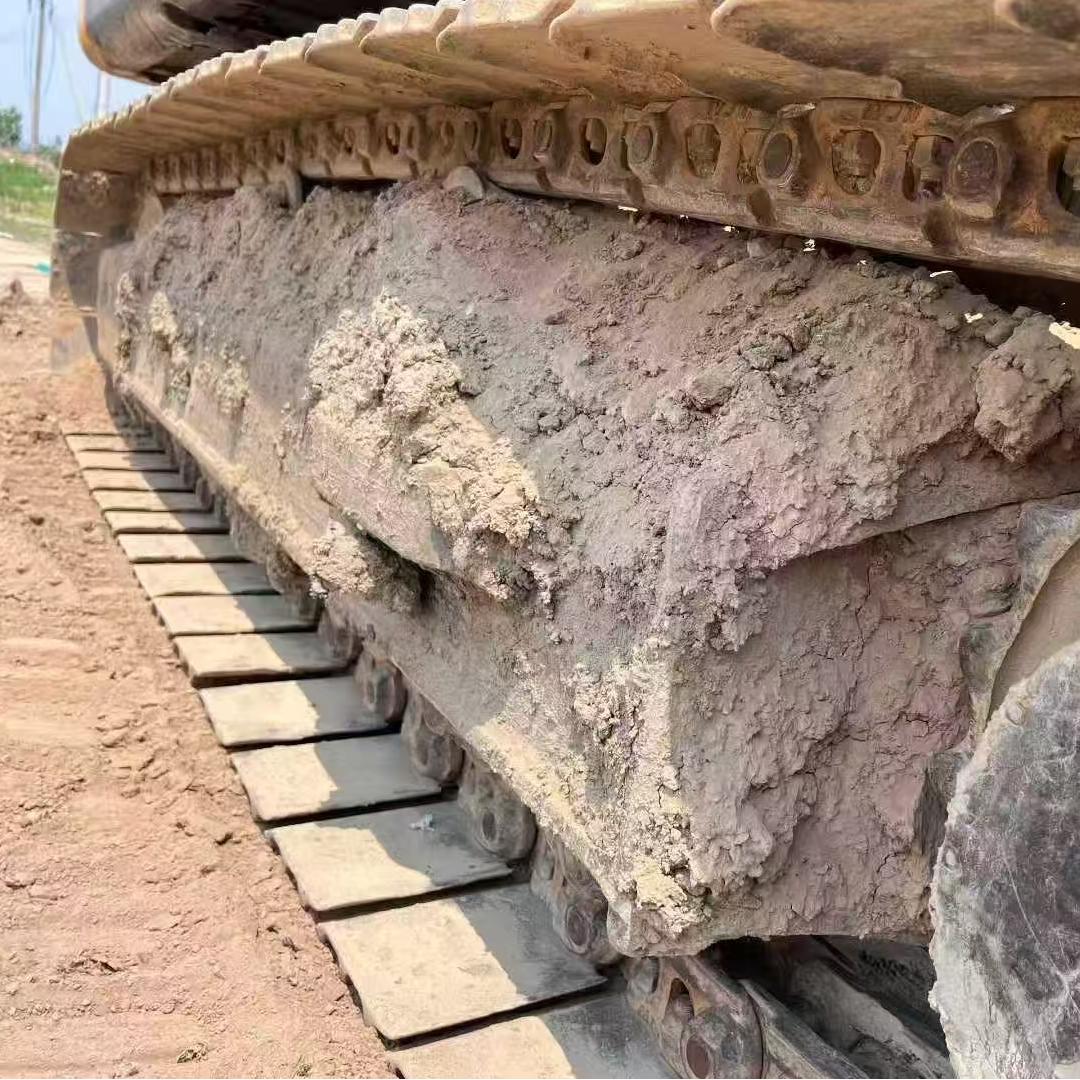

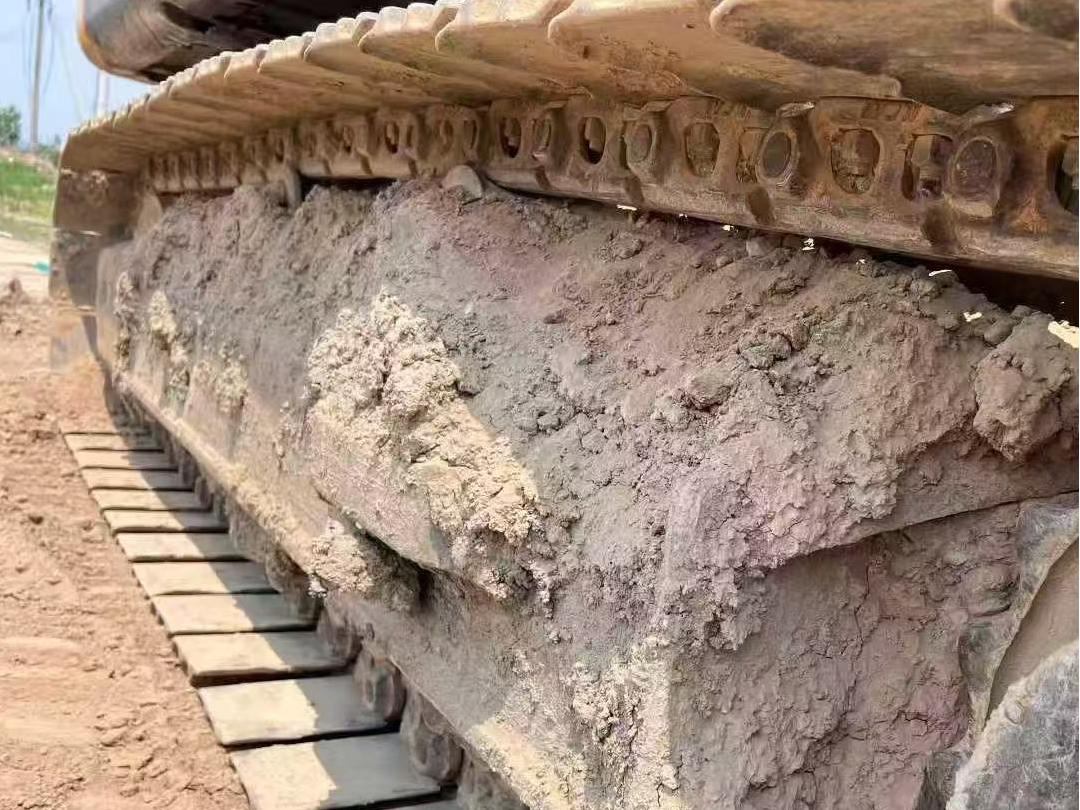

This is a SY135C general-purpose excavator that has been refurbished according to customer requirements. This is the condition after the refurbishment. The SY135C excavator is equipped with an efficient engine and hydraulic system, which enables the machine to have greater digging force and faster operation cycle time. The sturdy chassis features durable guide wheels, large-diameter rollers and thick-toothed sprockets. The track links are more durable and have a longer service life.

Specificaion

Operating Weight: 13,500 kg

Bucket Capacity: 0.6 m³

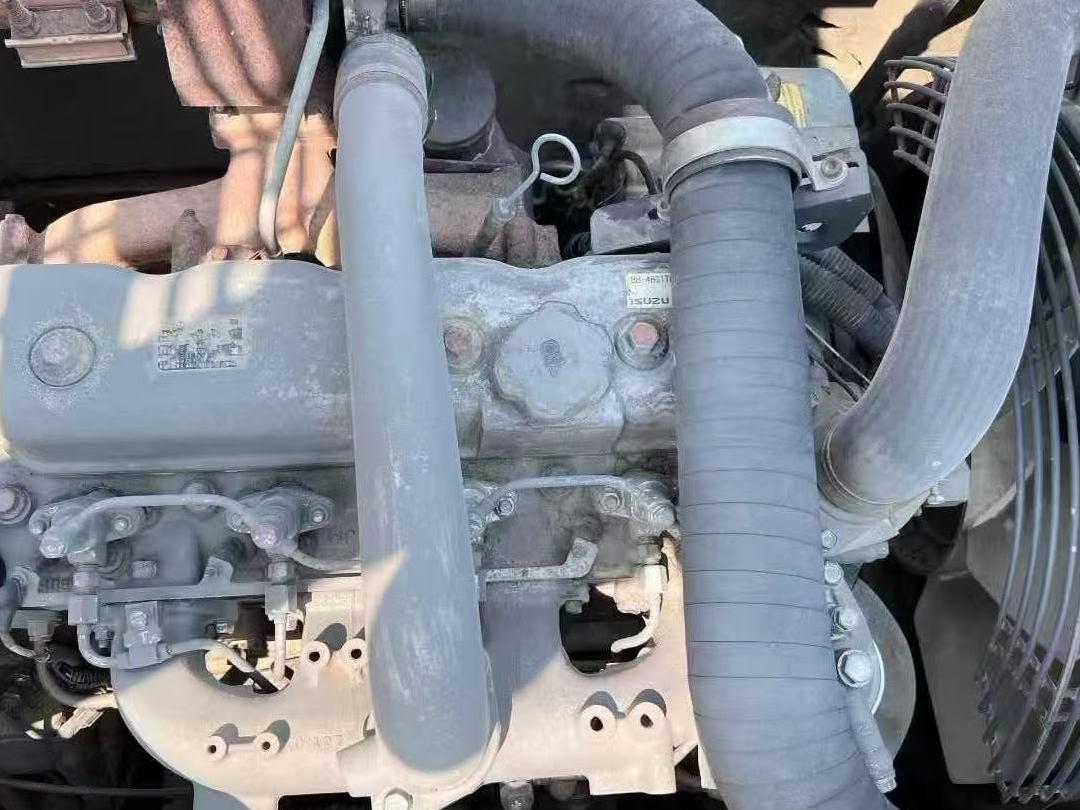

Engine Model: Isuzu 4JJ1

Rated Power: 86 kW at 2,200 rpm

Maximum Torque: 375 N·m at 1,800 rpm

Engine Displacement: 2.999 L

Gradability: 70% (equivalent to 35° incline)

Swing Speed: 12 rpm

Ground Pressure: 41.7 kPa

Bucket Digging Force: 103 kN

Arm Digging Force: 67 kN

Travel Speed: Two gears, 5.5 km/h (high gear) and 3.5 km/h (low gear)

Standard Track Width: 500 mm

Track Shoes per Side: 44 pieces

Carrier Rollers per Side: 7 pieces

Top Rollers per Side: 1 piece

Fuel Tank Capacity: 280 L

Hydraulic Oil Tank Capacity: 200 L

Engine Oil Capacity: 15 L

Radiator Capacity: 30 L

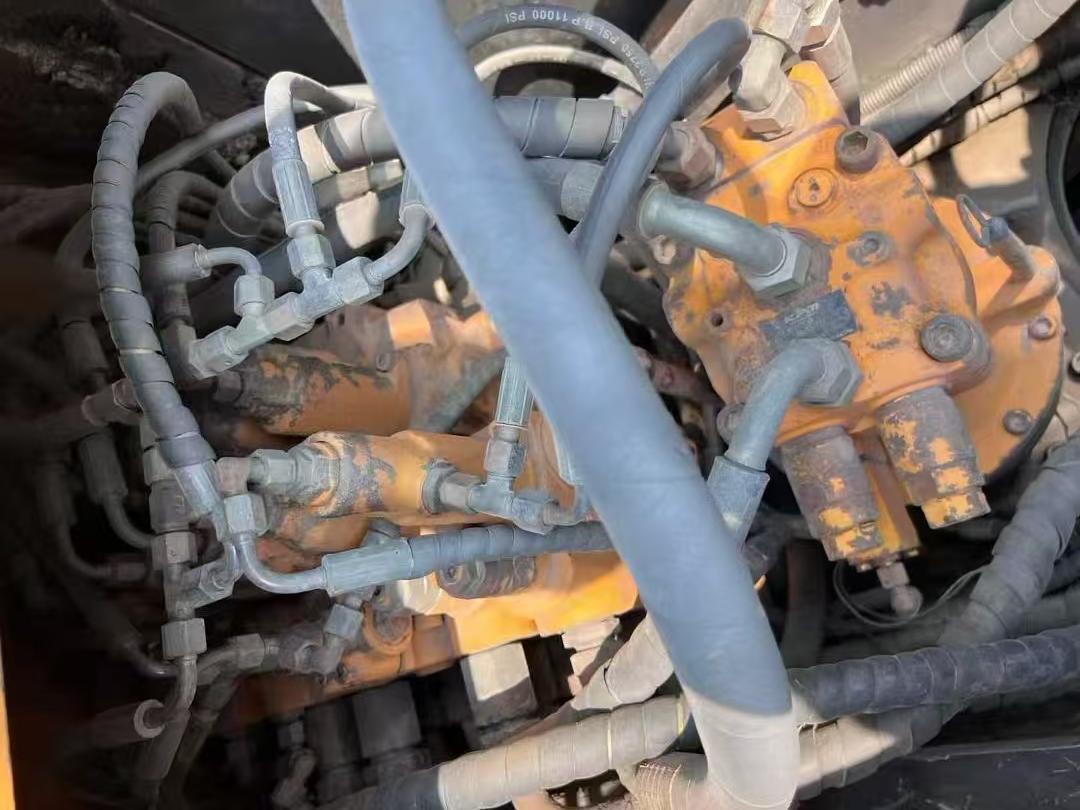

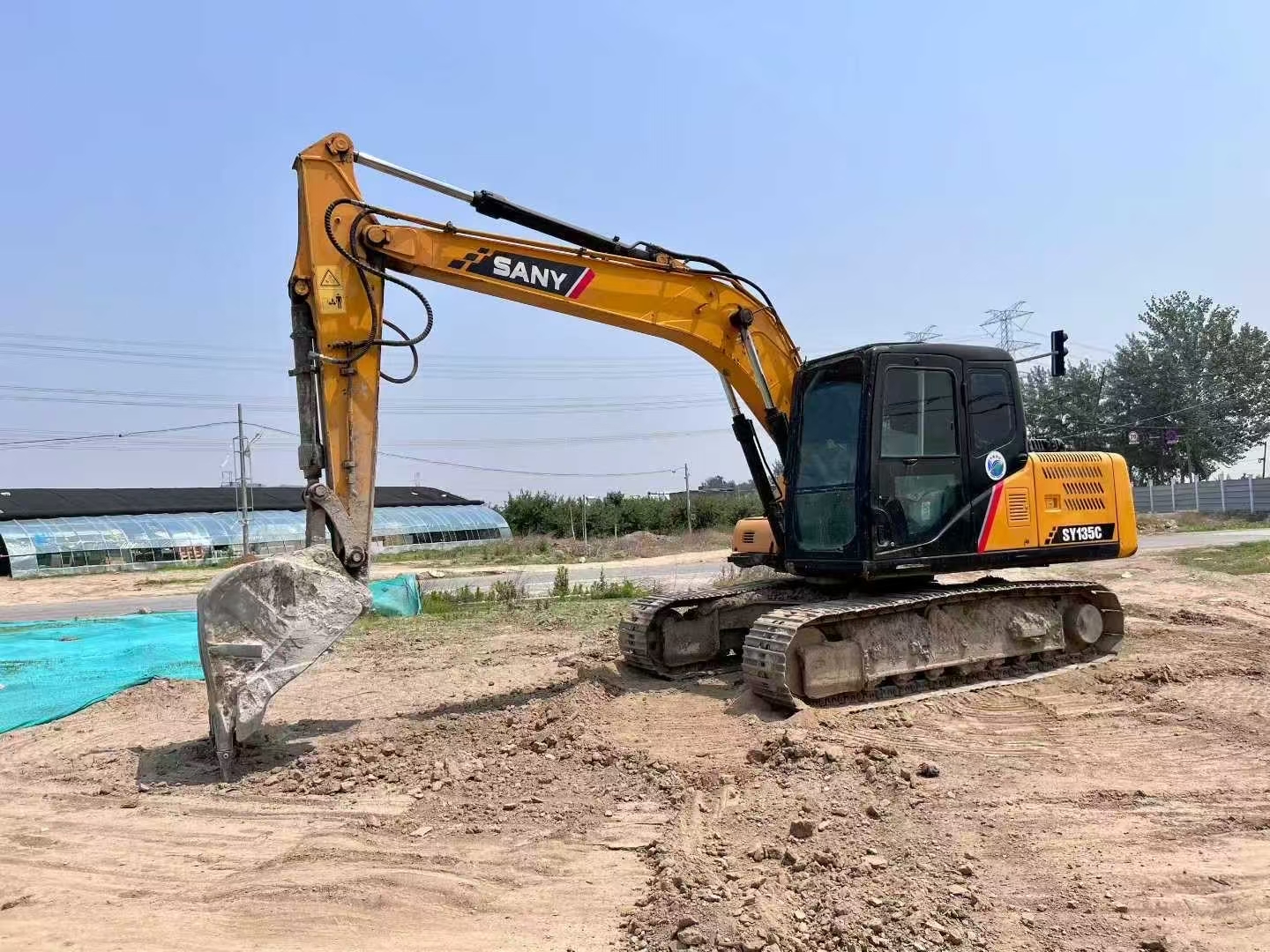

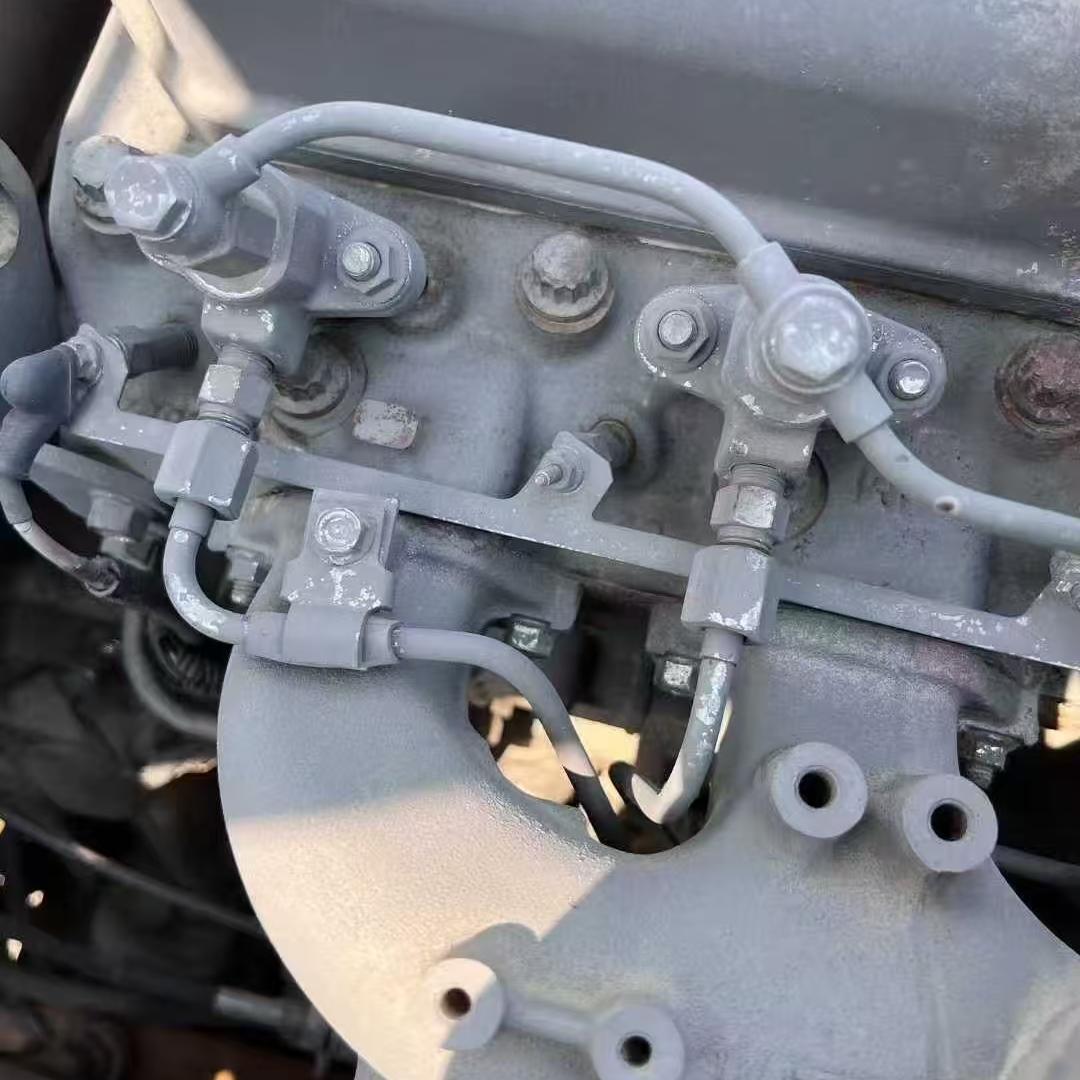

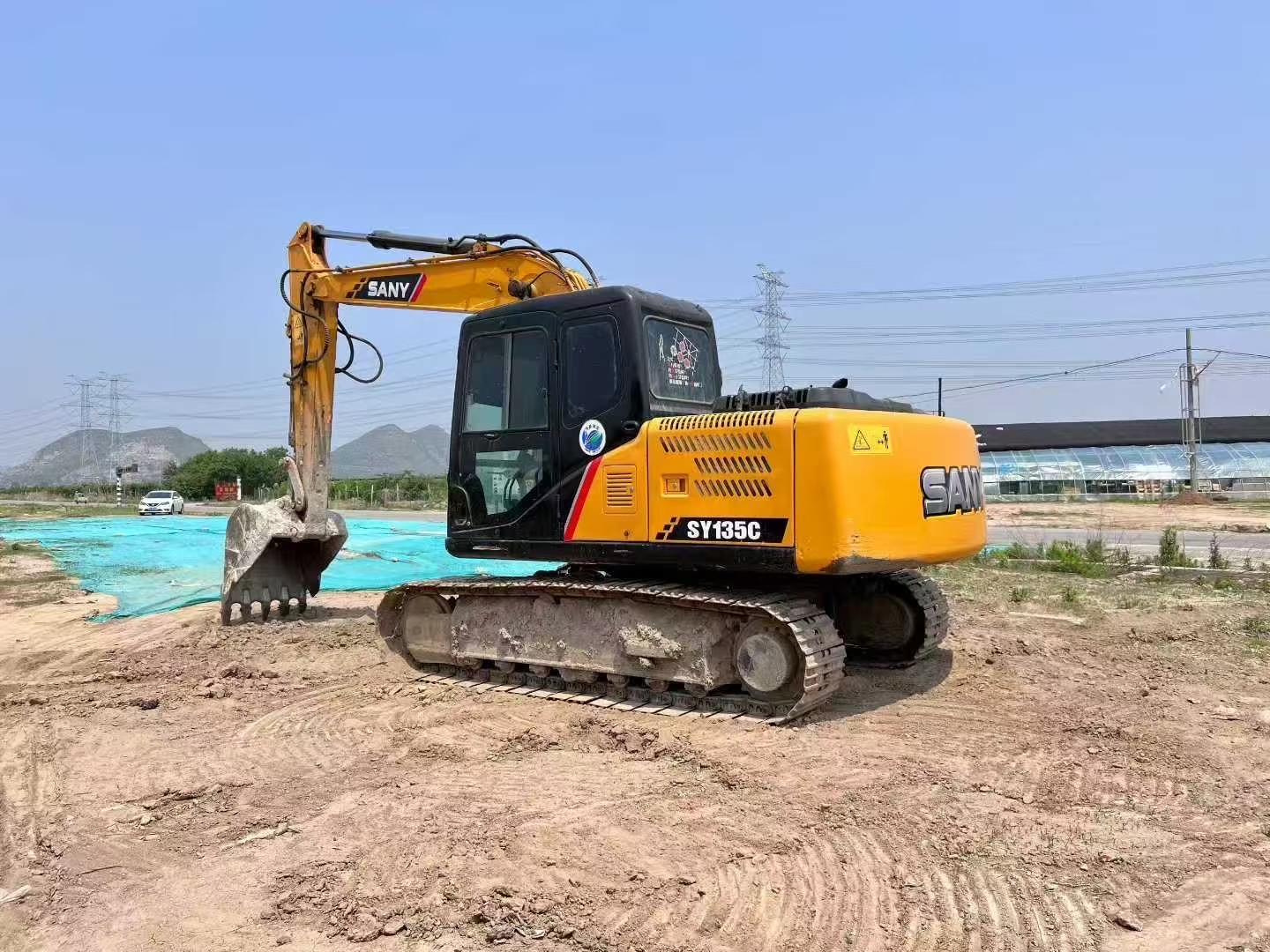

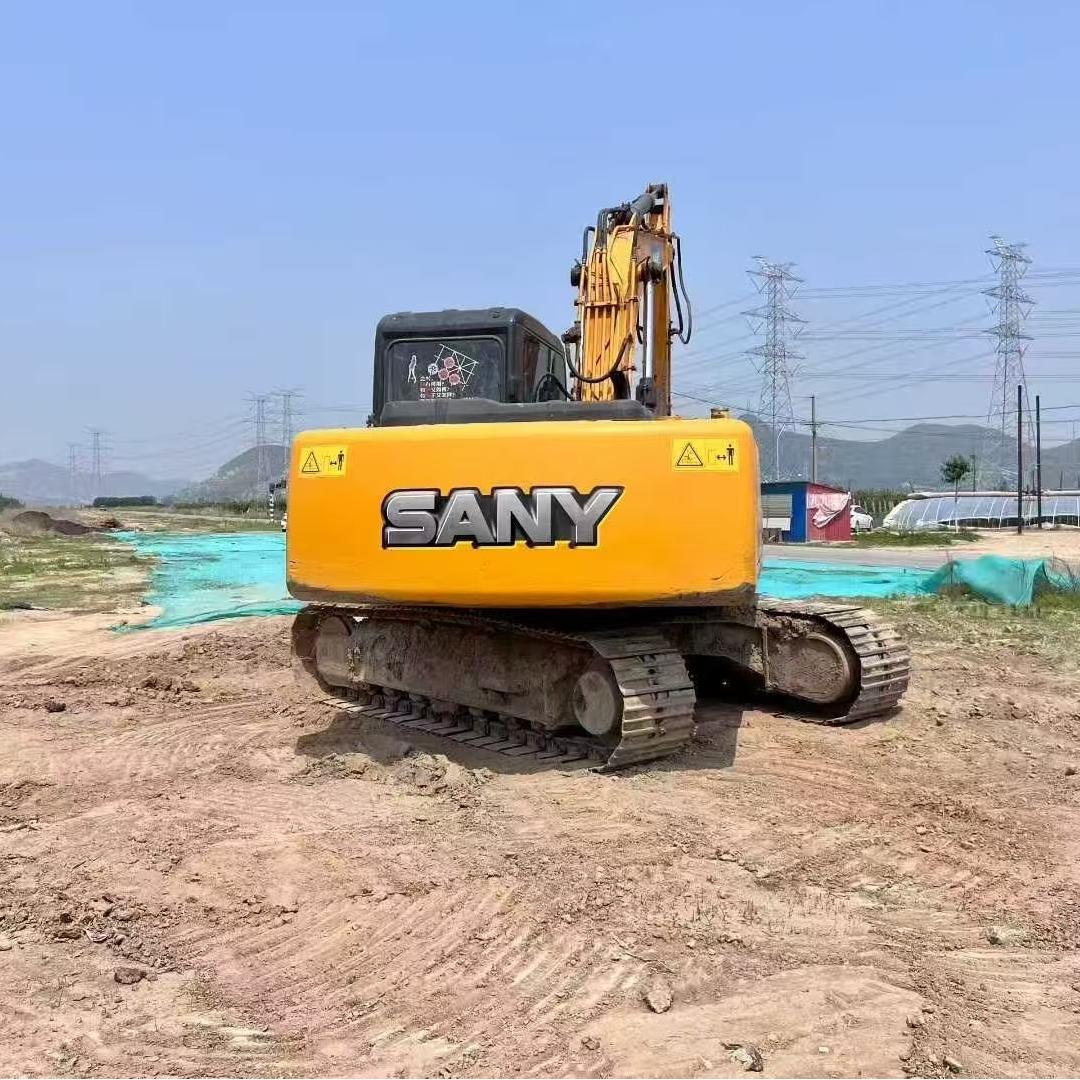

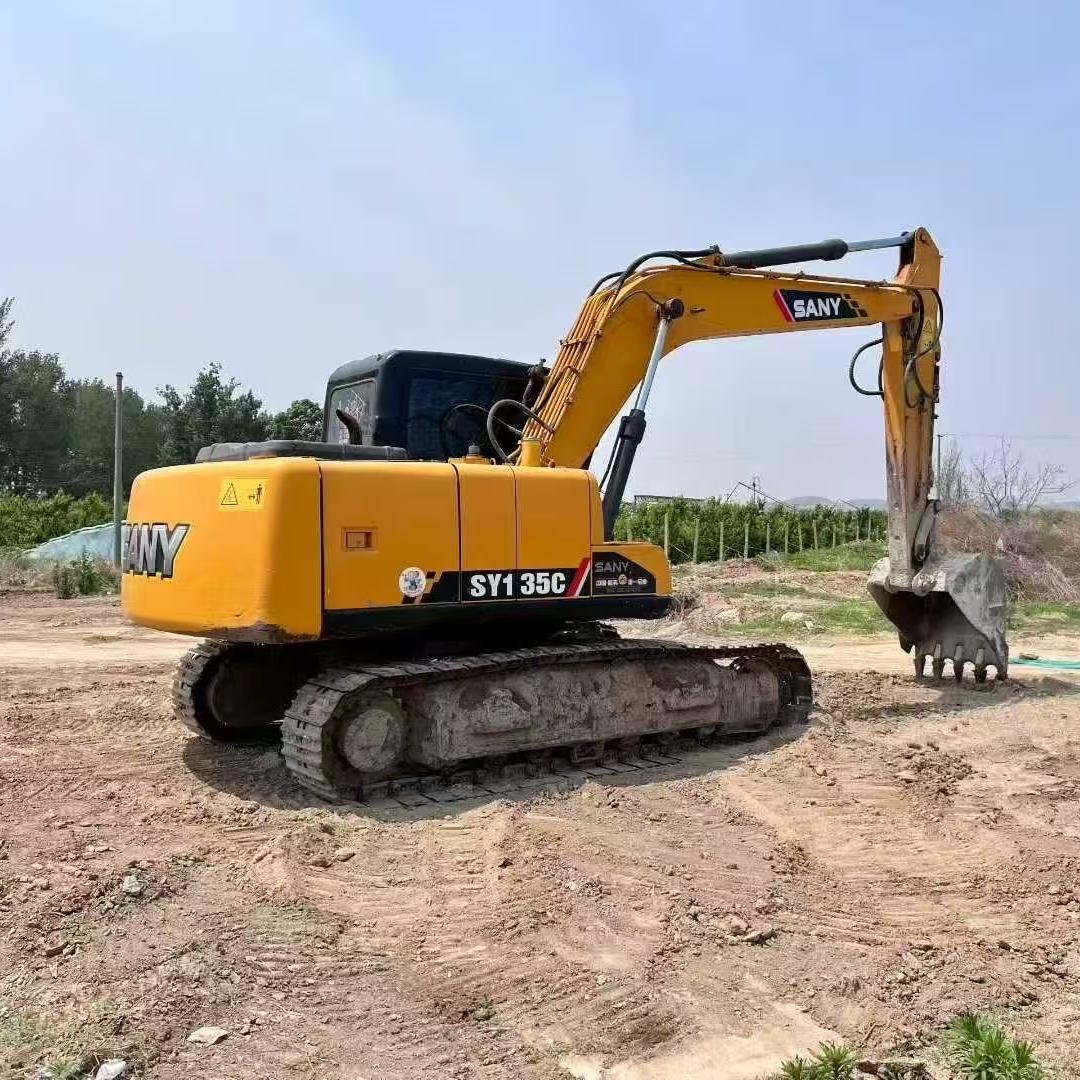

Excavator Detail Picture

Used Excavator Shipment Information

The second-hand construction machinery equipment we utilize can be transported via Roll-on/Roll-off vessels (Ro-Ro ships), bulk carriers, and flat rack container ships. Reference images illustrating the loading process are attached for your review.

Maintenance

1.Engine oil needs to be replaced regularly, with a general replacement cycle of 500 hours.

2.Hydraulic oil should be replaced according to the prescribed maintenance cycle, which is 2,500 to 3,000 hours.

3.Timely addition of lubricating grease can effectively reduce the wear of each component and ensure smooth operation of all components.

4.Regularly clean or replace the air filter element and air filter to ensure that the engine sucks in clean air and improve fuel efficiency. In harsh working conditions such as heavy dust, the frequency of inspections should be increased.

5.Check the coolant level to keep the cooling system unobstructed and prevent overheating.

6.Clean the radiator. When an excavator is in operation, it generates a large amount of heat. The cleaning of the radiator is very important for maintaining the normal operation of the engine.

7. Tracks are important components of excavators. Appropriate track tension can extend the service life of tracks. Regularly inspect and adjust the tension of the tracks to ensure they are within a consistent standard range.

8.The transmission system is an important component of an excavator. Regular checks should be conducted on the transmission chain, gears and other parts, and severely worn components should be replaced in a timely manner.

Through the above daily maintenance measures, faults can be effectively prevented, the service life of excavators can be prolonged, and the safety and smooth progress of work can be ensured
